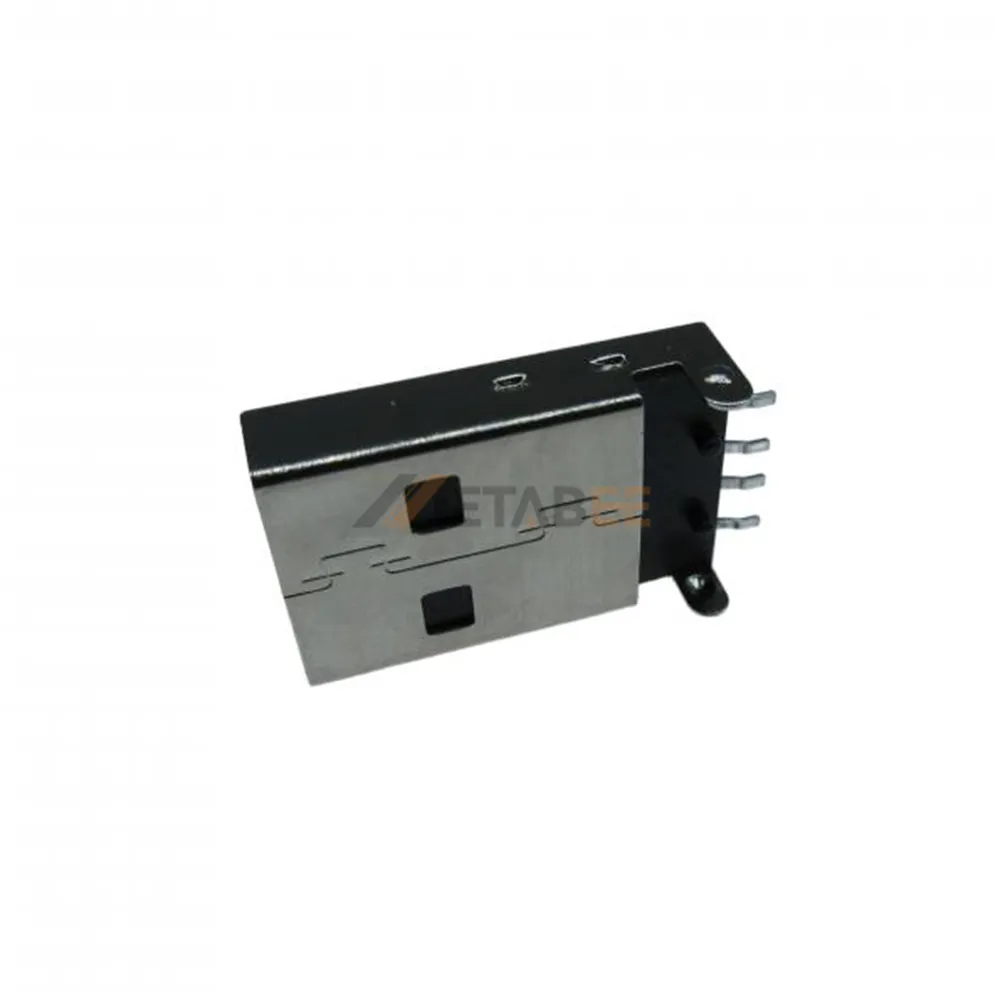

USB 2.0 Type A Male Connector, 4 Pin, Solder, R/A
Introduction:
The USB 2.0 Type A Male Connector is a high-performance, 4-pin plug engineered for reliable data synchronization and power delivery. Featuring a right-angle (R/A) mounting orientation, this single-port connector is specifically designed for PCB solder applications where vertical clearance is limited. Its low-profile design ensures a secure, horizontal interface, making it an ideal choice for compact consumer electronics, peripheral devices, and custom hardware interfaces.
Durability is at the core of this component’s design, featuring a rugged SPCC shell with Nickel plating to provide exceptional mechanical strength and corrosion resistance. The internal Brass contacts are Gold-plated to ensure maximum electrical conductivity and signal integrity over repeated mating cycles. Rated for a wide temperature range of -40°C to +85°C and carrying a UL94V-0 flame retardancy rating, this connector offers professional-grade stability for both industrial and commercial environments.
Key Features
- Right Angle Mounting: Space-saving R/A design for low-profile PCB layouts.
- Gold-Plated Brass Contacts: Delivers superior conductivity and prevents oxidation.
- Nickel-Plated SPCC Shell: Provides high durability and enhanced EMI shielding.
- Solder PCB Mount: 4-pin Through-Hole (THT) design for a secure mechanical bond.
- 1.5A Current Rating: Optimized for efficient power delivery and data transfer.
- Extreme Temperature Range: Reliable performance from -40°C up to +85°C.
Main Specifications:
General Information:
| Product No.: | YC-USB-AP-S-RA-SMT | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Plug | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | SPCC | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type A Male Connector:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
