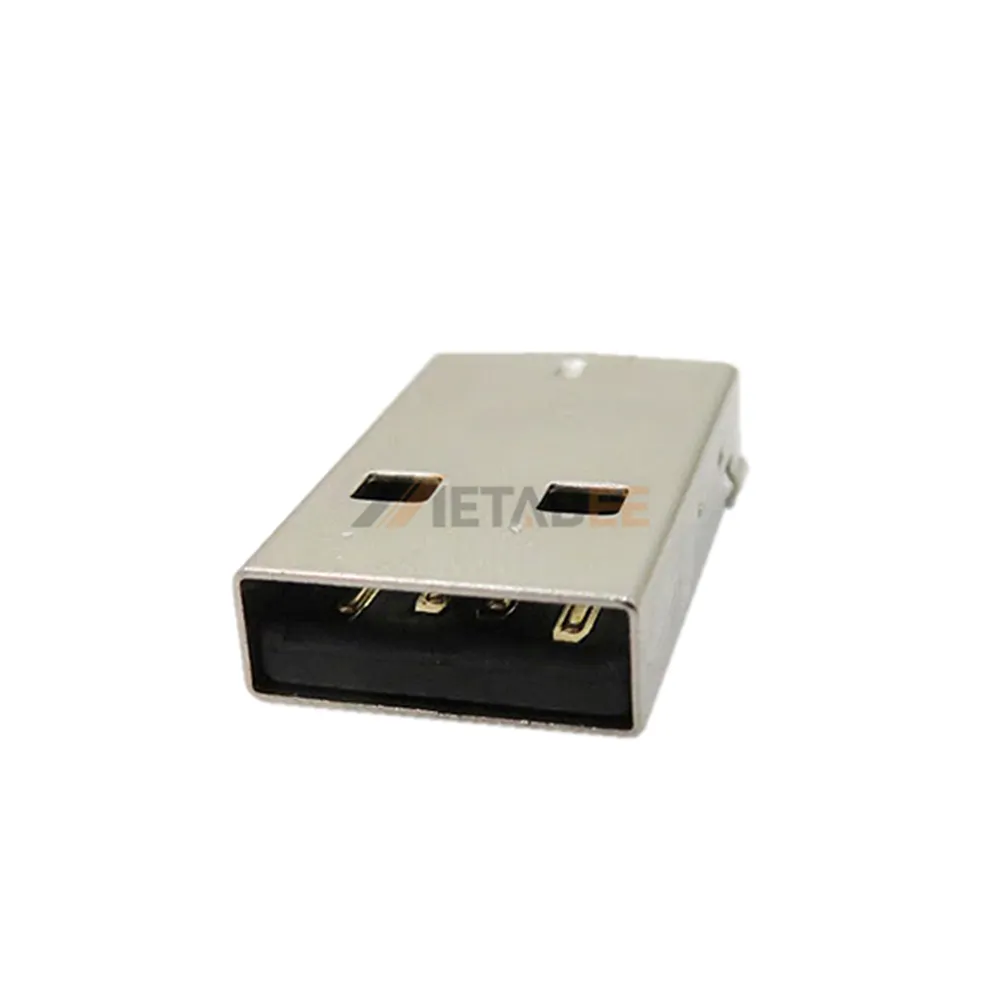

USB 2.0 Type A Plug, 4 Pin, Solder, Cable Type, Right Angle
Introduction:
The USB 2.0 type-A plug is a high-reliability, 4-pin male connector designed for high-performance data transmission and power delivery. Featuring a Right Angle mounting orientation, this single-port plug is specifically engineered for PCB solder applications where a low-profile, horizontal connection is required. Its compact design makes it an ideal choice for peripheral devices, custom cable assemblies, and space-sensitive electronic hardware.
Constructed for long-term durability, the connector utilizes a rugged SPCC shell with Nickel plating to provide excellent mechanical strength and resistance to environmental wear. The internal contacts are crafted from high-quality Brass with Gold plating, ensuring superior conductivity and consistent signal integrity. With an operating temperature range of -40°C to +85°C and a UL94V-0 flame retardancy rating, this connector offers a safe and stable solution for both industrial and consumer-grade environments.
Key Features
- Right Angle Orientation: Ideal for low-profile PCB designs and horizontal connections.
- Gold-Plated Brass Contacts: Ensures maximum conductivity and prevents signal oxidation.
- Nickel-Plated SPCC Shell: Provides high mechanical durability and corrosion resistance.
- Solder PCB Mount: Secure 4-pin through-hole mounting for stable electrical performance.
- Industrial Temperature Range: Reliable operation from -40°C up to +85°C.
- Safety Certified: Meets UL94V-0 standards for superior fire and heat resistance.
Main Specifications:
General Information:
| Product No.: | YC-USB-AP-S-RA | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Plug | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | SPCC | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 1A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type A Plug:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
