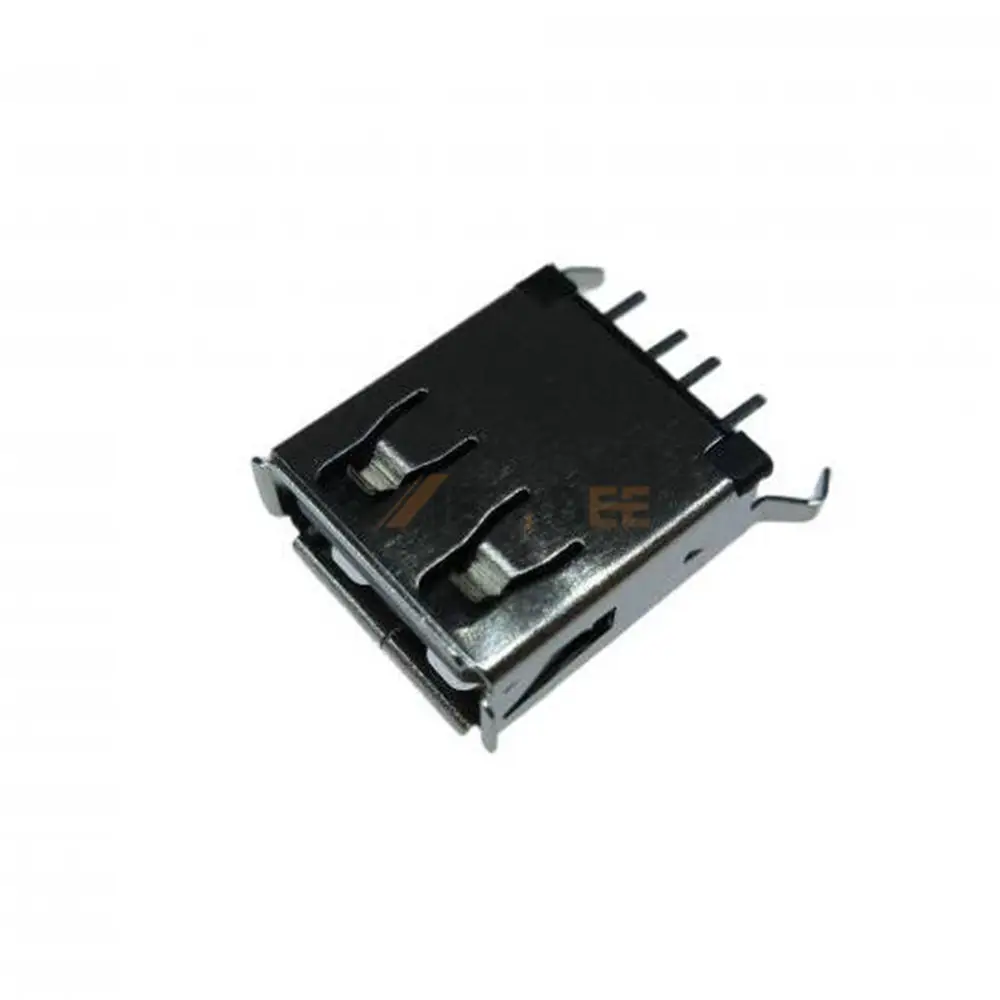

Vertical USB 2.0 4 Pin Female Connector, Type A, PCB THT
Introduction:
This high-performance vertical USB 2.0 Type A female connector is designed for space-saving efficiency on printed circuit boards. Featuring a 90-degree vertical mounting orientation, this single-port receptacle allows for top-entry cable connections, making it ideal for compact electronic devices, industrial controllers, and peripheral interfaces. Its robust PCB Through-Hole (THT) design ensures a secure mechanical bond and stable electrical performance for high-traffic data transfer applications.
Engineered for durability in demanding environments, the connector features gold-plated brass contacts to prevent corrosion and maintain superior signal integrity. The nickel-plated brass shell provides excellent EMI shielding and structural integrity. With a wide operating temperature range from -40°C to 85°C and a UL94V-0 flame retardant rating, this connector is a reliable choice for both consumer electronics and rugged industrial hardware.
Key Features
- Space-Saving Vertical Design: 180-degree vertical orientation for efficient top-entry PCB layouts.
- High-Speed Data Transfer: Fully compliant with USB 2.0 standards for reliable 4-pin connectivity.
- Superior Conductivity: Gold-plated brass contacts ensure low resistance and long-term durability.
- Robust Construction: Nickel-plated brass shell offers excellent protection and corrosion resistance.
- Industrial Grade: Operates reliably in extreme temperatures ranging from -40°C to +85°C.
- Enhanced Safety: Features a UL94V-0 flame retardancy rating for maximum circuit protection.
Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-VT-HT | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical USB 2.0 4 Pin Female Connector:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
Factory pricing and exceptional product quality. Get a free quote now!
