Vertical USB-A 2.0 Jack, 4 Pin, Thru-Hole, Reverse Type
Introduction:
Presenting the Vertical USB-A 2.0 Jack, a robust and versatile 4-pin connector designed for seamless integration into a wide array of electronic applications. This single-port Type A receptacle features a unique reverse type design, perfect for specialized layouts, and is engineered for reliable PCB Thru-Hole mounting with a right-angle orientation. Its vertical configuration offers flexibility, making it an excellent choice for optimizing board space and design aesthetics.
Durability and superior performance are at the core of this connector’s design. The housing is constructed from high-grade stainless steel with nickel plating, providing exceptional strength and corrosion resistance. The contacts, crafted from brass and finished with gold plating, ensure excellent electrical conductivity and signal integrity, critical for consistent data transfer. With a rated current of 2A and a voltage rating of 30VAC, this jack is built to handle stable power delivery. It also complies with the UL94V-0 flammability standard, guaranteeing safety, and maintains optimal performance across a broad operating temperature range of -40°C to 85°C.
This USB-A 2.0 jack is an ideal solution for engineers and designers seeking a high-performance, durable, and space-saving connector. Its specialized “Reverse Type” feature further expands its applicability, making it suitable for compact devices, industrial equipment, and consumer electronics that demand both reliability and innovative design.
Key Features
- Interface Type: USB-A 2.0 Receptacle (Jack)
- Design & Mounting: Vertical, Right-Angle, PCB Thru-Hole, Reverse Type
- Pin Configuration: 4-Pin, Single Port
- Material & Plating: Stainless Steel Housing (Nickel Plated), Brass Contacts (Gold Plated)
- Electrical Ratings: 2A Current, 30VAC Voltage
- Environmental Durability: UL94V-0 Flammability Rating, -40°C to 85°C Operating Temperature

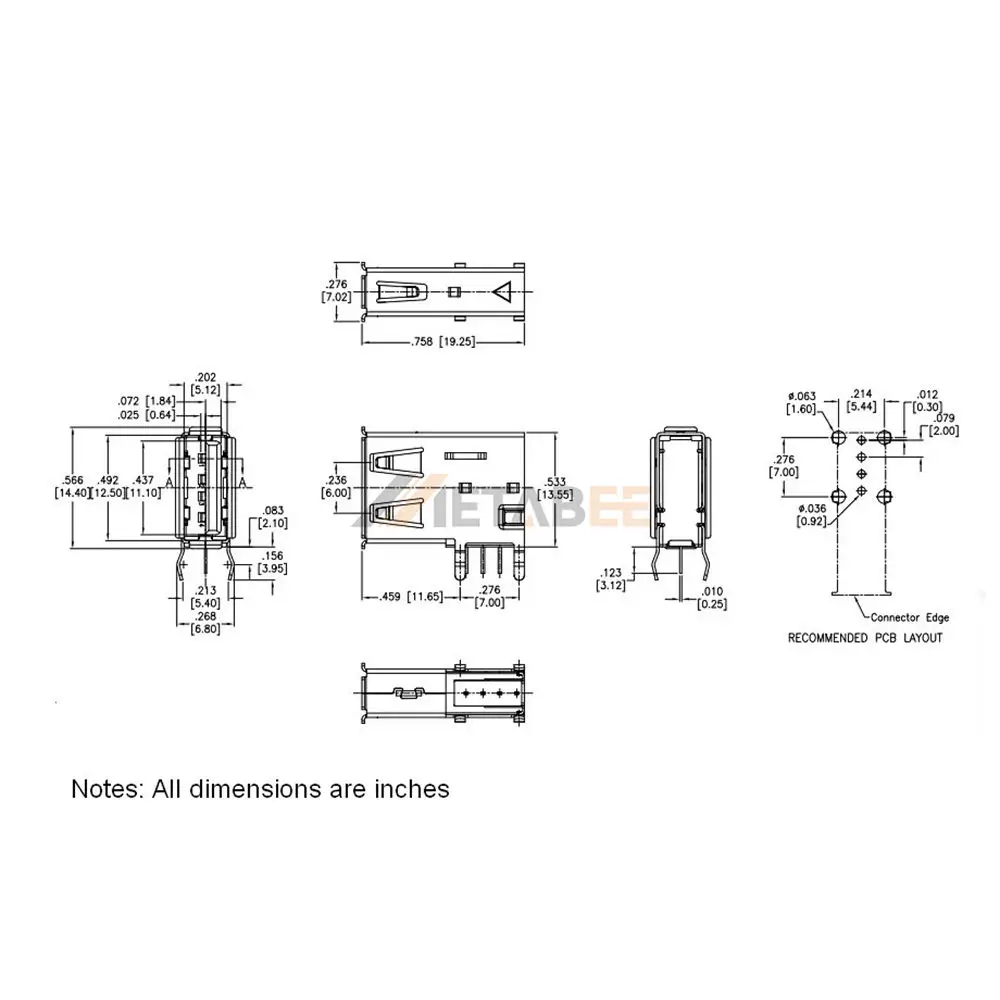

Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RU-RT-CS1-HF-30 | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 2A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical USB-A 2.0 Jack:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
