Vertical USB-A 2.0 Female Connector, 4 Pin, PCB Thru-Hole, Reverse Type
Introduction:
This single-port, 4-pin Type A receptacle features a distinctive reverse type design, perfect for specialized board layouts, and is optimized for secure PCB Thru-Hole mounting with a right-angle orientation. Its vertical configuration offers enhanced design flexibility, allowing for efficient space utilization on printed circuit boards.
Constructed for exceptional durability and conductivity, this connector boasts a robust stainless steel housing with nickel plating, providing superior protection against corrosion and wear. The contacts are meticulously crafted from high-quality brass and finished with a gold plating, ensuring excellent electrical performance and signal integrity critical for consistent operation. With a solid electrical rating of 2A current and 30VAC voltage, it reliably supports stable power and data flow. Furthermore, it meets the UL94V-0 flammability standard for safety and operates flawlessly across a wide temperature range from -40°C to 85°C.
This USB-A 2.0 female connector is an ideal choice for engineers and manufacturers seeking a resilient, space-saving, and high-performance component. Its unique “Reverse Type” feature significantly broadens its applicability, making it suitable for compact consumer electronics, industrial control systems, and various devices where reliability and innovative design are paramount.
Key Features
- Interface Type: USB-A 2.0 Female (Receptacle)
- Design & Mounting: Vertical, Right-Angle, PCB Thru-Hole, Reverse Type
- Pin Configuration: 4-Pin, Single Port
- Material & Plating: Stainless Steel Housing (Nickel Plated), Brass Contacts (Gold Plated)
- Electrical Ratings: 2A Current, 30VAC Voltage
- Environmental Durability: UL94V-0 Flammability Rating, -40°C to 85°C Operating Temperature

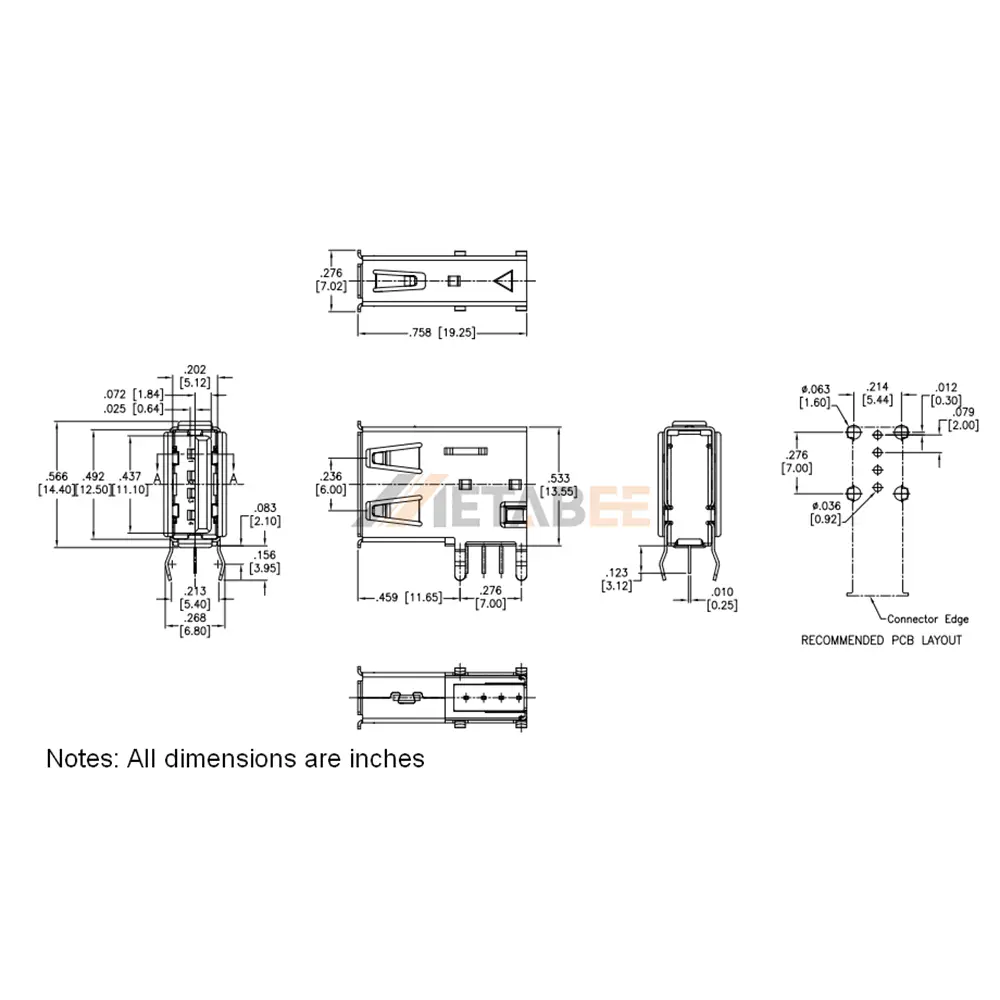

Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RU-RT-CS1-HF-WT-30 | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 2A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical USB-A 2.0 Female Connector:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
