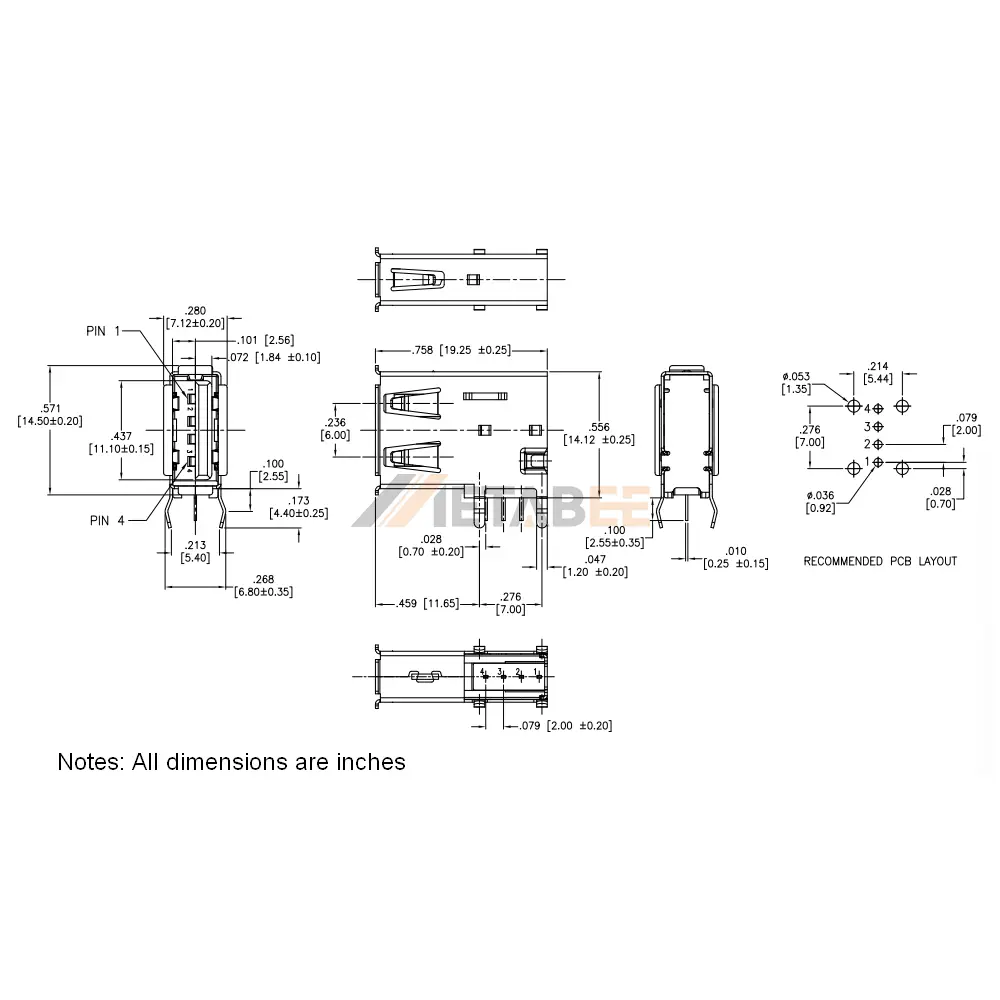

Vertical USB 2.0 Type A Socket, 4 Pin, PCB Thru-Hole
Introduction:
Upgrade your PCB design with the premium vertical USB 2.0 Type A socket, a high-performance 4-pin receptacle engineered for reliable data transfer and power delivery. This connector features a right-angle mounting orientation and is designed for through-hole PCB mounting, ensuring a secure and stable mechanical bond to the circuit board. Commonly used in computer peripherals, industrial controls, and consumer electronics, this single-port Type A socket provides a familiar and durable interface for standard USB connections.
Constructed with a brass shell plated in nickel and brass contacts finished with gold plating, this connector offers superior conductivity and excellent resistance to corrosion and wear. It supports a standard USB 2.0 data rate and is rated for 2A of current at 30VAC, making it suitable for both signal and low-power applications. Built to last, it operates reliably in extreme temperatures ranging from -40°C to +85°C and complies with the UL94V-0 flammability standard, guaranteeing safety and durability in high-performance environments.
Key Features
- Interface & Design: Standard USB 2.0 Type A, 4-pin receptacle (female) with a single-port configuration.
- Mounting Style: Vertical right-angle orientation for PCB thru-hole mounting, providing robust mechanical retention.
- Durable Construction: High-quality brass shell with nickel plating and gold-plated brass contacts for enhanced signal integrity and lifespan.
- Electrical Ratings: Reliable performance with a 2A current rating and 30VAC voltage rating.
- Environmental Tolerance: Wide operating temperature range from -40°C to +85°C for use in diverse conditions.
- Safety Compliance: UL94V-0 flame-retardant rating, ensuring high resistance to ignition and safety in electronic assemblies.
Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RU-RT-30 | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 2A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical USB 2.0 Type A Socket:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
