Vertical USB 2.0 Type A Receptacle, 4 Pin, Thru-Hole, Reverse Type
Introduction:
The vertical USB 2.0 Type A receptacle is designed to provide reliable data and power connectivity for a wide range of electronic devices. Featuring a single-port USB Type-A interface with a 4-pin configuration, this connector supports standard USB 2.0 communication and stable power transmission. Its vertical reverse-type structure and right-angle mounting orientation allow efficient PCB layout and convenient cable insertion in compact electronic designs such as industrial equipment, embedded systems, and consumer devices.
This connector is built with a stainless steel shell with nickel plating, providing strong mechanical protection and excellent corrosion resistance. The brass contacts with gold plating ensure superior electrical conductivity, low contact resistance, and improved durability over repeated mating cycles. The through-hole PCB mounting design enhances solder stability and mechanical retention, making it suitable for high-reliability applications.
Rated at 2A current and 30VAC voltage, the connector delivers dependable power and signal performance. It also meets UL94V-0 flammability standards for improved safety in electronic assemblies. With a wide operating temperature range from −40°C to +85°C, the connector is capable of maintaining reliable performance in demanding industrial and environmental conditions. These specifications are consistent with typical USB connector electrical and environmental ratings used in electronic equipment.
Key Features
- USB 2.0 Type-A Female Receptacle, 4-pin single-port design
- Vertical reverse-type structure with right-angle PCB orientation
- Through-hole PCB mounting for strong mechanical retention
- Stainless steel shell with nickel plating for durability and corrosion resistance
- Gold-plated brass contacts ensure stable conductivity and long service life
- 2A current rating, 30VAC voltage, −40°C to +85°C operating temperature for reliable performance

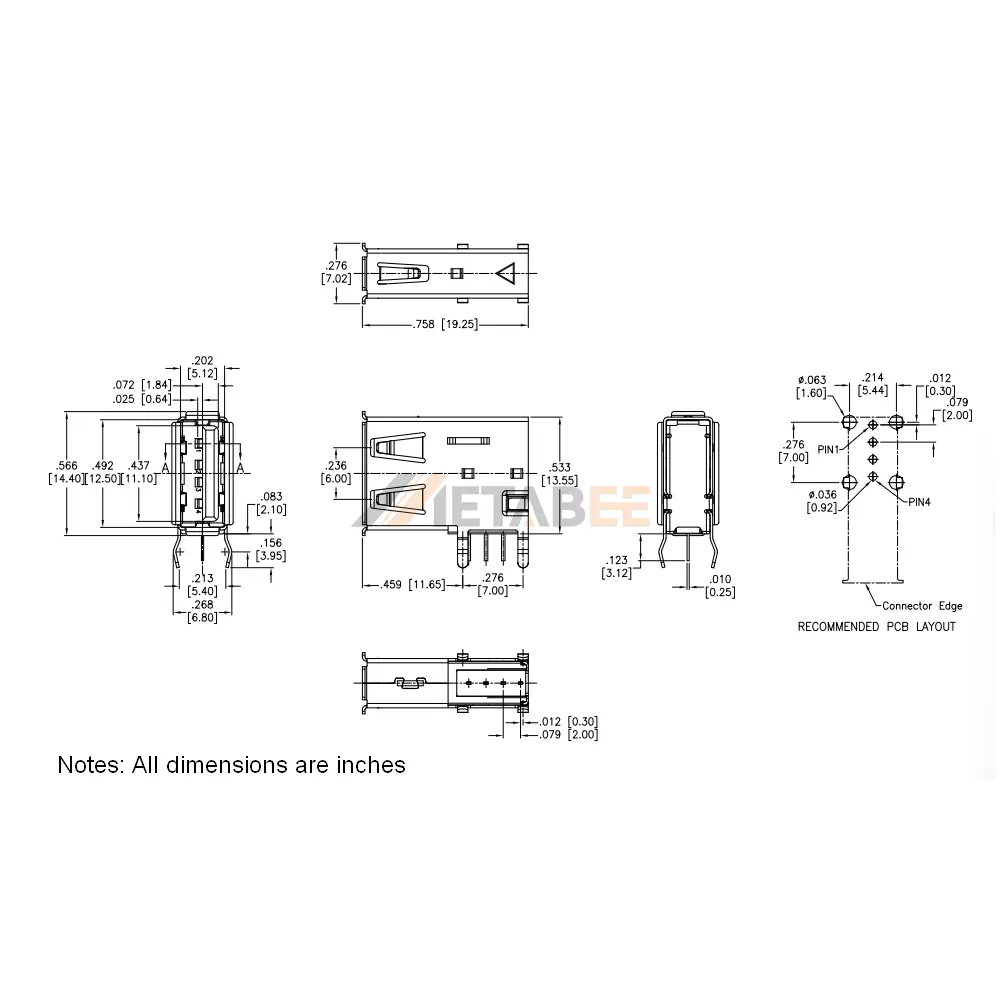

Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RU-RT-CS1-HF | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 2A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical USB 2.0 Type A Receptacle:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
