Vertical USB 2.0 Type A Jack, 4 Pin, PCB Mount, THT
Introduction:
This vertical USB 2.0 Type A receptacle is engineered for high-reliability data and power transmission in a space-saving upright configuration. Featuring a 4-pin single port design, this connector is specifically built for PCB mounting via Through-Hole Technology (THT). Its vertical orientation makes it an ideal solution for compact electronic devices where horizontal board space is limited but height is available.
Constructed with high-quality nickel-plated copper alloy housing and gold-plated contacts, this jack ensures superior conductivity and long-term corrosion resistance. It is designed to withstand demanding environments, boasting an operating temperature range from -40°C to 85°C and a UL94V-0 flame retardant rating for maximum safety and durability in industrial or consumer electronics.
Key Features
- Type A Vertical Design: Space-efficient 180-degree upright orientation for PCB layouts.
- High-Speed USB 2.0: Standard 4-pin configuration supporting reliable data transfer.
- Superior Plating: Gold-plated contacts and nickel-plated shell for enhanced signal integrity.
- Robust Electricals: Rated for 1.5A current and 30VAC voltage to suit diverse power needs.
- Industrial Durability: Operates effectively in extreme temperatures (-40°C to +85°C).
- Certified Safety: UL94V-0-rated housing ensures high-level flame retardancy.

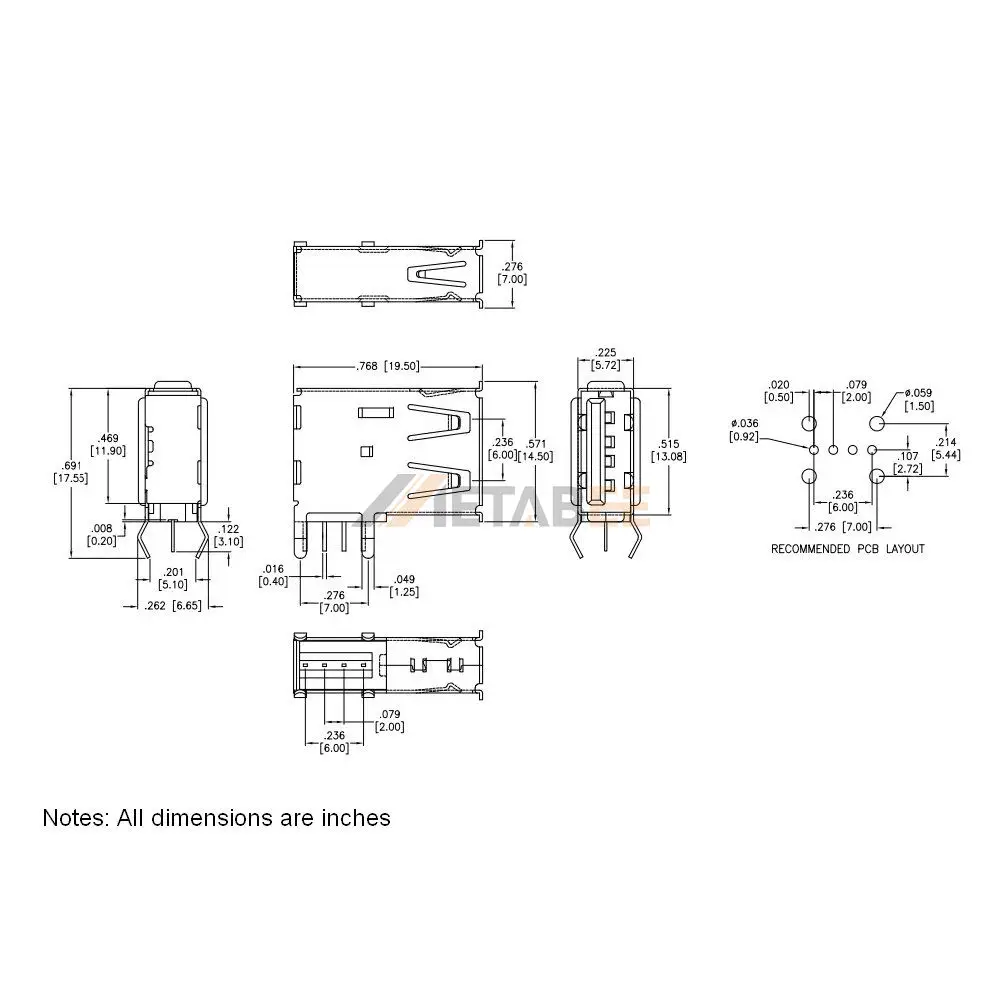

Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RU-S4 | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Copper Alloy | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 1.5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical USB 2.0 Type A Jack:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
