Vertical USB 2.0 Type A 4-Pin Female Connector, THM, Reverse Type
Introduction:
The vertical USB 2.0 Type-A connector is engineered for reliable, space-efficient PCB integration across a wide range of electronic applications. Designed with a single-port Type A interface, this receptacle connector features a vertical mounting orientation and through-hole mount (THM) configuration, ensuring strong mechanical stability and secure soldering on printed circuit boards. Its reverse-type design supports specific layout requirements, making it ideal for compact and custom hardware.
Constructed with a brass shell and contacts, this connector delivers excellent durability and conductivity. The nickel-plated shell enhances corrosion resistance, while the gold-plated contacts ensure superior signal integrity and long-term performance. Rated for 2A current and 30VAC, it meets the requirements of standard USB 2.0 applications. With a UL94V-0 flame rating and an operating temperature range of -40°C to +85°C, this connector is built for reliability in both consumer and industrial environments.
Key Features
- USB 2.0 Type A, 4-pin female (receptacle) design
- Vertical orientation with PCB through-hole mounting (THM)
- Reverse type configuration for flexible PCB layout
- Brass shell with nickel plating for enhanced durability
- Gold-plated contacts for stable conductivity and signal performance
- Rated 2A, 30VAC; UL94V-0; operating range -40°C to +85°C

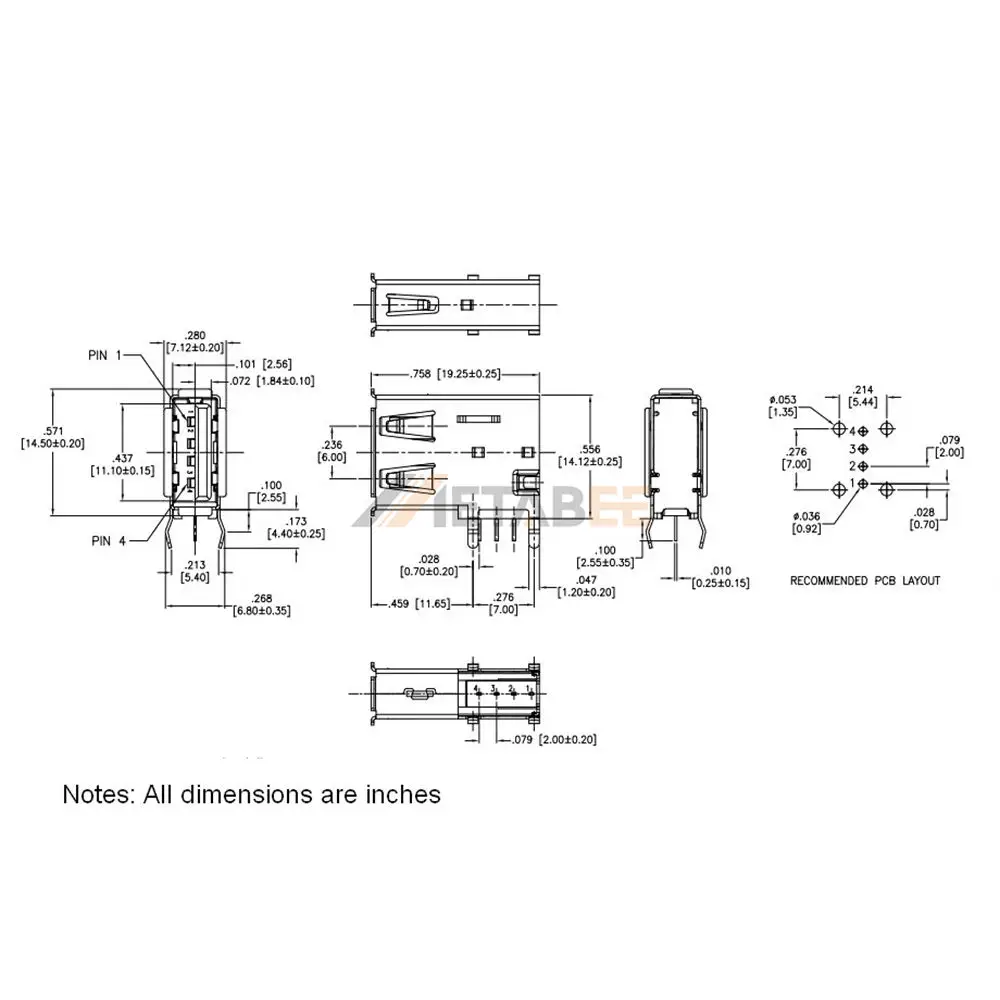

Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RU-RT-WT-30 | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Brass | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 2A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical USB 2.0 Type A 4-Pin Female Connector:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
