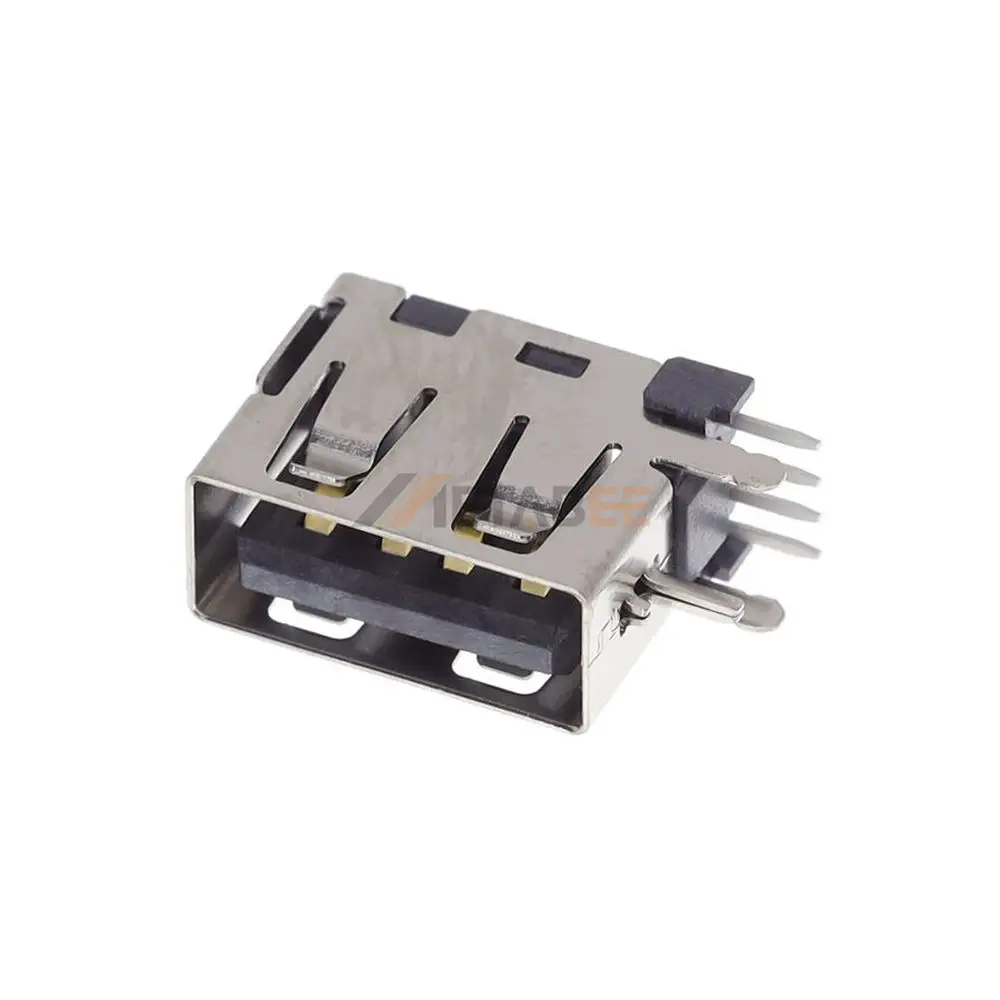

Vertical USB 2.0 Jack, Type A, 4 Pin, PCB Mount, Thru-Hole
Introduction:
The vertical USB 2.0 Type-A connector is engineered for reliable data transmission and power delivery in PCB-based electronic systems. Designed with a standard Type-A interface, this single-port connector supports up to 480 Mbps of high-speed data transfer while maintaining a stable 5V power output, ensuring compatibility with a wide range of industrial and consumer devices. Its vertical (top-entry) orientation and through-hole PCB mounting enhance mechanical stability, making it ideal for applications requiring robust board-level connections.
Constructed with a SUS304 stainless steel shell and nickel plating, the connector delivers excellent corrosion resistance and structural durability. The contact terminals are made from high-quality copper alloy with gold plating, ensuring superior conductivity, low contact resistance, and long mating cycles. Rated at 3A current and 50V DC, this connector exceeds standard USB 2.0 power requirements, providing enhanced performance for high-current applications. With a UL94V-0 flame-retardant rating and an operating temperature range of -40°C to +85°C, it is well-suited for harsh environments and industrial-grade equipment
Key Features
- Standard USB 2.0 Type-A, 4-pin receptacle, single port
- Vertical orientation, through-hole PCB mount for secure installation
- SUS304 shell with nickel plating for durability and corrosion resistance
- Gold-plated copper alloy contacts for high conductivity and reliability
- Rated 3A current, 50V DC voltage for enhanced power handling
- UL94V-0 flame resistance, operating range -40°C to +85°C for industrial use
Main Specifications:
General Information:
| Product No.: | YC-USB-A-S-RU-TH-CS9-HC-NF-HT-TR | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-A | |
| Brand: | Metabee | |
| Number of Contacts: | 4 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru-Hole | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | PBT |
Electrical Performance:
| Rated Current: | 3A | |
| Rated Voltage: | 5VDC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this Vertical USB 2.0 Jack, Type A, 4 Pin:
USB 2.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play design make them among the most ubiquitous connectors in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
Factory pricing and exceptional product quality. Get a free quote now!
