Introduction:
Top-entry vertical integration into the PCB relies on secure through-hole mounting for this 10/100 Base-T vertical RJ45 with magnetics. Industrial environments benefit from its extreme resilience, as the module operates flawlessly across a wide -40°C to 85°C temperature range. A robust board lock ensures strict mechanical stability during the soldering process to prevent movement. To block electromagnetic interference effectively, a nickel-plated copper alloy shield completely encases the black hi-temp thermoplastic housing. Visual link updates are provided by built-in green and yellow LEDs. Furthermore, gold-plated phosphor bronze contacts maintain electrical resistance below 30mΩ to guarantee long-term signal clarity.
Key Features
- Vertical Top Entry: Optimizes space on high-density circuit boards.
- Through Hole Mounting: Ensures a strong mechanical bond to PCB.
- Industrial Temperature Range: Operates safely between -40°C and 85°C.
- Copper Alloy Shielding: Blocks electromagnetic interference for clear signals.
- Integrated Status LEDs: Green and yellow lights show link activity.
Main Specifications:
General Information:
| Product No.: | MTJ-88FX1-FSN-LH-M5D1-HT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

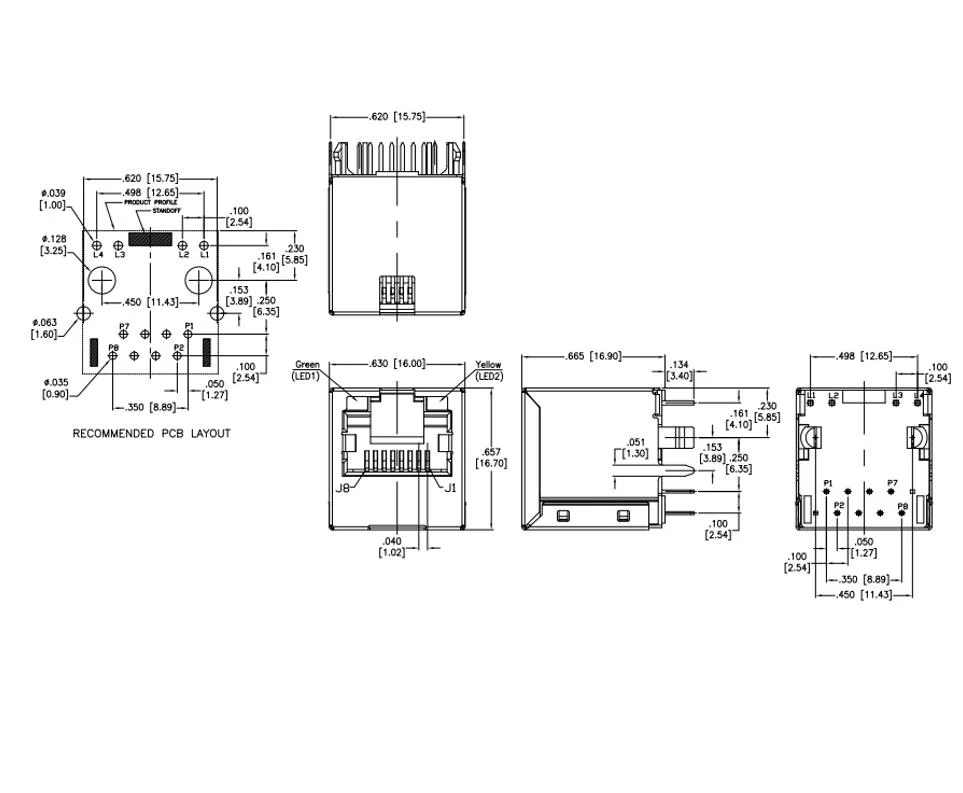

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
