Introduction:
High-speed Gigabit performance is standard with the Integrated Magnetic RJ45, which facilitates reliable 1G Base-T data rates in complex network environments. Severe thermal conditions between -40°C and 85°C cause no operational failure due to the resilient black hi-temp thermoplastic housing. Secure vertical integration on the PCB depends on a robust surface mount design and a built-in board lock for mechanical stability. A nickel-plated stainless steel shield provides full protection to block electromagnetic interference effectively during continuous operation. Visual link status updates rely on integrated green and yellow LEDs positioned in the tab-up profile. Furthermore, gold-plated copper alloy contacts strictly maintain low electrical resistance in this integrated magnetic RJ45.
Key Features
- 1G Base-T Performance: Facilitates reliable high-speed Gigabit Ethernet data transmission.
- Industrial Temperature Range: Operates flawlessly in environments between -40°C and 85°C.
- Stainless Steel Shielding: Nickel-plated housing blocks severe electromagnetic interference.
- Vertical SMT Mounting: Optimizes board space with secure surface mount termination.
- Integrated Status LEDs: Green and yellow lights track network activity clearly.
Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FS-TSMT-P-LH-M463Y-HT-WOT-KT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless Steel, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

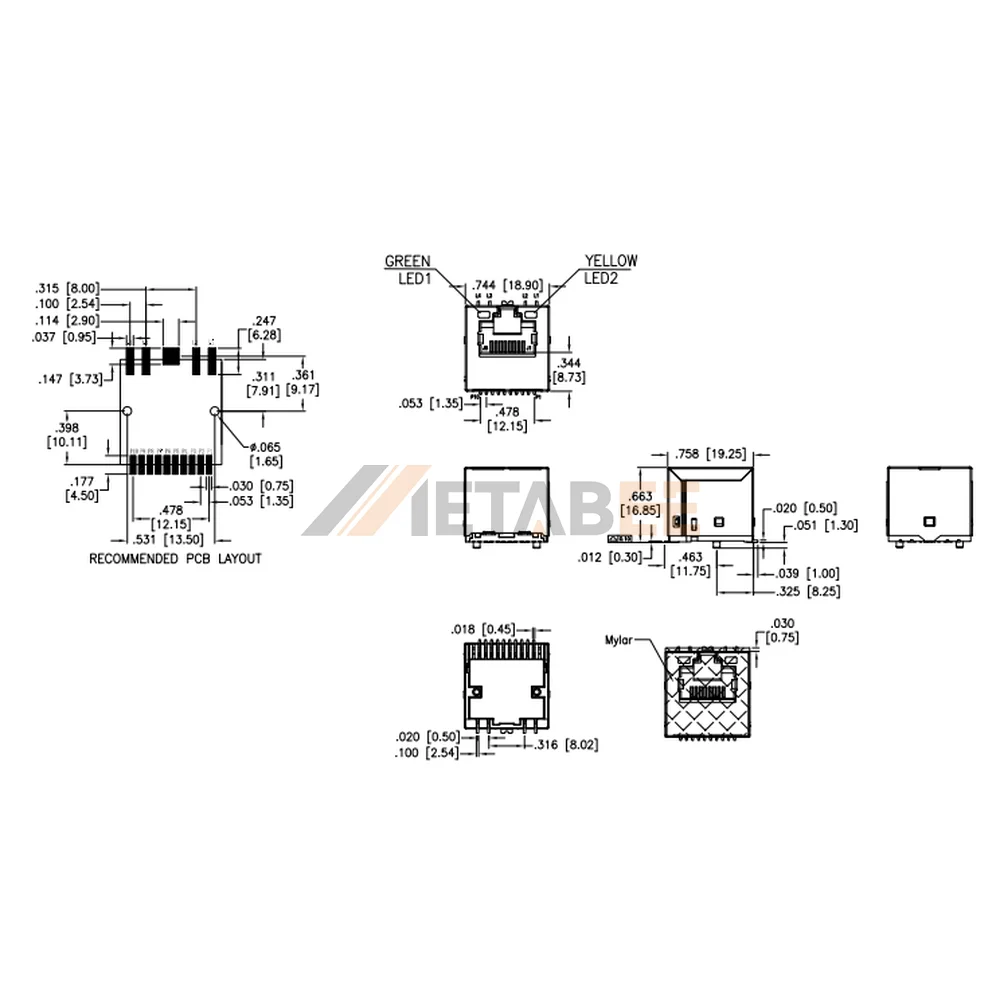

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
