Introduction:
Consistent 100Base-T network speeds characterize the RJ45 Socket With Transformer, which integrates essential signal conditioning for high-performance Ethernet systems. Secure board integration relies on through-hole mounting combined with integrated solder retention and board locks to ensure strict mechanical stability. A nickel-plated brass shield provides full STP protection to eliminate electromagnetic interference effectively during continuous operation. The black thermoplastic housing maintains its integrity across the standard 0°C to 70°C commercial temperature range. Visual link status updates depend on built-in yellow and green LEDs located in the tab-up profile. Furthermore, gold-plated copper alloy contacts strictly maintain electrical resistance below 20mΩ for this RJ45 socket with transformer.
Key Features
- 10/100 Base-T Performance: Delivers reliable Fast Ethernet data transmission speeds.
- Vertical Top Entry: Optimizes board space on high-density circuit boards.
- Full STP Shielding: Nickel-plated brass housing blocks signal interference effectively.
- Secure THT Mounting: Board locks and solder retention guarantee stability.
- Integrated Status LEDs: Yellow and green lights show link activity.

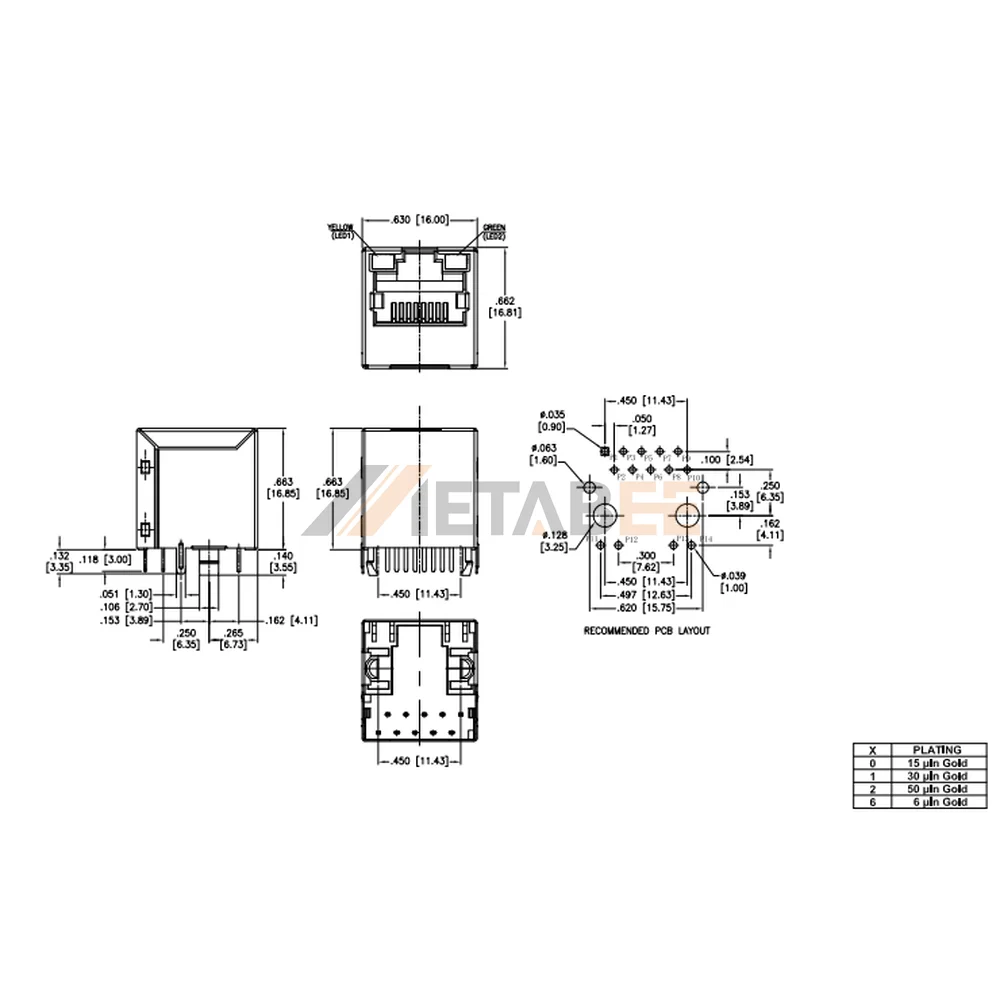

Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FSN-HP-LG-M197C | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
