Introduction:
Fast Ethernet networks achieve reliable connectivity through the Ethernet RJ45 with Transformer, supporting standard 10/100 Base-T speeds. A full nickel-plated copper alloy shield provides superior protection against electromagnetic interference during continuous data transmission. Vertical through-hole mounting saves valuable PCB space while ensuring a secure mechanical bond through integrated board locks and solder retention features. Built-in yellow and green LEDs deliver immediate visual feedback within the tab-up configuration of this Ethernet RJ45 with transformer. Gold-plated copper alloy contacts strictly maintain electrical resistance below 20mΩ across the 0°C to 70°C commercial temperature range.
Key Features
- 10/100 Base-T Performance: Delivers reliable Fast Ethernet data transmission speeds.
- Vertical THT Mounting: Optimizes board space with secure top-entry design.
- Full Metal Shielding: Nickel-plated housing blocks severe electromagnetic interference.
- Secure PCB Integration: Board locks and solder retention ensure stability.
- Low Contact Resistance: Gold plating maintains strictly under 20mΩ resistance.
Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FSN-LG-STP-M36 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

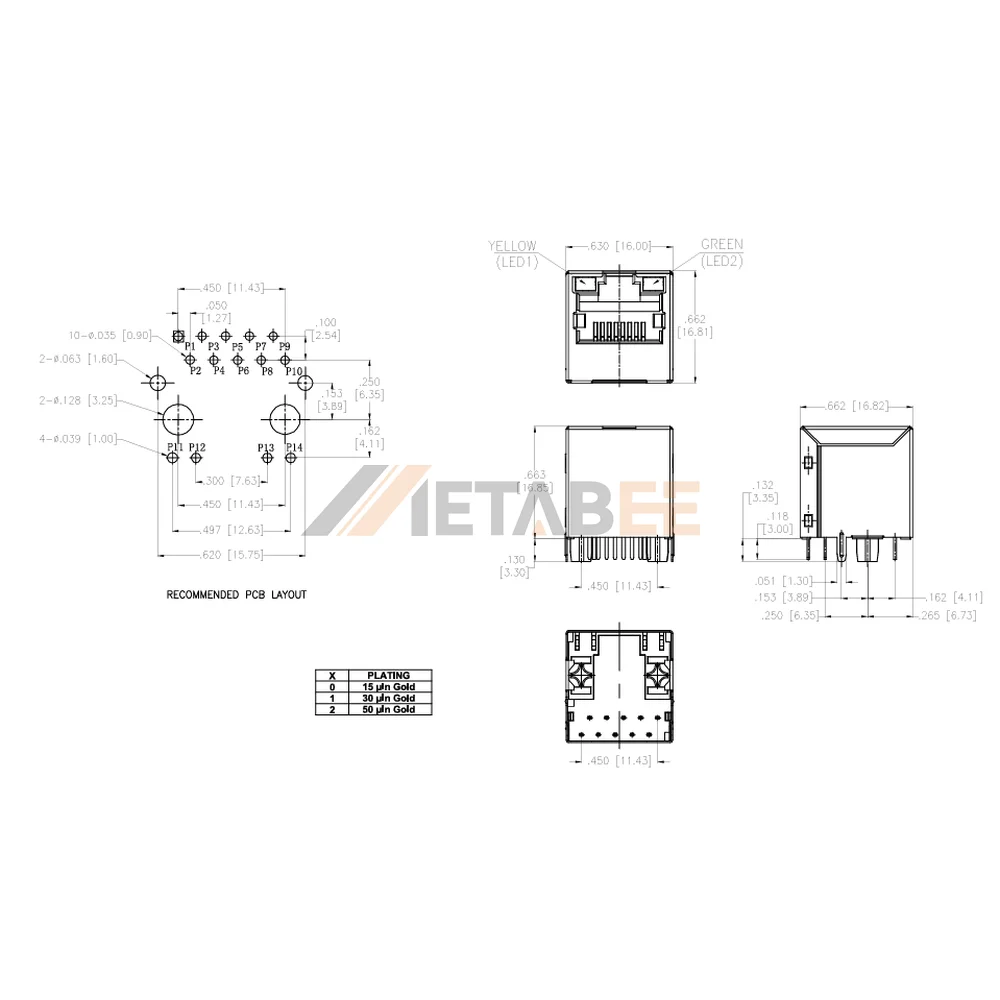

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
