Introduction:
Efficient data transmission is maintained by the RJ45 jack with transformer, specifically designed with built-in lightning protection to safeguard sensitive internal components against power surges. Robust stainless steel shielding with a pre-soldering finish provides a complete enclosure to reject severe electromagnetic interference for standard 10/100 Base-T networks. Integrated green/orange and yellow LEDs offer immediate visual status monitoring within the tab-up profile of this RJ45 jack with transformer. Space-saving vertical integration into the PCB relies on secure through-hole mounting and a built-in board lock for strict mechanical stability. Finally, gold-plated phosphor bronze contacts ensure low resistance and long-term signal integrity across the commercial temperature range.
Key Features
- Lightning Protection: Safeguards internal components against high-voltage surges and lightning.
- 10/100 Base-T Speed: Facilitates reliable Fast Ethernet data transmission rates flawlessly.
- Full Metal Shielding: Pre-soldered stainless steel housing blocks electromagnetic interference effectively.
- Vertical THT Mounting: Optimizes board space with secure top-entry through-hole design.
- Multi-color Status LEDs: Green/orange and yellow lights provide clear network feedback.

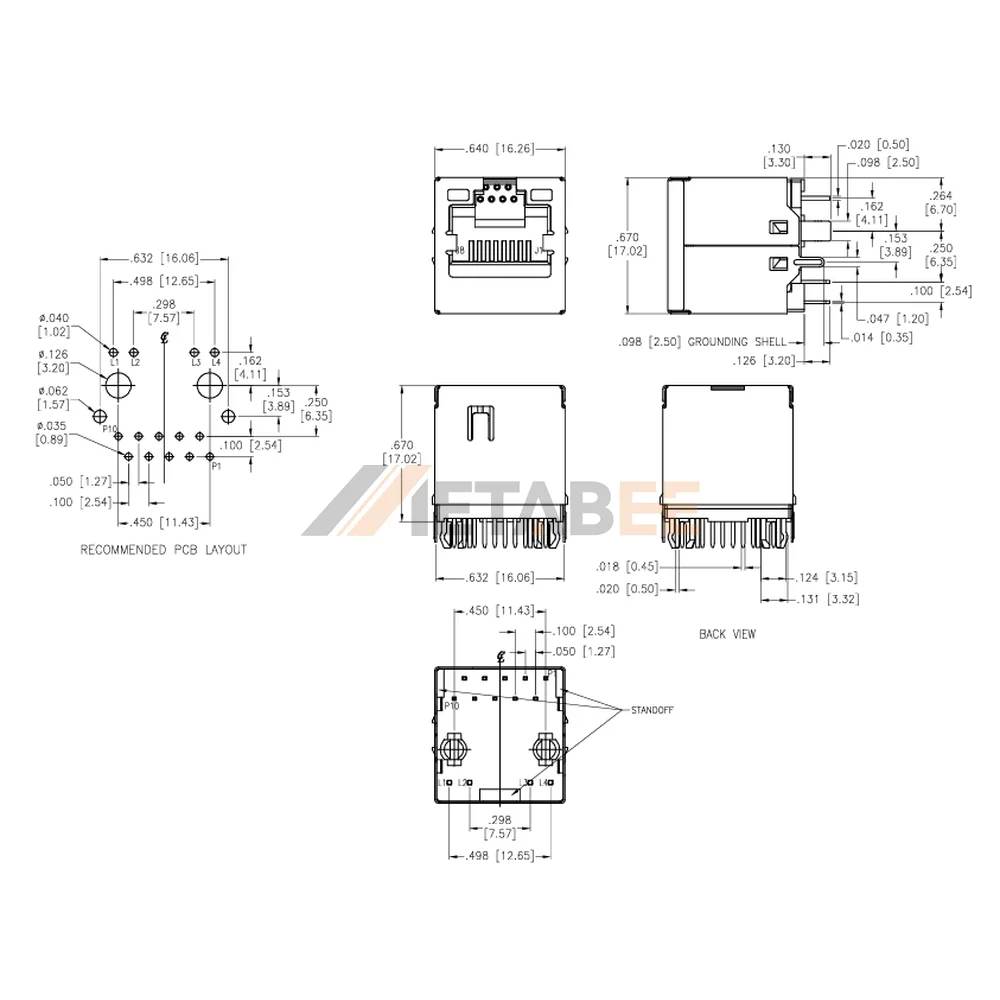

Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FSN-L29-M371Y | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green/Orange, Right: Yellow |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless Steel, Pre-Soldering |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
