Introduction:
Industrial network systems benefit from the reliable performance of the RJ45 Vertical Jack with Magnetics, which supports consistent 100Base-T Ethernet speeds. Extreme thermal environments between -40°C and 85°C cause no operational failure thanks to the durable black thermoplastic housing. Vertical through-hole mounting optimizes valuable board space while ensuring a secure mechanical bond through the integrated board lock. To block electromagnetic interference effectively, a nickel-plated brass shield provides complete STP protection. Minimal visual disruption is achieved by the streamlined no LED configuration. Gold-plated copper alloy contacts strictly maintain electrical resistance below 20mΩ in this RJ45 vertical jack with magnetics to guarantee long-term signal clarity.
Key Features
- 100 Base-T Performance: Facilitates reliable Fast Ethernet data transmission rates.
- Industrial Temperature Range: Operates flawlessly in environments between -40°C and 85°C.
- Vertical THT Mounting: Top-entry design saves valuable PCB real estate.
- Full Brass Shielding: Nickel-plated housing blocks severe electromagnetic interference.
- Low Contact Resistance: Gold-plated alloy ensures integrity under 20 mΩ.

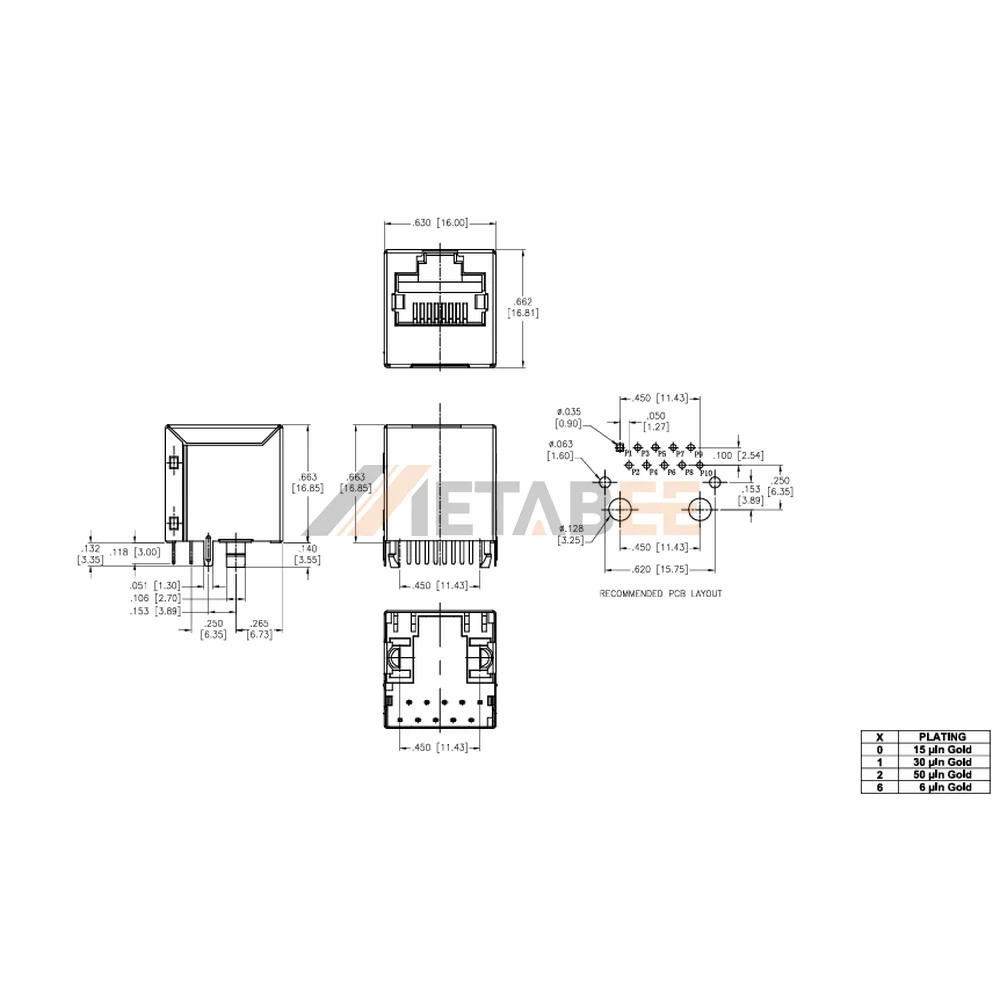

Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FSN-HP-M197C | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
