Introduction:

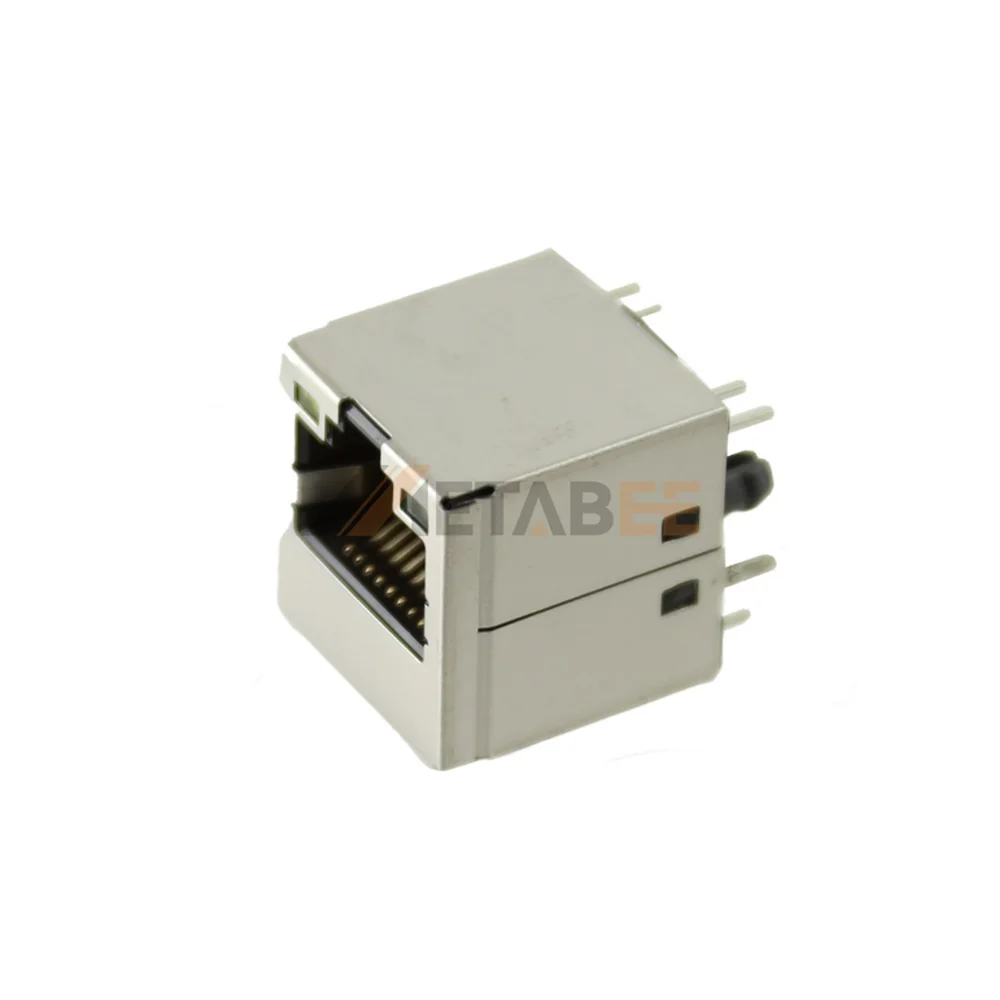

Exceptional network speeds are powered by the Gigabit Ethernet RJ45 modular jack, explicitly designed for high-performance 1G Base-T applications. A premium stainless steel shield with pre-soldering provides full STP protection to block electromagnetic interference effectively during data transmission. Vertical integration into the PCB relies on a secure through-hole mounting method with integrated board locks for mechanical stability. Yellow and green LEDs are neatly positioned within the tab-up profile to provide immediate link status feedback. Gold-plated phosphor bronze contacts maintain excellent conductivity in this gigabit ethernet RJ45. Reliable operation remains consistent within the standard 0°C to 70°C commercial temperature range.
Key Features
- 1G Base-T Speed: Supports high-speed Gigabit Ethernet data transmission.
- Vertical Top Entry: Optimizes board space for high-density layouts.
- Stainless Steel Shielding: Pre-soldered housing blocks severe electromagnetic interference.
- Secure PCB Mounting: Integrated board locks ensure stable mechanical retention.
- Integrated Status LEDs: Yellow and green lights track network activity.
Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FSN-LG-M21Y | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless Steel, Pre-Soldering |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
