Introduction:

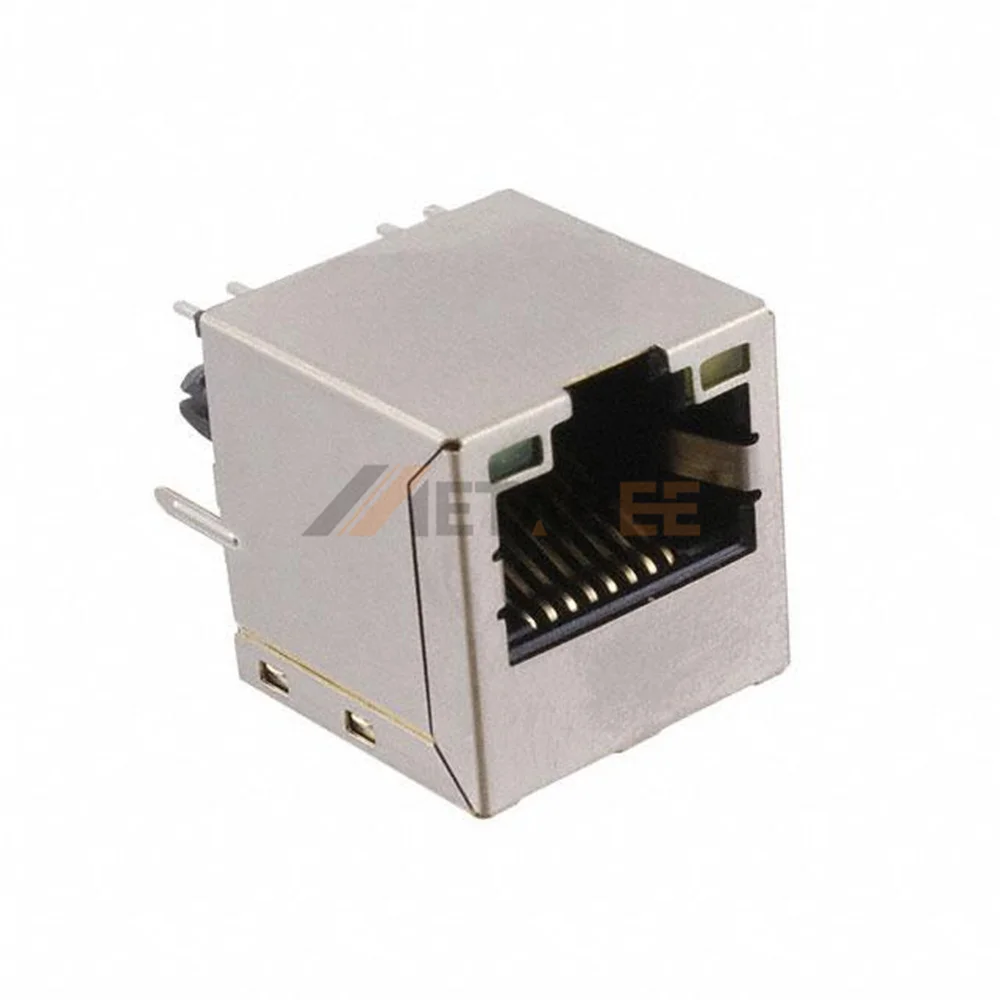

Stable network communication relies on the high-performance RJ45 LAN Transformer, which supports 10/100 Base-T speeds for various commercial applications. Space-saving vertical orientation allows for efficient top-entry PCB integration where board real estate is limited. A robust nickel-plated brass shield provides full STP protection to effectively block electromagnetic interference. Secure mechanical alignment relies on integrated board locks and solder retention features during the THT soldering process. Visual network link status is clearly provided by dual green and yellow LEDs. Furthermore, gold-plated phosphor bronze contacts strictly maintain electrical resistance below 20mΩ in this RJ45 LAN transformer. Operational reliability remains consistent across the standard commercial temperature range of 0°C to 70°C.
Key Features
- 10/100 Base-T Performance: Facilitates reliable Fast Ethernet data transmission rates.
- Vertical Top Entry: Optimizes board space for high-density applications.
- Full Brass Shielding: Nickel-plated housing blocks severe electromagnetic interference.
- Secure PCB Mounting: Board locks and solder retention ensure stability.
- Low Resistance Contacts: Gold finish guarantees signal integrity below 20mΩ.
Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FSN-LH1-M5C | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
