Introduction:
Reliable Fast Ethernet connectivity is ensured by the vertical RJ45 with integrated magnetics, engineered for space-constrained industrial environments. Nickel-plated brass shielding provides a full enclosure to block severe electromagnetic interference effectively during operation. Unlike standard modules, the durable black PA66 housing withstands extreme temperatures ranging from -40°C to 85°C. Precise printed circuit board alignment depends on the integrated board guide for secure through-hole soldering. Visual status feedback relies on built-in green and yellow LEDs positioned neatly in the tab-up configuration. Finally, gold-plated contacts strictly maintain electrical resistance below 20mΩ to guarantee flawless long-term signal integrity.
Key Features
- 10/100 Base-T Speed: Supports reliable Fast Ethernet data transmission.
- Vertical THT Mounting: Optimizes space with secure top-entry design.
- Industrial Temperature Range: Operates reliably from -40°C to 85°C.
- Full Brass Shielding: Blocks severe electromagnetic interference effectively.
- Integrated Board Guide: Ensures precise mechanical alignment on PCB.
Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FSN-STP-LP-M4C-WOT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

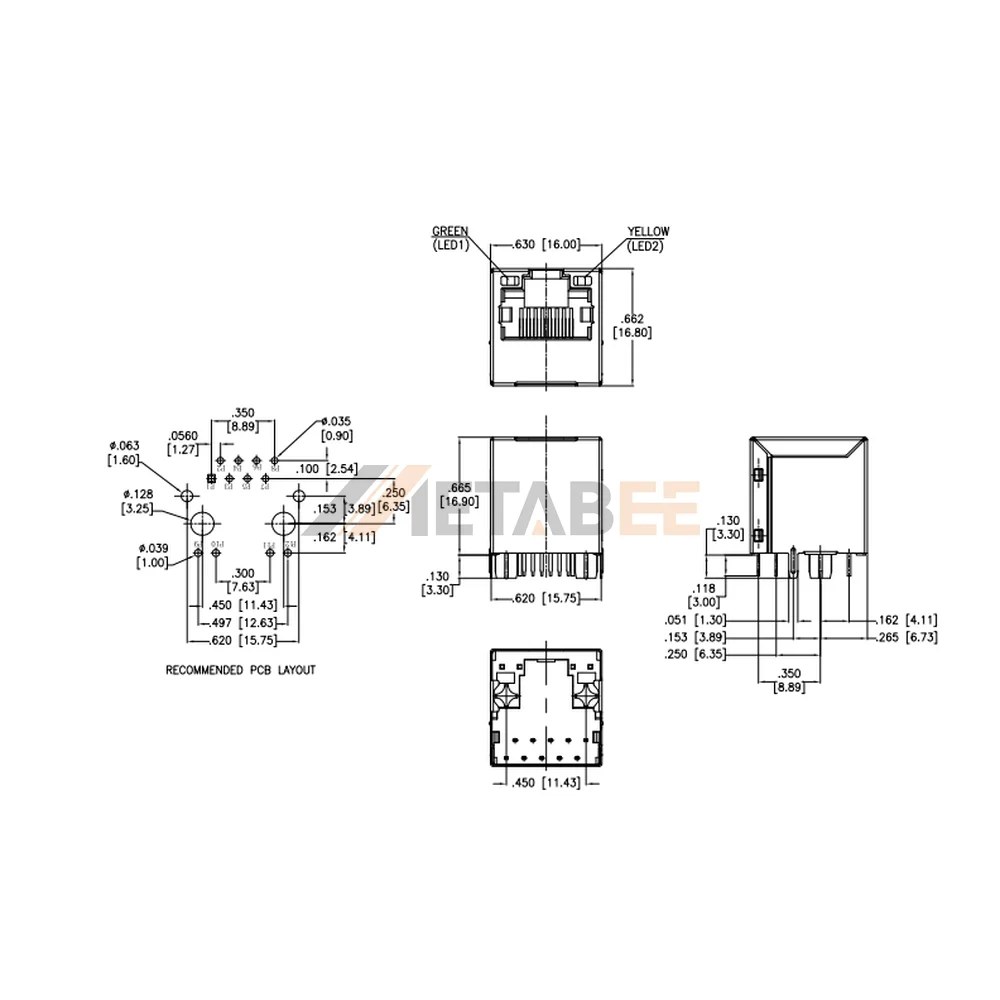

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
