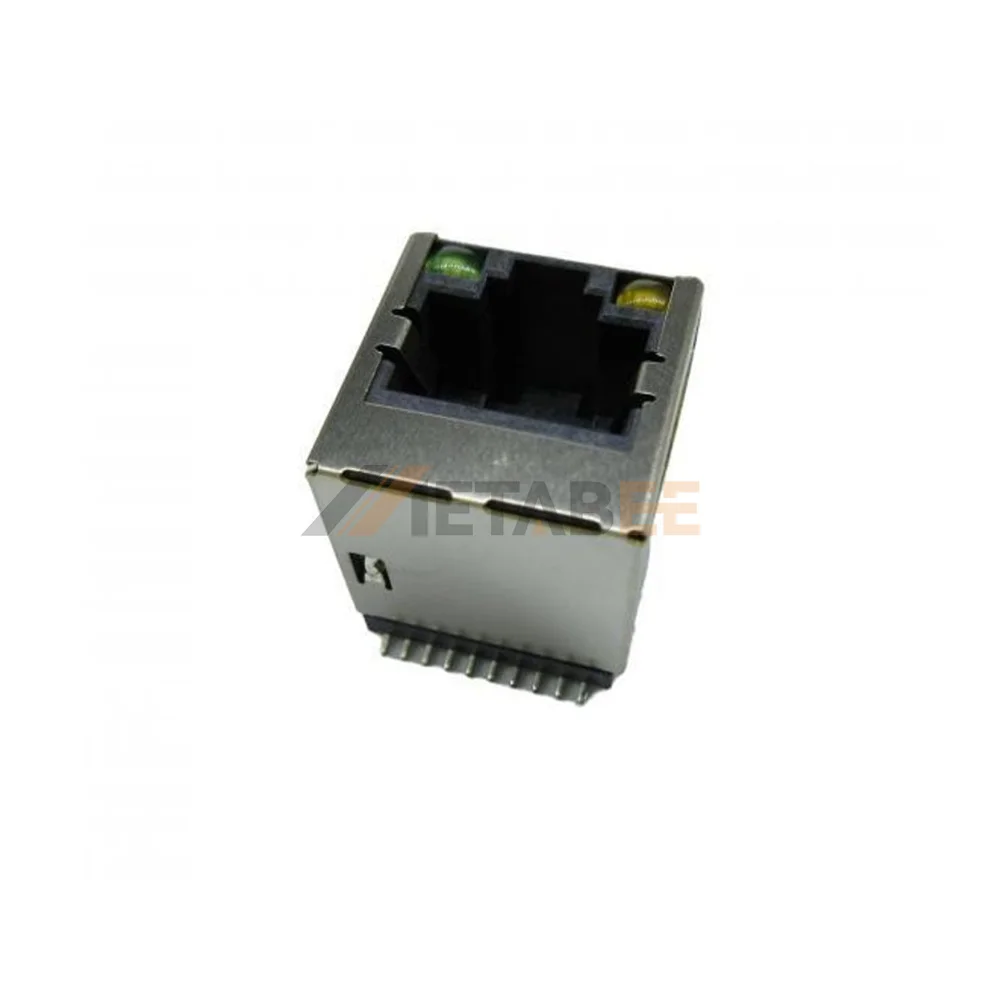

Vertical RJ45 Magnetic Jack, 8P8C, 1 Port, Cat5e, 1000M Base-T, Shielded, Surface Mount, Green/Orange LEDs
Introduction:
This high-performance vertical RJ45 magjack is designed to optimize space on crowded printed circuit boards. It supports 1G Base-T data rates and fully complies with Cat5e performance standards. The single port 8P8C component features integrated magnetics that enhance signal integrity and simplify your circuit design. Utilizing surface mount technology (SMT), it allows for efficient and automated assembly processes. The robust metal shielding provides excellent EMI protection, ensuring stable operation in various environments. Integrated green and orange LEDs offer immediate visual feedback for network activity and link status.
Key Features
- Vertical Orientation: Top-entry design saves valuable horizontal PCB space.
- Surface Mount Design: SMT configuration enables efficient automated board assembly.
- Integrated LEDs: Green and orange indicators provide clear status monitoring.
- EMI Shielding: Metal housing blocks interference for reliable signal transmission.
Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FS-TSMT-P-L5-M398AC-WOT-KT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Performance Category: | CAT5e | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Orange |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 2250 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
