Introduction:

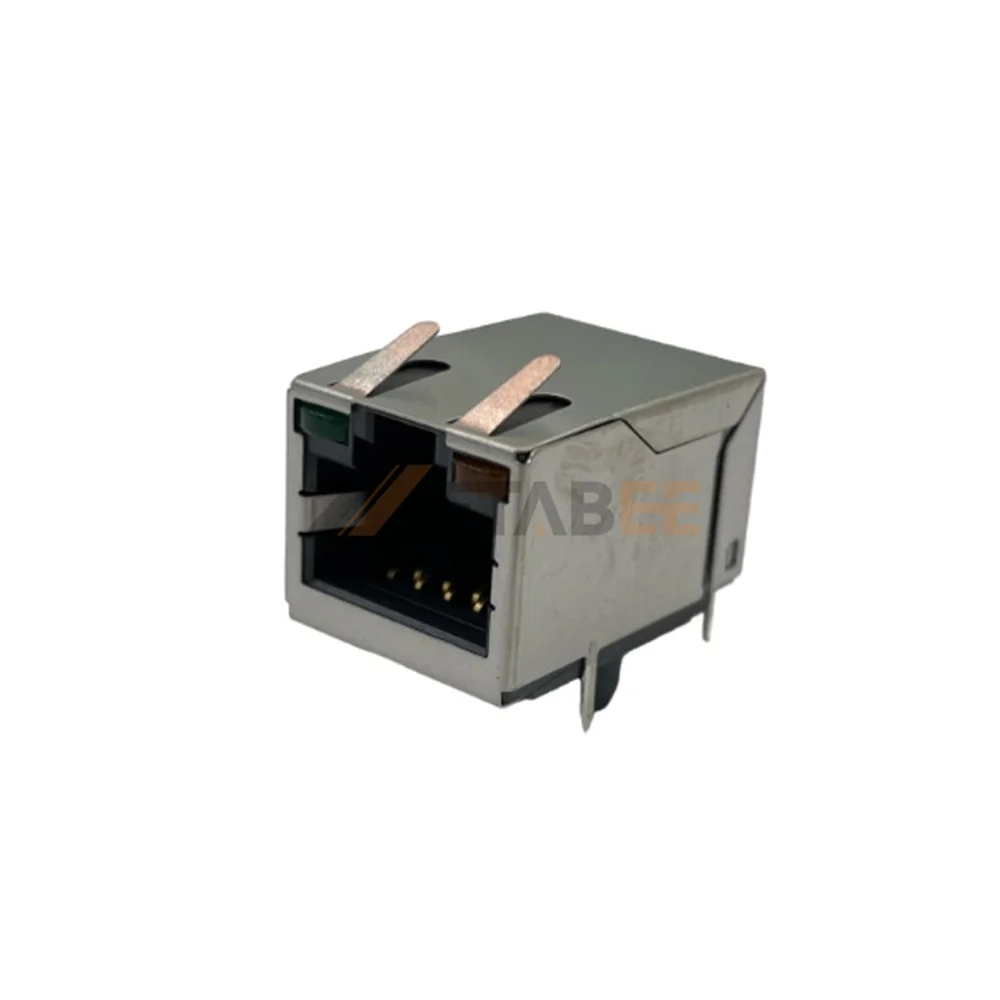

High-speed networking requires a reliable RJ45 PCB jack. This 1×1 port component supports 2.5G Base-T Ethernet speeds. It is designed for CAT 5e performance in demanding environments. A robust stainless steel shield blocks external electromagnetic interference. Integrated green and orange LEDs provide immediate visual status feedback for users. The housing uses hi-temp thermoplastic to survive industrial soldering processes. Gold-plated copper alloy contacts ensure excellent electrical conductivity. Its right-angle design and tab-up orientation optimize layout on compact boards. Solder tails provide strong mechanical retention via through-hole mounting. It handles a 1.25A current rating efficiently.
Key Features
- 2.5G Base-T Speed: Supports high-speed data transfer for modern networks.
- Stainless Steel Shield: Blocks external electromagnetic interference for signal purity.
- Green/Orange LEDs: Dual indicators provide instant connection status feedback.
- Hi-Temp Thermoplastic: Housing withstands intense heat during industrial soldering.
- Tab-Up Orientation: Top-latch design facilitates easy cable insertion and removal.
Main Specifications:
General Information:
| Product No.: | MTJ-88TUX1-FS2-PG2T-L5-C5E-HT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 2.5G Base-T | |
| Performance Category: | CAT5e | |
| Integral Magnetics: | No | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Orange |
Electrical:
| Rated Current: | 1.25A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC RMS 60Hz for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Stainless steel |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
