Introduction:
This high-speed magnetic RJ45 jack provides an advanced 25G Base-T interface for high-bandwidth networking. It complies with CAT 8 standards to ensure stable data transmission in demanding environments. Integrated magnetics filter out electrical noise effectively for signal clarity. The component features a full shield to block external electromagnetic interference. Dual green and yellow LEDs are included for immediate status monitoring. Its right-angle design with a tab-down orientation optimizes space on compact printed circuit boards. Manufactured with PA66 material and gold-plated copper alloy contacts, it offers excellent durability. Through-hole mounting pins provide a secure mechanical bond for routers and servers.
Key Features
- 25G Base-T Performance: Supports ultra-fast 25Gbps data transmission rates.
- Integrated Magnetics: Internal filtering ensures superior signal integrity and clarity.
- Cat 8 Compliance: Meets highest frequency standards for high-bandwidth systems.
- Full Shielding: Metal housing blocks external electromagnetic interference effectively.
- Green/Yellow LEDs: Dual indicators provide real-time network link feedback.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-LH-M365BC-WOT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 25G Base-T | |
| Performance Category: | CAT8 | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Doen | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 2250 VDC for 1 minute |
Materials and Plating:
| Housing Material: | PA66 | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

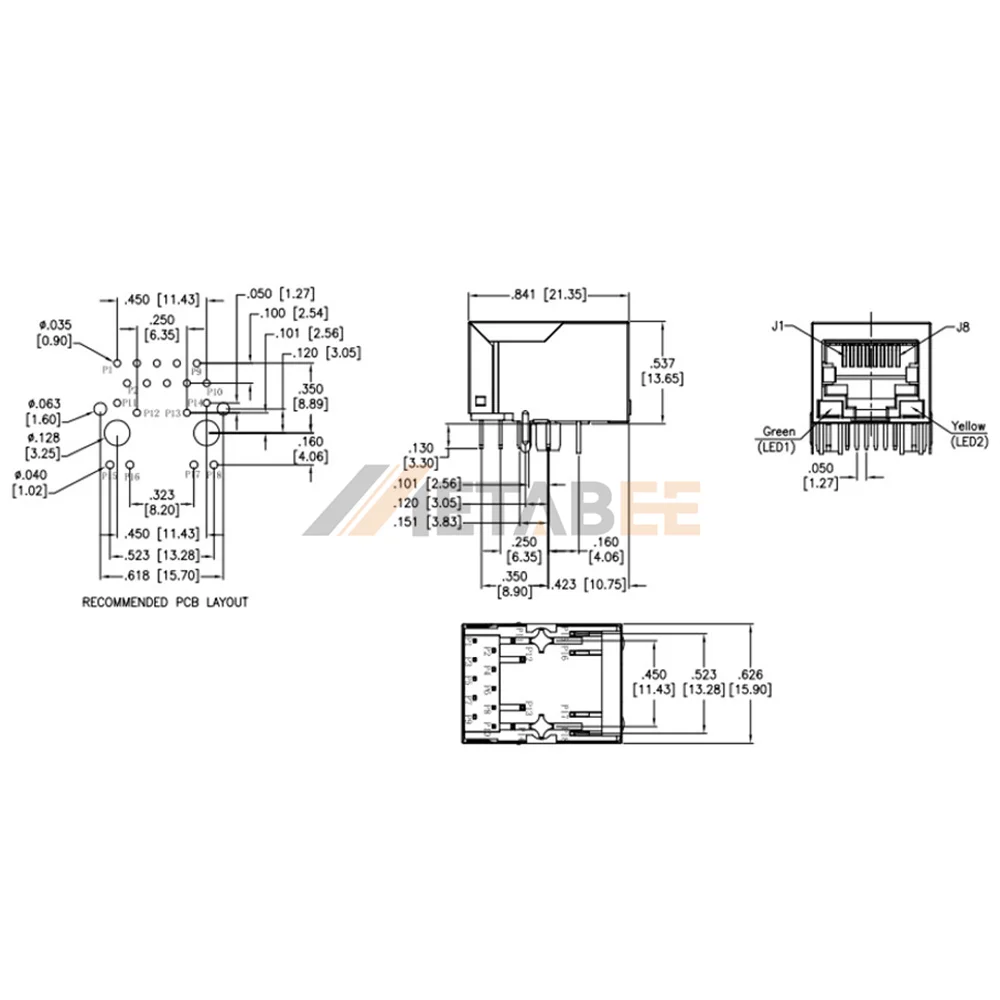

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
