Introduction:
Providing efficient multi-port connectivity, this 4 gang RJ45 socket is perfect for networking equipment. It features a 1×4 port layout designed for Cat5 performance. A full nickel-plated brass shield blocks electromagnetic interference effectively. Integrated green and yellow LEDs allow for real-time visual link monitoring. The housing is made of durable PBT material to ensure long-term reliability. Gold-plated phosphor bronze contacts maintain excellent electrical conductivity. Its right-angle orientation with a tab-up design optimizes board layout space. This through-hole component provides strong mechanical stability for various electronic applications. It supports a 1.5A current rating safely.
Key Features
- 1×4 Multi-Port Design: Provides four 8P8C ports for high-density networking.
- Full Metal Shielding: Nickel-plated brass housing blocks external electromagnetic interference.
- Status LED Indicators: Integrated green and yellow lights show network activity.
- Gold Plated Contacts: Phosphor bronze terminals ensure superior electrical conductivity.
- Tab-Up Orientation: Top-latch design facilitates easy cable insertion and removal.
Main Specifications:
General Information:
| Product No.: | MTJG-4-88ARX1-FSM-PG-LH-C5 | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×4 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | N/A | |
| Performance Category: | CAT5 | |
| Integral Magnetics: | No | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

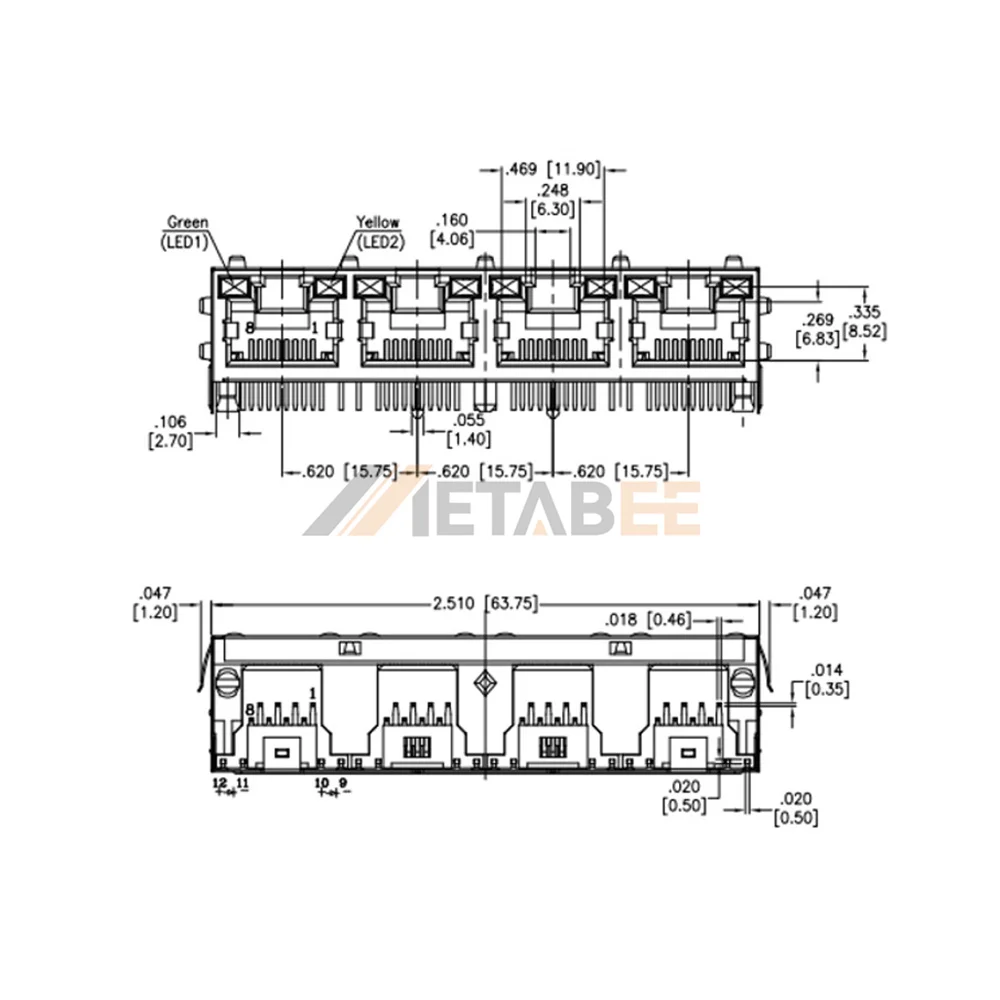

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
