Introduction:

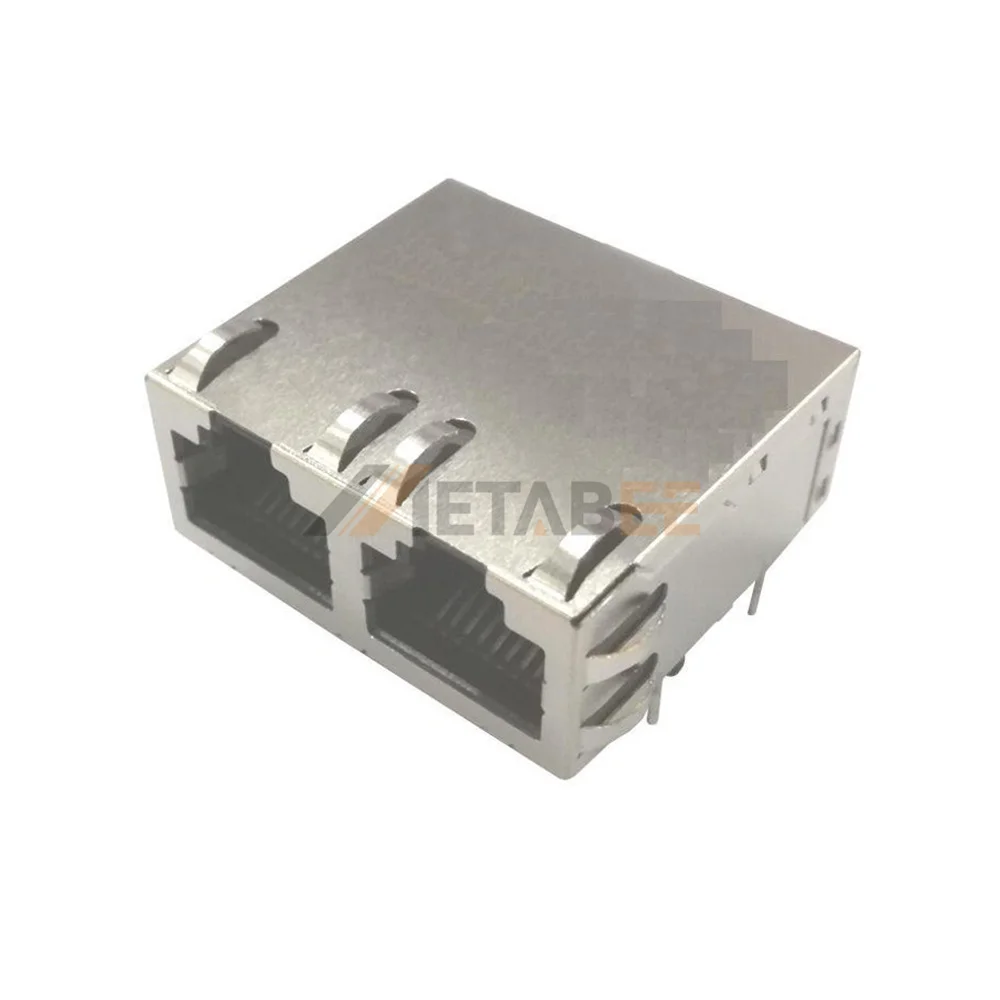

Reliable high-speed networking starts with this Ethernet magjack. It features a 1×2 port configuration for dual connectivity. The 8P8C design supports 10G Base-T speeds and meets Cat 6a standards. Integrated magnetics help filter signal noise effectively. A full metal shield protects the component from external interference. Thermoplastic housing ensures the unit survives industrial soldering heat. Phosphor bronze contacts with gold plating provide excellent conductivity. This right-angle modular jack utilizes a tab-up latch orientation. Through-hole mounting pins secure the connector firmly to the board. It is a perfect choice for modern servers and data centers.
Key Features
- 10G Base-T Speed: Supports ultra-fast 10Gbps data transmission rates.
- Dual Port Design: 1×2 configuration provides two 8P8C connection ports.
- Integrated Magnetics: Built-in filtering ensures superior signal integrity and clarity.
- Full Metal Shield: Brass housing blocks external electromagnetic interference effectively.
- Tab-Up Orientation: Top-latch design facilitates easy cable insertion and removal.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88CAX1-FS5-PG-M328C | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×2 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10G Base-T | |
| Performance Category: | CAT6a | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 2250 VDC for 1 minute |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0℃ to +70℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
