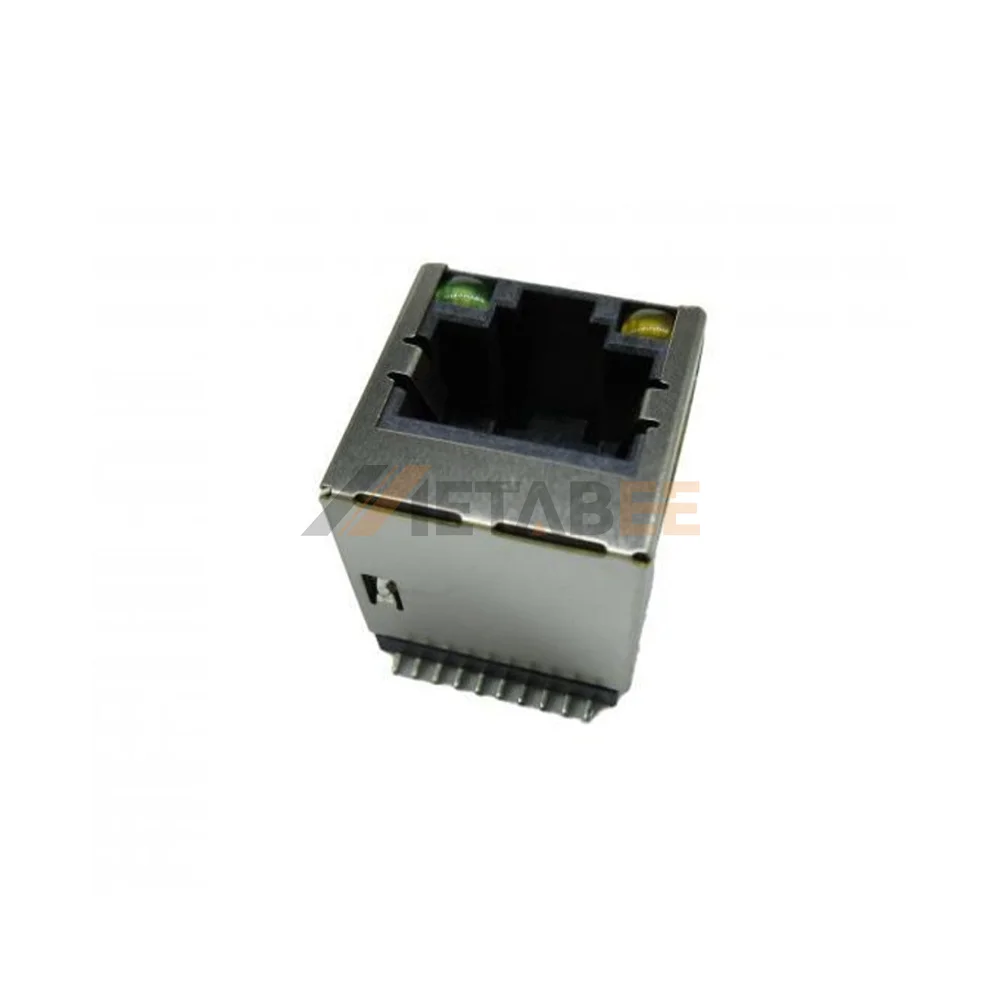

Straight RJ45 Jack SMT Connector with Magnetics, 8P8C, 1 Port, Cat5e, 2.5G Base-T, Shielded, Green/Orange LEDs
Introduction:
This high-performance RJ45 SMT connector supports fast 2.5G Base-T Ethernet speeds. It is designed for CAT 5e networking applications. The vertical orientation saves horizontal space on your circuit board. Integrated magnetics help filter signal noise effectively. A full nickel-plated brass shield blocks external electromagnetic interference. This single port 8P8C jack features green and orange LED indicators. Durable hi-temp thermoplastic housing survives reflow soldering temperatures. Gold-plated phosphor bronze contacts provide superior electrical conductivity. It handles a 1.5A current rating for reliable power delivery.
Key Features
- 2.5G Base-T Performance: Supports high-speed data transfer up to 2.5Gbps.
- Integrated Magnetics: Internal filtering ensures superior high-speed signal integrity.
- Surface Mount Design: SMT configuration enables efficient automated board assembly.
- Full Metal Shielding: Nickel-plated brass housing blocks external electromagnetic interference.
- Green/Orange LEDs: Dual indicators provide instant connection status feedback.
Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FS-TSMT-P-L5-M398CH-WOT-KT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Speed: | 2.5G Base-T | |
| Performance Category: | CAT5e | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Orange |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 2250 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
