Introduction:

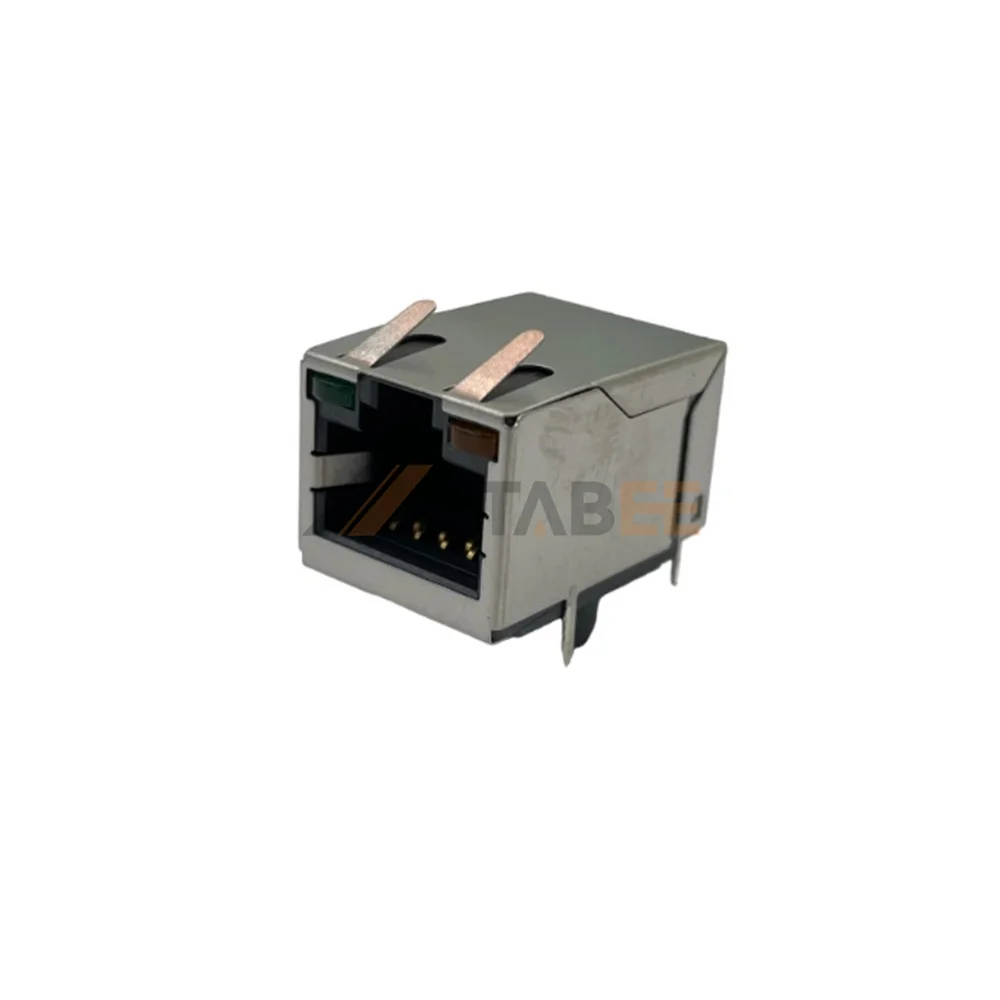

Networking speeds reach new heights with this rj45 10g high speed jack. It provides a stable 8P8C interface for demanding 10G Base-T and CAT 6a applications. A robust stainless steel shield surrounds the unit to block external electromagnetic interference. Integrated green and orange LEDs allow for immediate link status monitoring. The housing consists of hi-temp thermoplastic to survive industrial soldering processes. Gold-plated copper alloy contacts ensure excellent signal conductivity and durability. This component utilizes a right-angle design with a tab-up orientation for convenient cable management. Secure through-hole mounting pins provide strong mechanical stability on printed circuit boards. It is an ideal choice for data centers and professional telecommunication hardware.
Key Features
- 10G Base-T Performance: Supports ultra-fast data transfer rates up to 10Gbps.
- Full Shielding: Stainless steel housing blocks external electromagnetic interference.
- Green/Orange LEDs: Dual indicators provide real-time connection status feedback.
- Hi-Temp Thermoplastic: Housing withstands intense heat during industrial soldering.
- Tab-Up Orientation: Top-latch design facilitates easy cable insertion and removal.
Main Specifications:
General Information:
| Product No.: | MTJ-88TUX1-FS2-PG2T-L19-C6A-HT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10G Base-T | |
| Performance Category: | CAT6a | |
| Integral Magnetics: | No | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Orange |
Electrical:
| Rated Current: | 1.25A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC RMS 60Hz for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Stainless steel |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
