Introduction:

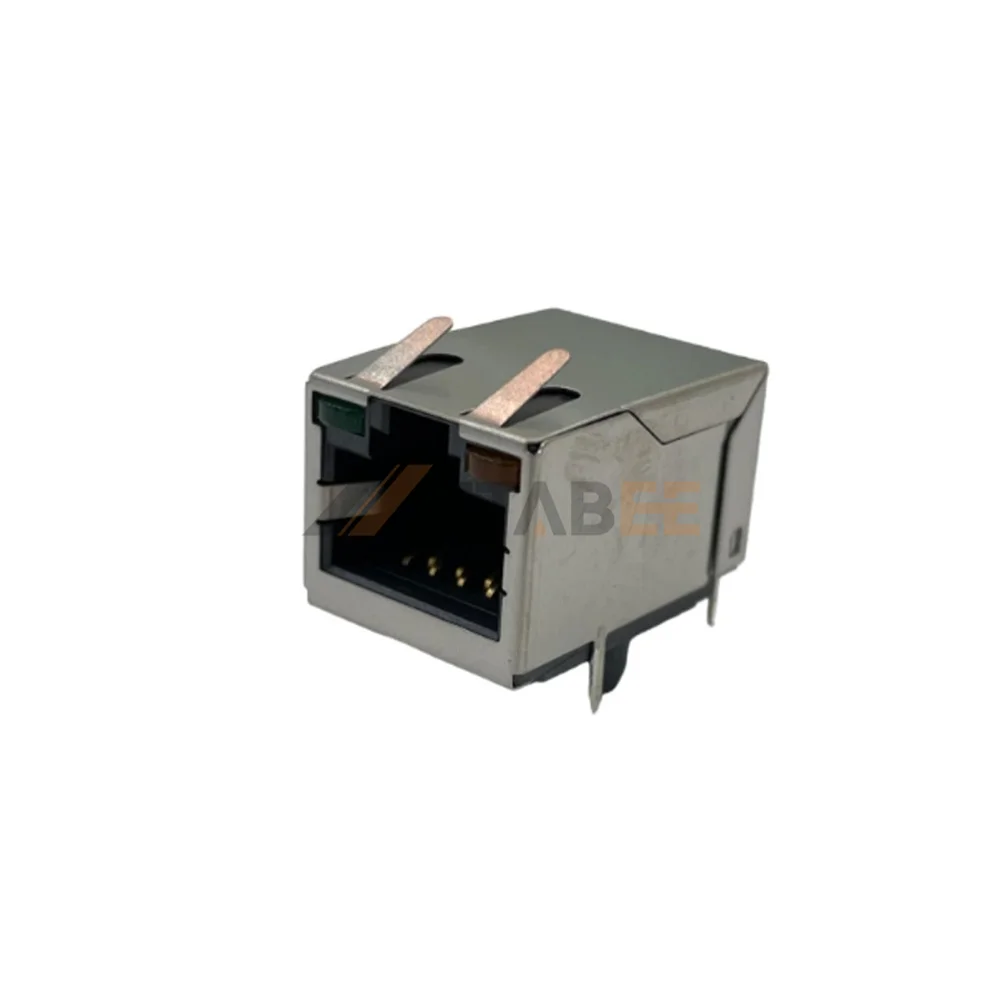

Accelerate your network performance with this RJ45 jack PCB mount. It supports extreme 10G Base-T data speeds for CAT 6a systems. A stainless steel shield wraps the unit to block interference. Dual green and orange LEDs offer instant connection status. The high-temp thermoplastic housing survives rigorous industrial wave soldering. Gold-plated copper alloy contacts provide excellent conductivity and signal integrity. Its right-angle design fits board edges perfectly. The tab-up orientation makes cable access very convenient for users. Through-hole mounting pins ensure a secure mechanical fit on the board. This component handles a 1.25A current rating for reliable operations.
Key Features
- 10G Base-T Performance: Supports ultra-fast data transfer up to 10Gbps.
- Full Shield Protection: Stainless steel housing effectively blocks external EMI.
- Green/Orange LEDs: Dual indicators provide real-time network link feedback.
- Hi-Temp Thermoplastic: Housing withstands extreme heat during industrial soldering.
- Tab-Up Orientation: Top-latch design facilitates easy cable insertion.
Main Specifications:
General Information:
| Product No.: | MTJ-88TUX1-FS2-PG2T-L5-C6A-HT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10G Base-T | |
| Performance Category: | CAT6a | |
| Integral Magnetics: | No | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Orange |
Electrical:
| Rated Current: | 1.25A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC RMS 60Hz for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Stainless steel |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
