Vertical RJ45 Jack Unshielded Connector, 8P8C, Tab-Up, Through Hole, R/A, No LED
Introduction:
This is a single port vertical RJ45 jack designed for secure through hole mounting on networking circuit boards. Its durable PBT housing provides excellent thermal stability and maintains a high insulation resistance of 500MΩ Min. The Phosphor Bronze contacts are finished with Gold over Nickel plating to ensure high conductivity and a standard 1.5A current rating. Utilizing a Tab-Up top-entry configuration, this unshielded component effectively saves board surface area while maintaining electrical safety up to 1000 VAC. It performs reliably across an impressive temperature range of -40°C to +125°C to handle harsh industrial conditions. Technicians utilize this modular interface for industrial automation systems and telecommunication hardware requiring vertical board connectivity.
Key Features
- Operating Temperature Range: Performs reliably from -40°C up to +125°C.
- Vertical Orientation: Optimizes top-entry mounting for compact PCB designs.
- Gold Plated Contacts: Delivers superior conductivity and lasting oxidation resistance.
- PBT Housing Material: Ensures durable performance during industrial soldering processes.
- 8P8C Modular Interface: Provides standard unshielded network communication links.
Main Specifications:
General Information:
| Product No.: | MTJ-883AX1-N-SB | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Housing Material: | PBT | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Phosphor Bronze, Tin Plated |
Environmental:
| Operating Temperature: | -40℃ to +125℃ | |
| Flammability Rating: | UL 94 V-0 |

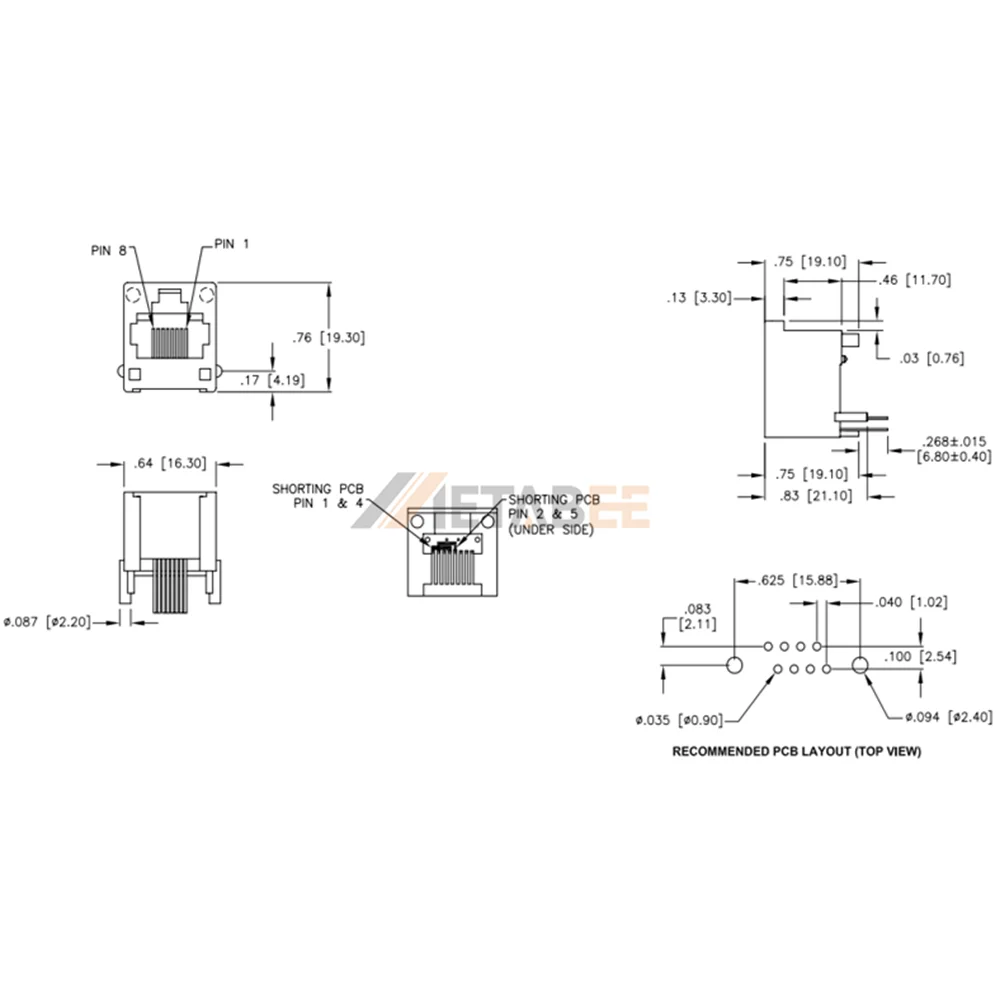

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
