Vertical PCB RJ45 Jack Ethernet Module, 8P8C, 1 Port, Shielded, Tab-Down, Through Hole, No LED
Introduction:
This is a single port shielded vertical rj45 jack module designed for stable top-entry through hole mounting on printed circuit boards. It features a nickel-plated brass shell that provides a full shield against electromagnetic interference to maintain high signal integrity across all data paths. The housing is constructed from glass-reinforced PA66 thermoplastic to ensure superior structural strength and thermal resistance during intense soldering processes. Phosphor Bronze contacts with Gold flash over Nickel plating support a consistent 1.5A current rating for stable data transmission. Utilizing a vertical configuration, this component effectively optimizes board surface area while providing a high insulation resistance of 1000MΩ. Technicians utilize this reliable module for industrial controllers and networking gear requiring secure vertical connectivity in high-density environments.
Key Features
- Full EMI Shielding: Metallic brass shell blocks external signal noise.
- Vertical PCB Mounting: Optimizes top-entry connectivity for compact layouts.
- Glass-Reinforced PA66: Robust housing withstands intense industrial assembly heat.
- Gold Flash Contacts: Ensures superior conductivity and lasting signal stability.
- Industrial Temperature Range: Performs reliably between -40°C and +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-88FX1-01-FSY-PG | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 35mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PA66, glass reinforced | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

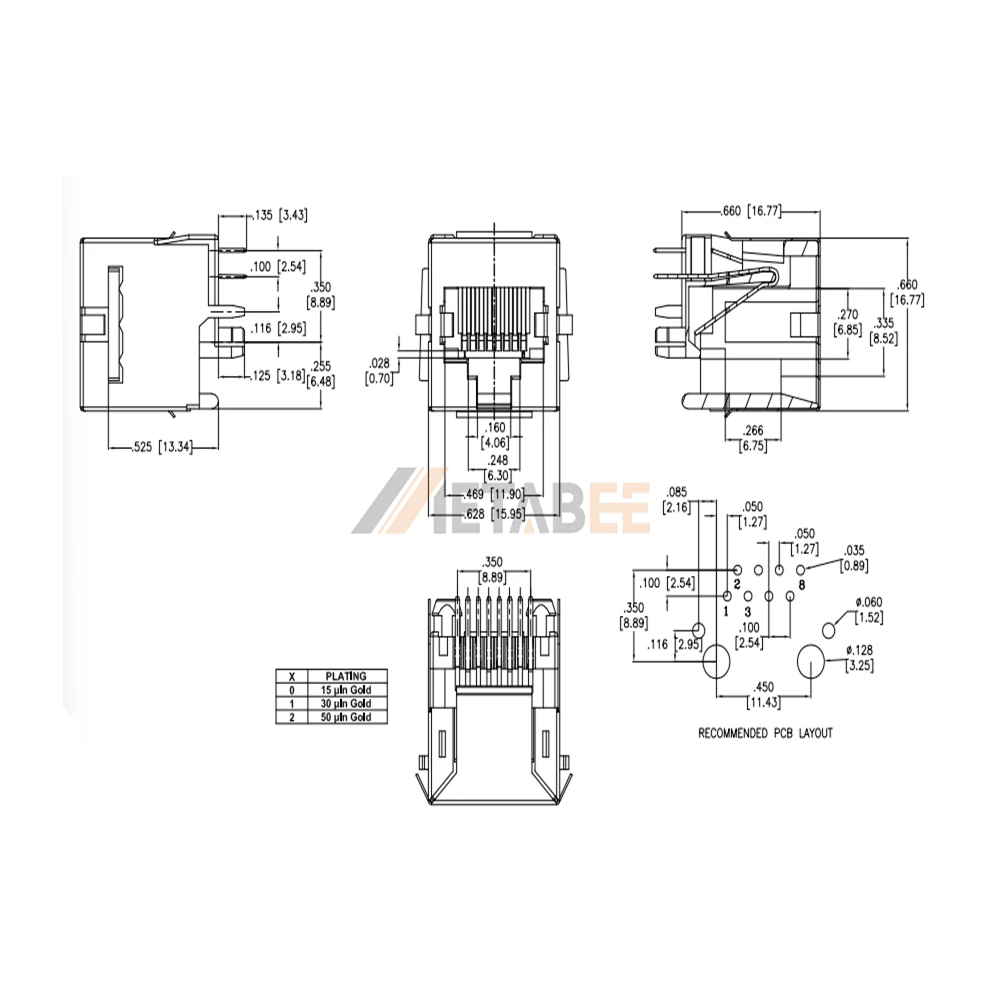

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
