Vertical PCB Modular RJ45 Female Ethernet Connector, 1 Port, Shielded, Through Hole, Tab-Down, No LED
Introduction:
This is a single port PCB modular RJ45 connector designed for secure vertical through hole mounting on networking circuit boards. It features a full copper alloy shield with nickel plating that provides a robust barrier against electromagnetic interference to ensure signal clarity across the 8P8C interface. The hi-temp thermoplastic housing survives intense thermal stress during industrial wave soldering without physical warping. Utilizing a top-entry vertical configuration, the Phosphor Bronze contacts are finished with Gold over Nickel to maintain high conductivity and a 1.5A current rating. The component effectively withstands dielectric voltages up to 1000 VAC RMS and performs reliably across an industrial temperature range from -40°C to +85°C. Technicians utilize this modular interface for industrial controllers and data networking hardware requiring space-efficient vertical connectivity.
Key Features
- Vertical Mounting Design: Optimizes top-entry connectivity for compact PCB layouts.
- Full EMI Shielding: Metallic shell blocks interference for high signal integrity.
- Hi-Temp Material: Survives intense heat during industrial soldering processes.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- 8P8C Modular Interface: Provides standard shielded links for networking systems.
Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FSE-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Shielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | Hi-temp thermoplastic |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack

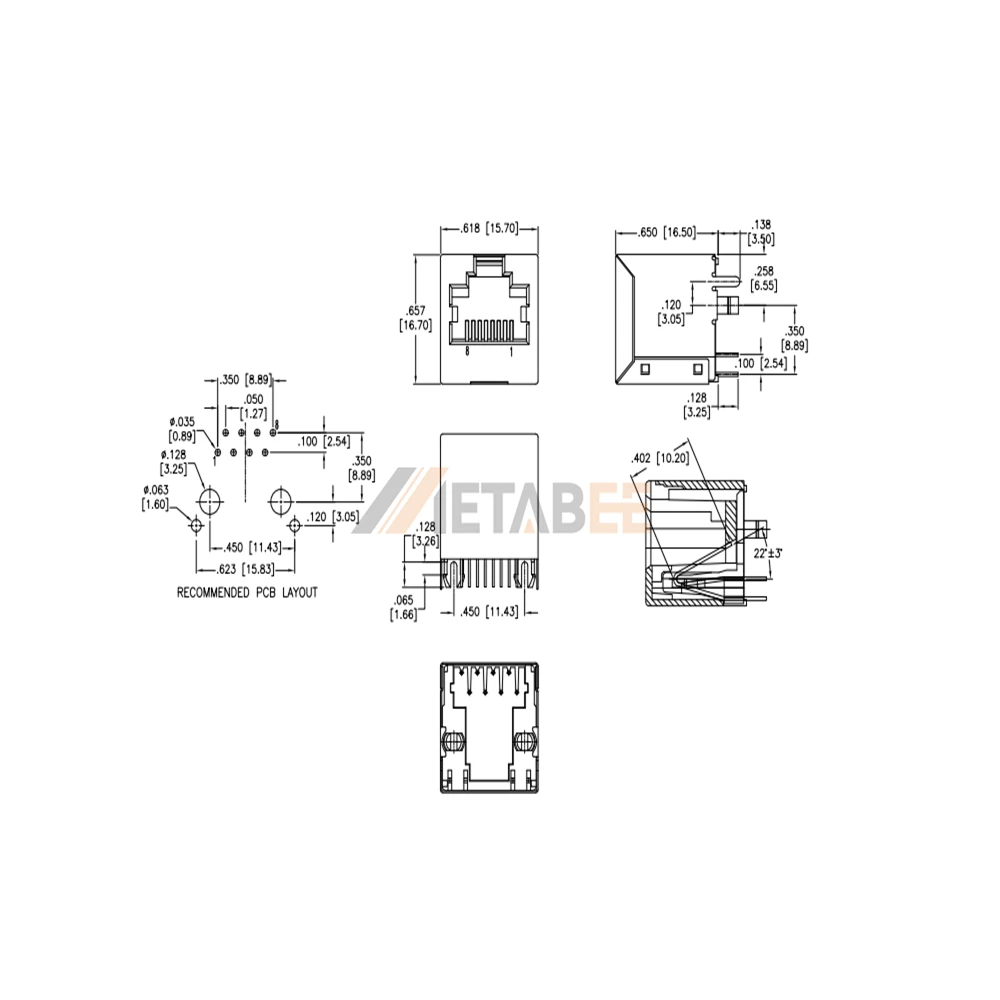

Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
