Vertical HDMI Type A Receptacle, Waterproof
Introduction:
The vertical HDMI type a receptacle is a single-port, 19-pin female HDMI connector designed for reliable pcb connectivity in space-constrained electronic equipment. Featuring a vertical mounting orientation and pcb through-hole mounting, it provides secure mechanical retention and stable electrical performance. The type a interface supports standard HDMI connectivity for a wide range of audio and video applications.
Designed for demanding operating environments, this waterproof HDMI receptacle offers a 0.5a rated current and 40v rated voltage, with an operating temperature range of -55°c to +85°c. Its ul94v-0 flame-retardant housing enhances safety and reliability, making it suitable for industrial equipment, displays, control systems, and other electronic devices requiring durable HDMI connectivity.
Key Features
- Connector Type: HDMI Type A, 19-pin
- Port Configuration: Single Port, Receptacle
- Mounting: Vertical, PCB Through Hole
- Electrical Rating: 0.5A / 40V
- Protection: Waterproof design, UL94V-0
- Operating Temperature: -55°C to +85°C

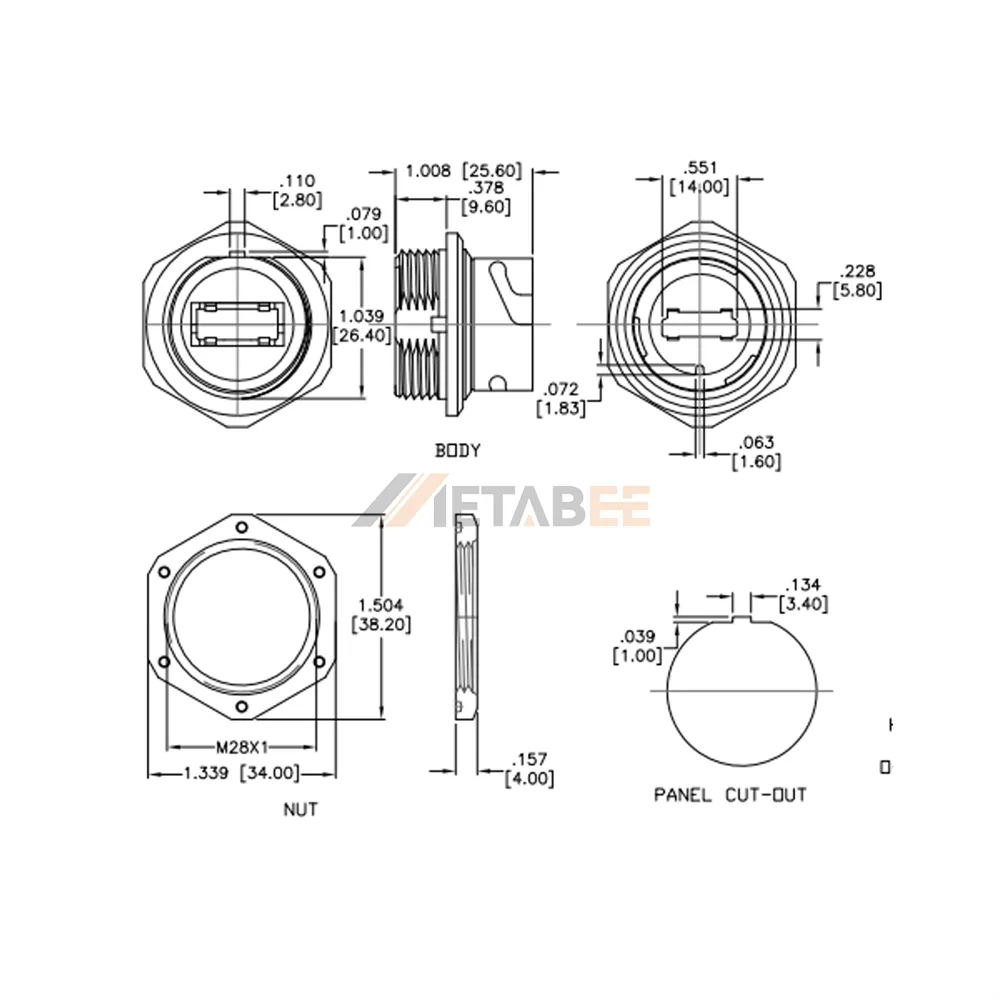

Main Specifications:
General Information:
| Product No.: | HDMI-D-RA-1B | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | N/A | |
| Mounting Feature: | N/A | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this Vertical HDMI Type A Receptacle:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
