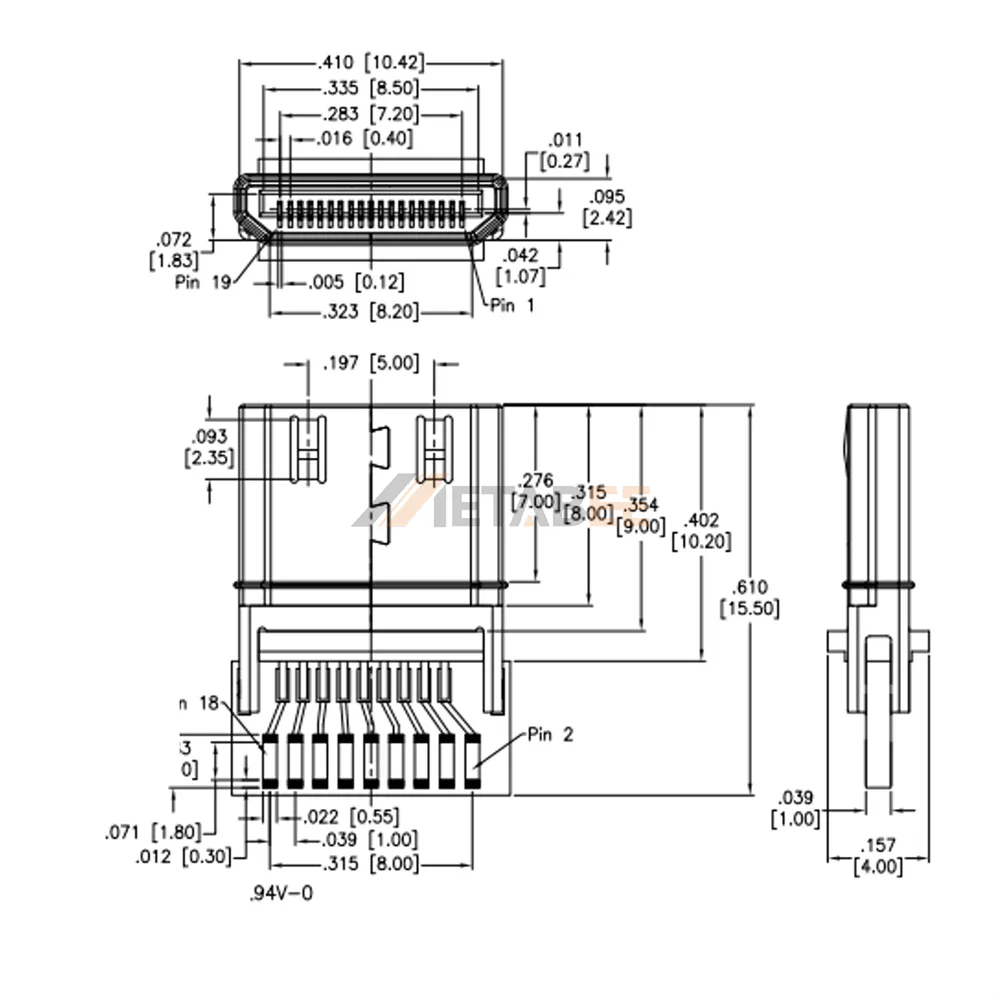

Mini HDMI Type C Plug, Solder Type, Over Molding Type
Introduction:
The Mini HDMI Type C plug is designed for reliable high-density digital connectivity in compact electronic applications. Featuring a single-port, 19-pin plug configuration, it uses a straight mounting orientation and solder termination for secure and stable electrical connections.
The over molding construction provides enhanced mechanical protection and helps improve durability in demanding applications. With a 0.5A current rating, 40V voltage rating, UL94V-0 flame retardancy, and an operating temperature range of -55°C to +85°C, this Mini HDMI connector delivers dependable performance across a wide range of operating environments.
Key Features
- Type C mini HDMI interface
- 19-pin plug configuration
- Single-port design
- Straight orientation
- Solder termination with over molding
- 0.5A / 40V rating, UL94V-0, -55°C to +85°C
Main Specifications:
General Information:
| Product No.: | MHDMI-PLUG-OM | |
| Connector Series: | Mini HDMI Connectors | |
| Connector Type: | Type C | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Plug | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Straight | |
| Mounting Method: | N/A | |
| Mounting Feature: | N/A | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this Mini HDMI Type C Plug:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
