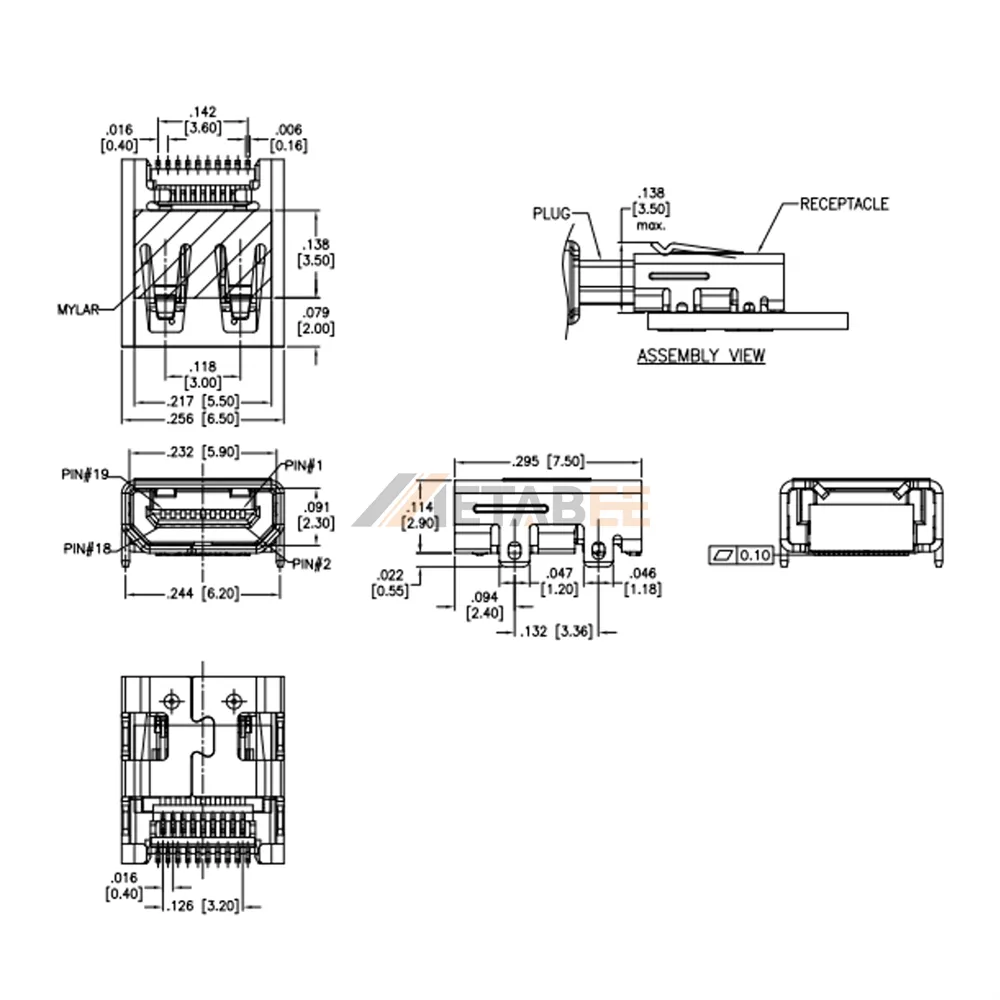

Micro HDMI Type D Receptacle, PCB Surface Mount, R/A
Introduction:
Micro hdmi type d receptacle, pcb surface mount, right-angle orientation. This 19-pin female connector is engineered for high-density digital interconnects, supporting 0.5a current and 40v voltage. The right-angle mounting direction enables low-profile board attachment, ideal for slim devices where vertical space is limited. Surface mount technology ensures secure solder joints on the pcb without through-holes, reducing assembly time and improving high-frequency performance. Operating temperature spans -55°c to 85°c, with ul94v-0 flame-retardant housing for fire safety in consumer and industrial applications.
This single-port receptacle provides a reliable interface for micro hdmi cables, delivering stable signal transmission in compact cameras, drones, and mobile docking stations. The right-angle design facilitates edge-board placement, minimizing cable strain and optimizing internal routing. Its robust contact plating resists oxidation and wear, ensuring durability over repeated mating cycles. Compatible with automated pick-and-place machinery, this component streamlines production while maintaining consistent impedance control.
Key Features
- 19-pin micro hdmi type d female receptacle
- Right-angle pcb surface mount design
- Solder-free smt attachment for dense layouts
- 0.5a current and 40v voltage rating
- Wide temp range -55°c to 85°c, ul94v-0 rated
- Single-port compact footprint for edge mounting
Main Specifications:
General Information:
| Product No.: | MCHDMI-S-RA-2-SMT-15-KT-TR | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type D | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this Micro HDMI Type D Receptacle:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
