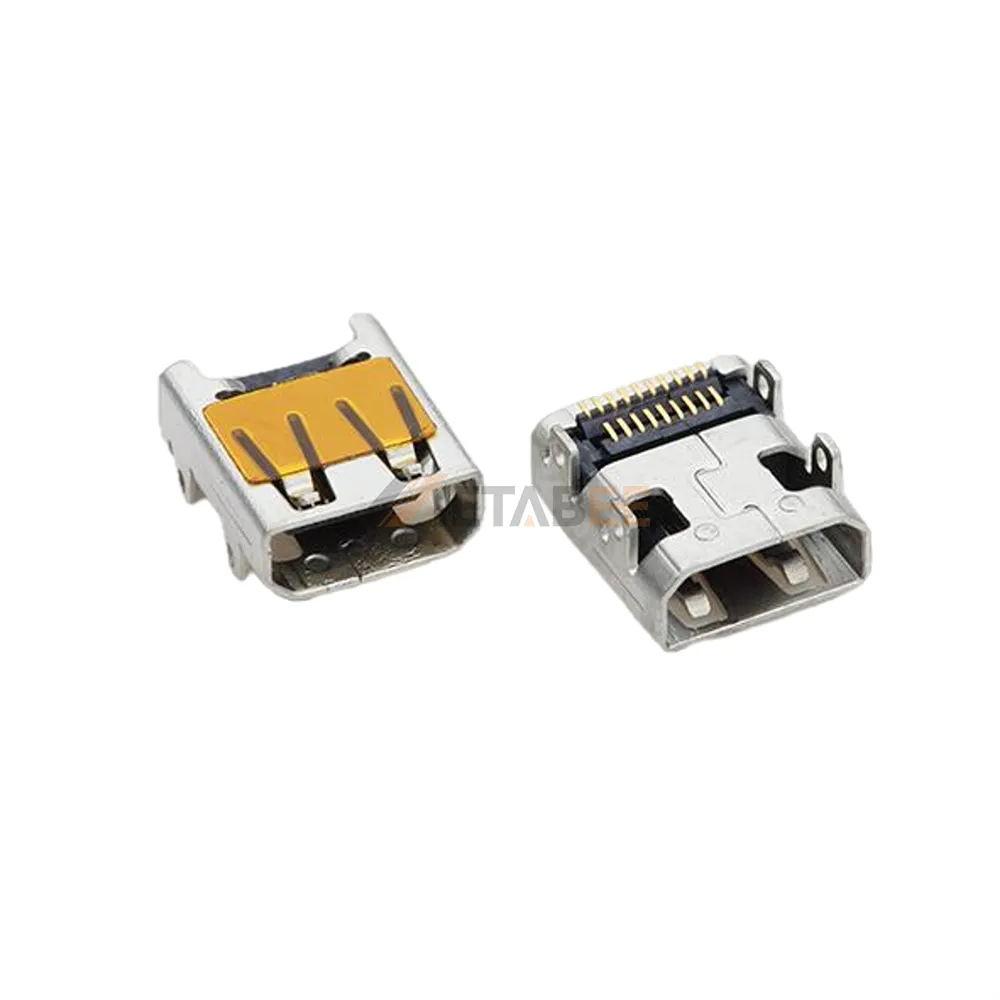

Micro HDMI Type D 19 Pin Female Connector, SMT, R/A
Introduction:
The micro HDMI type d 19 pin female connector is designed for compact electronic devices requiring reliable high-density HDMI connectivity. Featuring a single-port, 19-pin type d female interface, it supports pcb surface mounting with a right-angle orientation, making it suitable for space-constrained pcb layouts and streamlined device integration.
Rated for 0.5a current and 40v voltage, this micro HDMI connector provides stable electrical performance for demanding electronic applications. Its ul94v-0 flame-retardant housing enhances safety, while the -55°c to +85°c operating temperature range supports reliable performance across a wide range of environmental conditions.
Key Features
- Type D Micro HDMI interface
- 19-pin female connector
- Single-port configuration
- Right-angle orientation
- PCB surface mount, SMT
- 0.5A / 40V rating; UL94V-0; -55°C to +85°C
Main Specifications:
General Information:
| Product No.: | MCHDMI-S-RA-2-SMT | |
| Connector Series: | Micro HDMI Connectors | |
| Connector Type: | Type D | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this Micro HDMI Type D 19 Pin Female Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
