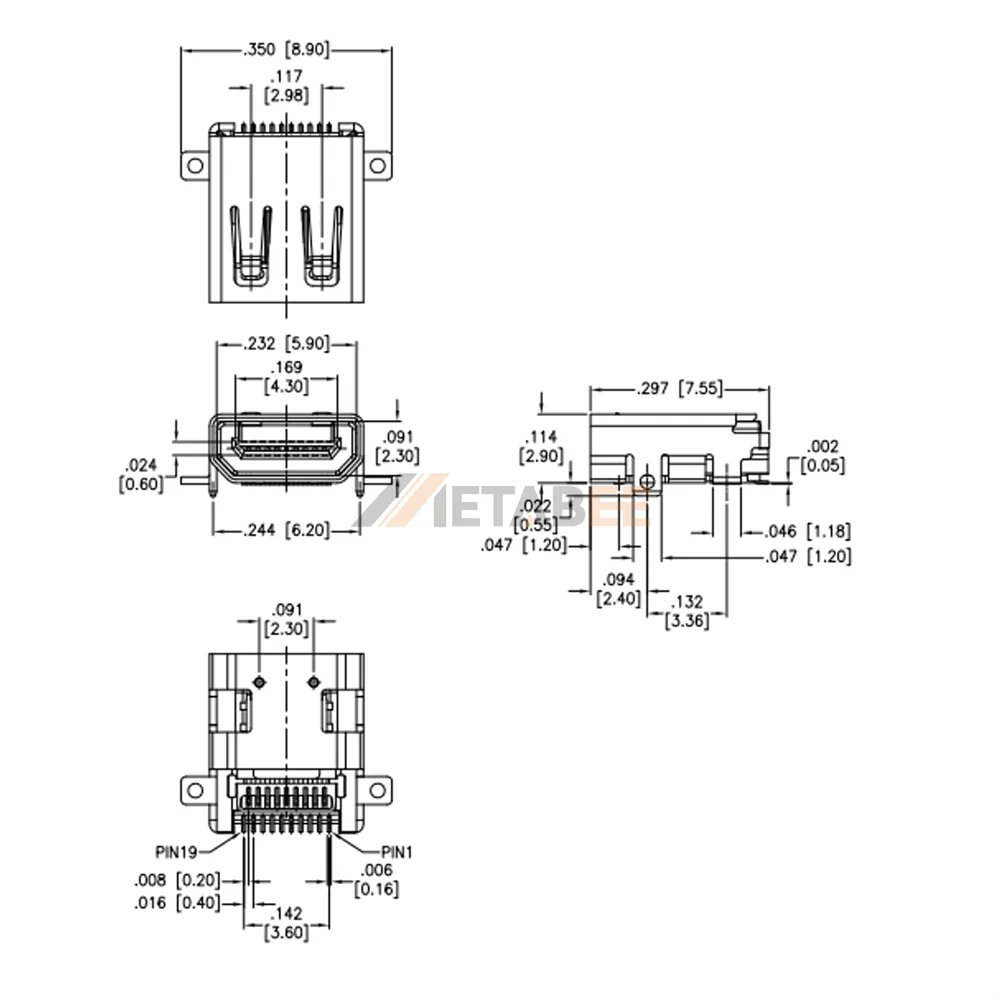

Micro HDMI Type D Female receptacle, Surface Mount, R/A
Introduction:
This compact Micro HDMI Type D female receptacle delivers dependable high-definition audio and video transmission for space-constrained PCB designs. Configured as a single-port, 19-pin interface, it provides robust signal integrity and streamlined connectivity. The surface mount technology (SMT) with right-angle orientation optimizes board space, reduces mechanical strain, and supports efficient automated assembly for modern electronics.
Engineered for durability and stable electrical performance, this connector features a rated current of 0.5A and a rated voltage of 40V. Its flame-retardant housing meets the stringent UL94V-0 safety standard, while its broad operating temperature range of -55°C to 85°C ensures reliable operation in demanding environments. It is an ideal choice for portable media players, digital cameras, drones, and embedded systems.
Key Features
- Interface specification: Micro HDMI Type D 19-pin female connector.
- Mounting configuration: Right-angle surface mount (SMT) design.
- Port design: Space-saving single-port footprint.
- Electrical capacity: 0.5A rated current and 40V rated voltage.
- Flame resistance: UL94V-0 certified thermoplastic housing.
- Operating temperature: Wide operational range from -55°C to 85°C.
Main Specifications:
General Information:
| Product No.: | MCHDMI-S-RA-3-SMT | |
| Connector Series: | Micro HDMI Connectors | |
| Connector Type: | Type D | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this Micro HDMI Type D Female receptacle:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
