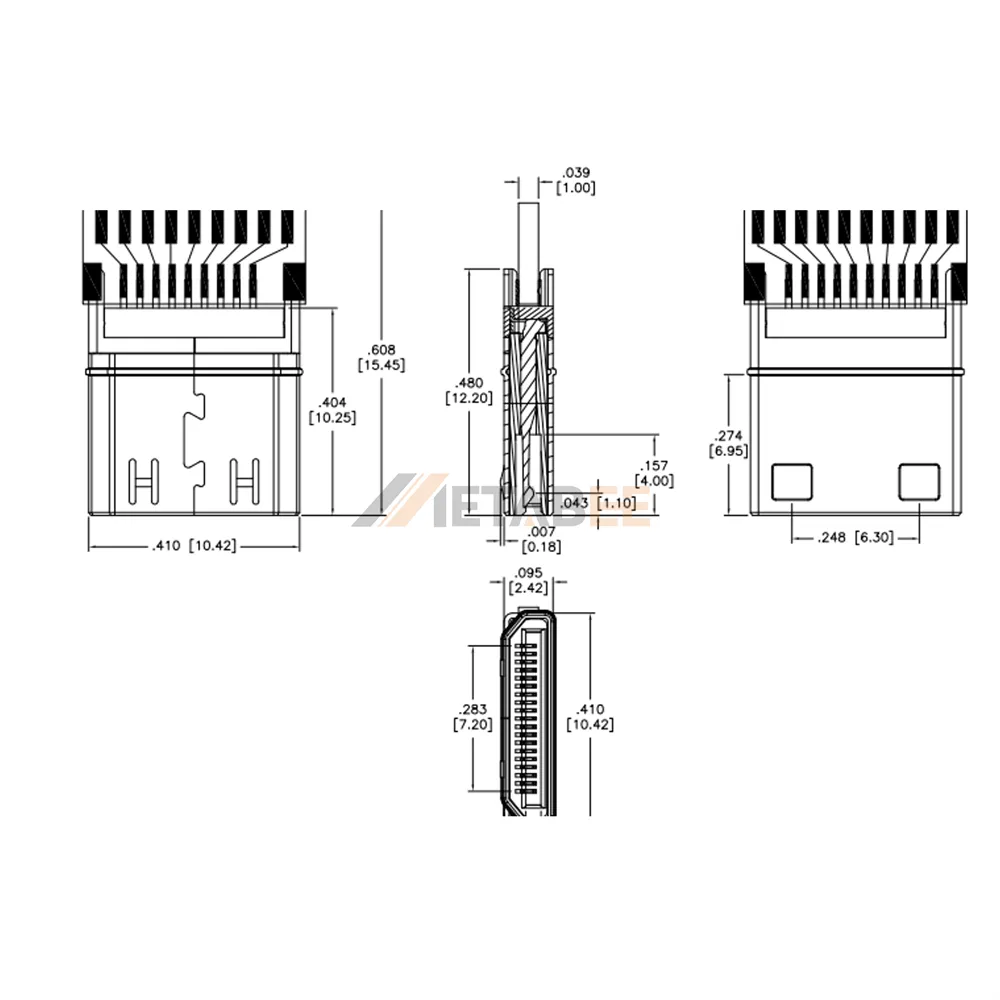

Mini HDMI Type C Male Connector, Solder Type, Over Molding Type
Introduction:
This high-performance Mini HDMI Type C male connector is engineered for superior digital audio and video transmission in custom cable assemblies. Featuring a standard 19-pin single-port plug configuration, it delivers uncompromised high-speed signal integrity and seamless connectivity. The straight mounting orientation combined with a solder-type termination provides secure, reliable electrical contacts, making it ideal for compact audiovisual devices and high-definition multimedia setups.
Designed for robust durability, this connector features an over-molding construction that offers outstanding strain relief, mechanical stability, and environmental protection. Built with flame-retardant materials compliant with the UL94V-0 safety standard, it ensures maximum operating safety under demanding conditions. With a rated current of 0.5A and a rated voltage of 40V, along with a wide operational temperature range of -55°C to 85°C, it is an optimal choice for digital cameras, camcorders, portable monitors, and industrial equipment.
Key Features
- Interface type: Mini HDMI Type C 19-pin male plug.
- Mounting design: Straight orientation with solder-type termination.
- Cable protection: Over-molding construction for superior strain relief and durability.
- Electrical ratings: 0.5A rated current and 40V rated voltage.
- Flame resistance: UL94V-0 certified housing for enhanced operating safety.
- Temperature tolerance: Wide operating range from -55°C to 85°C.
Main Specifications:
General Information:
| Product No.: | MHDMI-PLUG-OM3 | |
| Connector Series: | Mini HDMI Connectors | |
| Connector Type: | Type C | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Plug | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Straight | |
| Mounting Method: | N/A | |
| Mounting Feature: | N/A | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this Mini HDMI Type C Male Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
