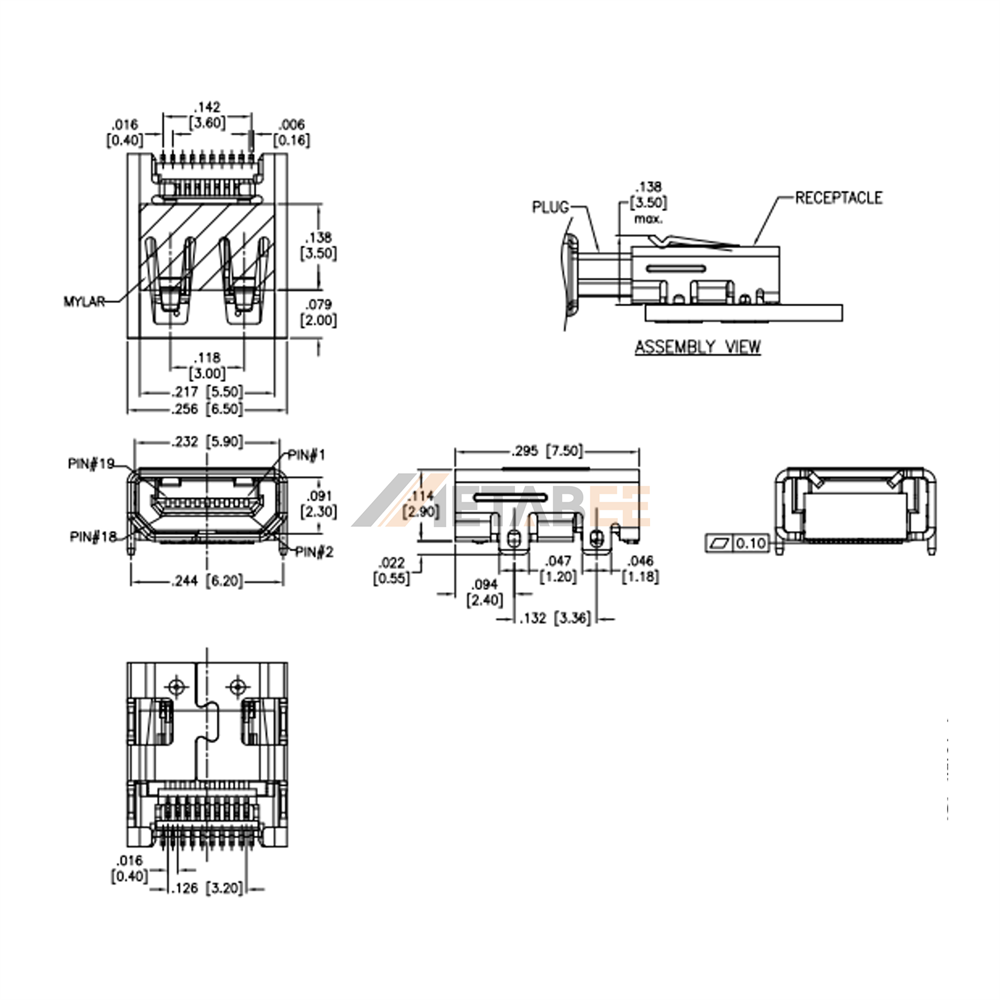

Micro HDMI Type D Female Connector for PCB, SMT, R/A
Introduction:
The Micro HDMI Type D female connector provides high-speed digital audio and video transmission in an ultra-compact form factor designed specifically for dense PCB layouts. Featuring a 19-pin single-port configuration with surface mount technology (SMT) and a right-angle orientation, this receptacle enables robust horizontal board mounting while saving critical vertical clearance in slim electronic designs.
Built for reliable performance in demanding environments, this connector features a high-temperature thermoplastic housing with a UL94V-0 flammability rating and an operating temperature range of -55°C to 85°C. It supports standard electrical loads with an operational rating of 0.5A and 40V, ensuring signal integrity for compact consumer electronics, embedded systems, medical devices, and portable multimedia hardware.
Key Features
- Standard Type D interface: Features a 19-pin single-port Micro HDMI female receptacle for high-definition multimedia signals.
- Surface mount design: SMT contacts deliver secure solder joint reliability and streamlined automated PCB assembly.
- Right-angle orientation: Low-profile 90-degree horizontal mounting minimizes board height and maximizes enclosure space.
- Stable electrical ratings: Rated for 0.5A current and 40V voltage to ensure consistent power and data delivery.
- UL94V-0 fire resistance: Manufactured with flame-retardant housing materials for enhanced product safety and compliance.
- Wide operating temperature: Performs reliably across an industrial temperature range from -55°C to 85°C.
Main Specifications:
General Information:
| Product No.: | MCHDMI-S-RA-2-SMT-KT-TR | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type D | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this Micro HDMI Type D Female Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
