Introduction:
High-speed Gigabit networks operate smoothly using the unshielded RJ45 with magnetics, explicitly designed for standard 1G Base-T applications. A durable black LCP hi-temp thermoplastic insulator forms the robust housing, easily withstanding demanding assembly processes and 0°C to 70°C commercial temperatures. Strict mechanical stability on the printed circuit board depends on a secure board lock integrated directly into the right-angle, through-hole architecture. Clear visual link activity monitoring relies on dual green and green/yellow LEDs positioned flawlessly within the tab-up profile. Furthermore, gold-plated phosphor bronze contacts maintain excellent electrical conductivity to guarantee flawless long-term signal clarity without the need for an external metal shield.
Key Features
- 1G Base-T Speed: Delivers reliable Gigabit Ethernet data transmission flawlessly.
- Unshielded UTP Design: Cost-effective housing operates efficiently without metal shielding.
- LCP Insulation Material: Hi-temp thermoplastic withstands demanding assembly processes securely.
- Integrated Status LEDs: Green and green/yellow lights track exact network activity.
- Enhanced PCB Mounting: Built-in board lock guarantees strict physical stability.
Main Specifications:
General Information:
| Product No.: | MTJ-88SX1-L35-M397Y-HT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | Left: Green, Right: Green/Yellow |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | (LCP) Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

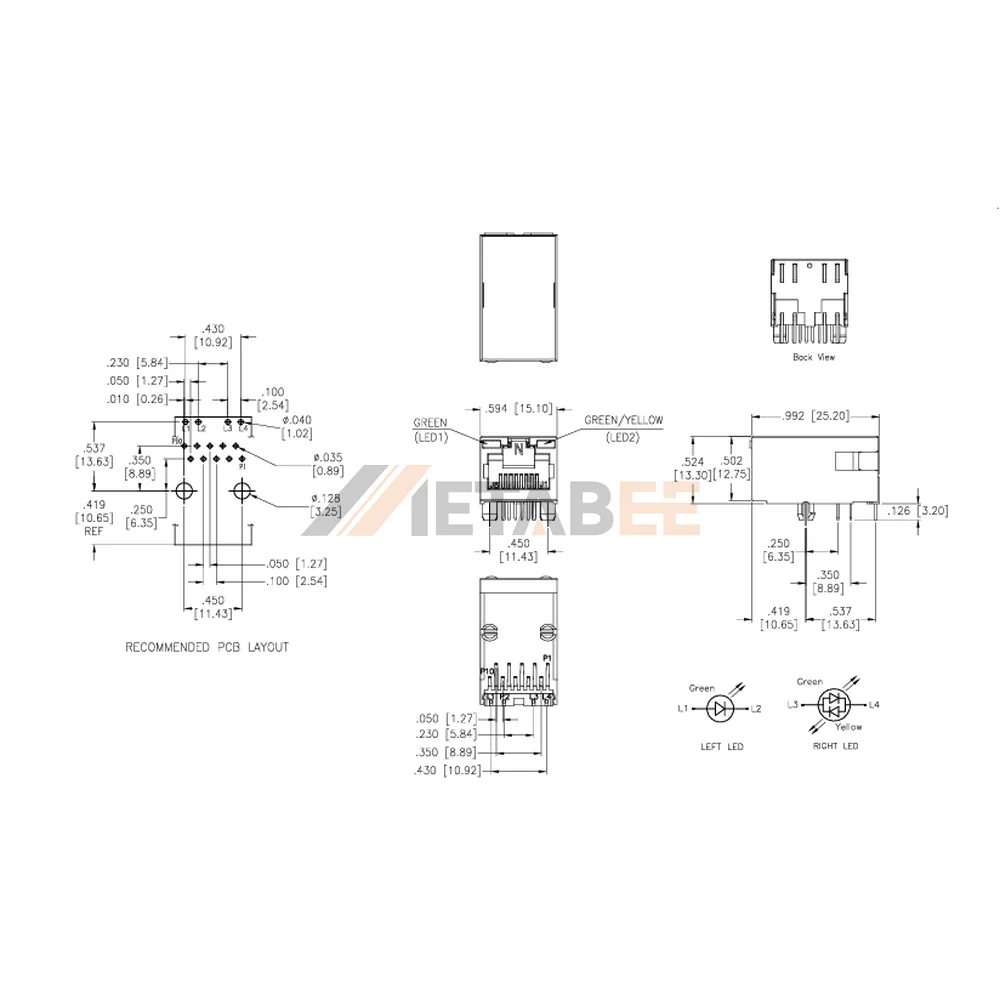

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
