Introduction:
The product is a ganged 1×2 modular network interface designed for high-density voice and data systems. Reliable signal transmission is maintained throughout the extreme -40 °C ~ +125 °C industrial temperature range for severe environments. A robust black PBT insulator houses the two 6P4C ports to ensure mechanical stability for unshielded applications. Precise mechanical alignment on the PCB relies on the right angle THT configuration. Furthermore, gold over nickel plating on phosphor bronze contacts strictly maintains electrical resistance below 20 miliohms. Visual indicators are excluded for this streamlined tab-up profile. Modern security intercoms, professional telecommunication handsets, and industrial control equipment frequently utilize this UTP RJ11 dual port black jack.
Key Features
- Ganged 1×2 Configuration: Facilitates two side-by-side RJ11 network ports efficiently.
- Industrial Temperature Range: Operates reliably from -40C up to +125C.
- Unshielded UTP Design: Simplifies board layout for cost-effective networking systems.
- Low Resistance Contacts: Gold plating ensures conductivity below 20 miliohms.
- Secure THT Mounting: Ensures stable right angle mechanical PCB alignment.
Main Specifications:
General Information:
| Product No.: | MTJG-X-642BX1 | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P4C | |
| Number of Ports: | 1×2 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Ganged | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Housing Material: | Glass filed Polyester | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40°C to +125°C | |
| Flammability Rating: | UL 94 V-0 |

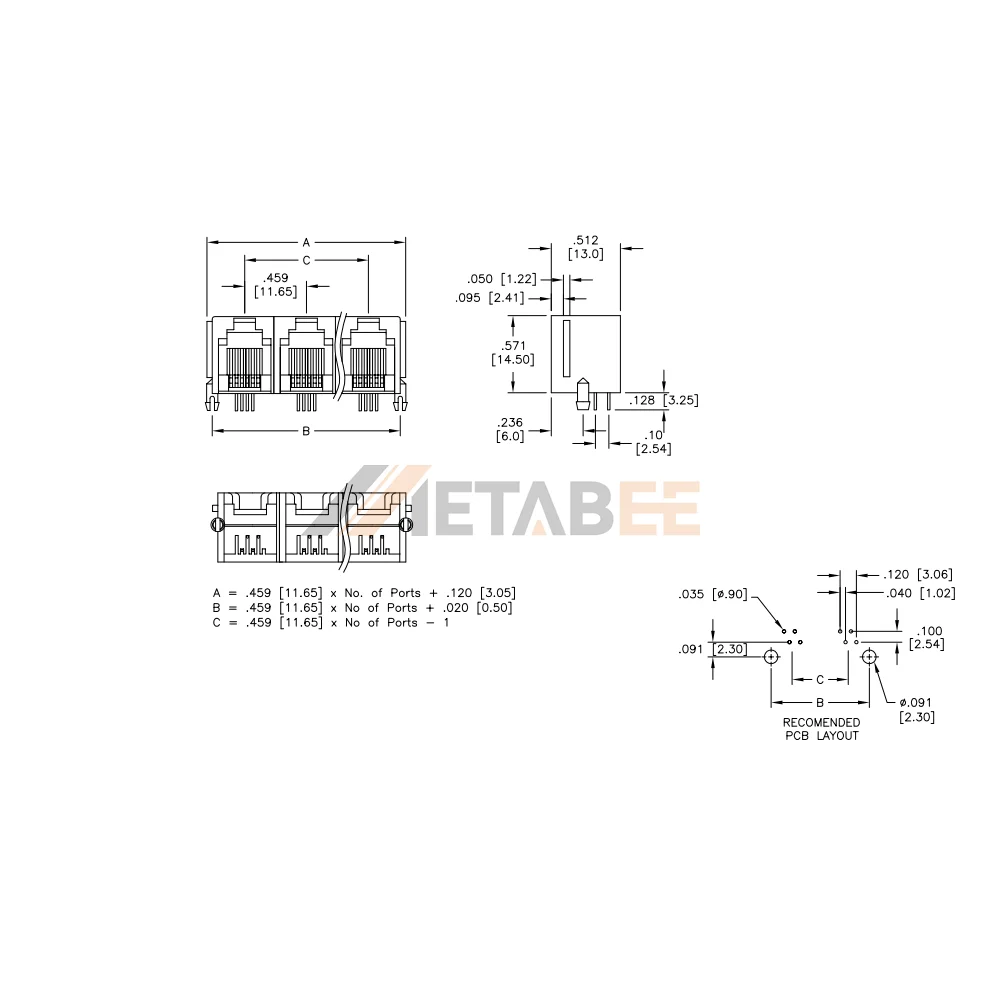

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
