Introduction:
The 2×8 RJ45 multiple-port socket connector is a high-density network interface designed for large-scale data transmission systems. Sixteen side-by-side ports are integrated into a vertically stacked profile to save significant space on the circuit board. Robust performance is maintained across an extreme industrial temperature range from -40C up to +85C. A nickel plated brass shield encloses the black glass filled polyester housing to block electromagnetic interference effectively. Precise component positioning on the PCB relies on the right angle through hole termination design. Gold over nickel plating on phosphor bronze contacts strictly maintains electrical resistance below 30 miliohms. Enterprise server hubs, network switches, and industrial routers frequently utilize this 16-port module.
Key Features
- Stacked 2×8 Configuration: Facilitates sixteen Ethernet links in one vertical module.
- Industrial Temperature Range: Operates reliably between -40C and +85C.
- Full Brass Shielding: Nickel plated housing blocks severe EMI noise.
- Glass Filled Polyester: Ensures high mechanical stability during soldering.
- Low Resistance Contacts: Gold plating ensures conductivity below 30 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-16-88JX1-FSG-PG | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×8 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Stacked | |
| Latch Direction: | Up & Down | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 125VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Housing Material: | Glass filed Polyester | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

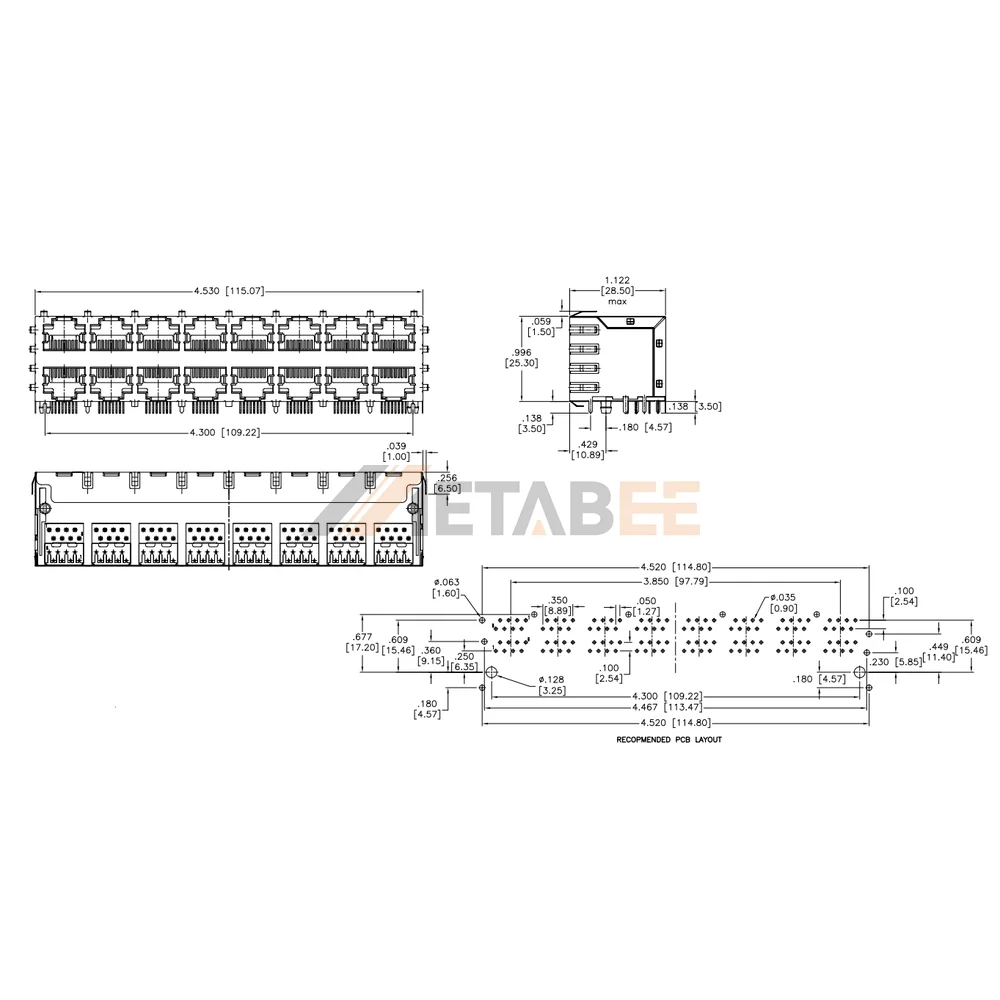

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
