Introduction:

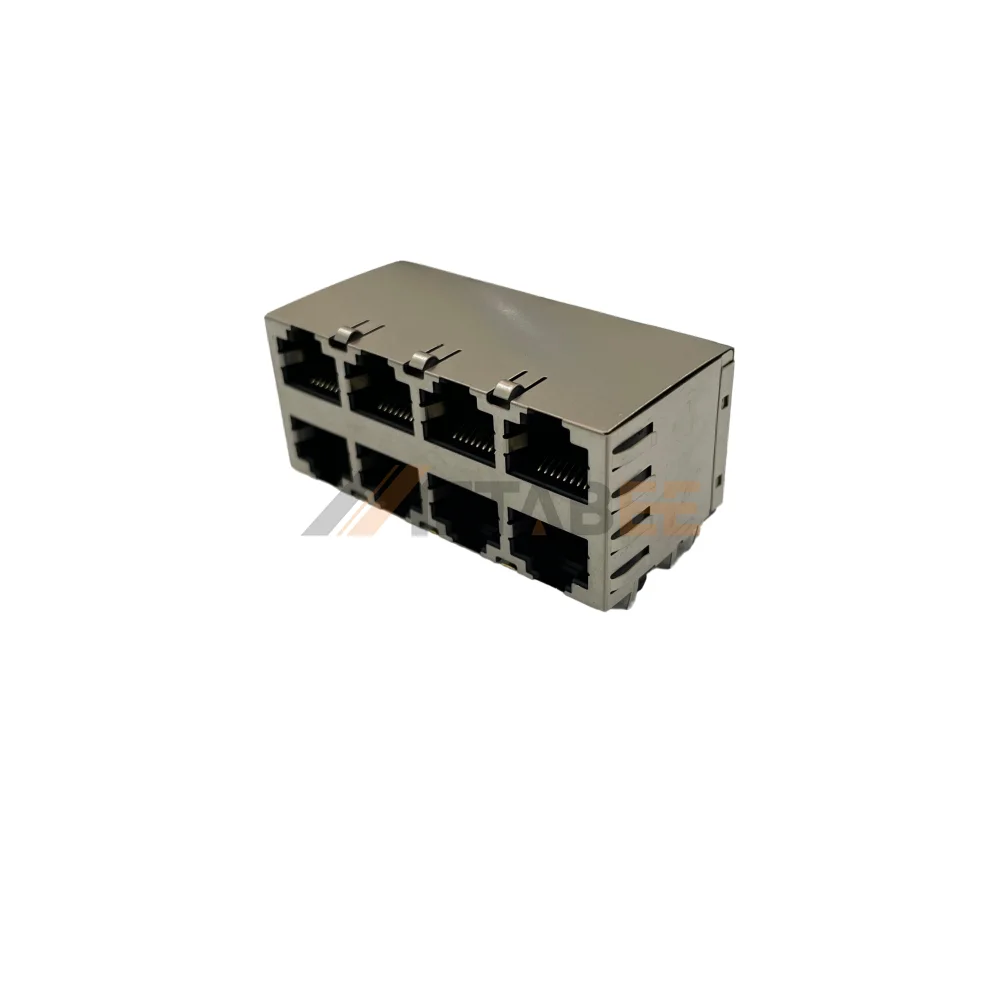

High-density networking setups benefit from these multiple RJ45 sockets, which provide eight side-by-side 8P8C ports in a compact 2×4 stacked layout. Reliable data transmission is supported for standard network applications without the need for visual LED indicators. Exceptional industrial resilience is maintained throughout the wide -40 to +85 degrees Celsius temperature range. A robust nickel plated brass shield encloses the black PBT insulator to reject electromagnetic interference effectively. Secure mechanical bond to the PCB depends on the right angle through hole termination design. Furthermore, gold over nickel plating on phosphor bronze contacts strictly maintains electrical resistance below 20 miliohms. These specialized modules are ideal for network switches, server hubs, and industrial automation equipment.
Key Features
- 8-Port Stacked Design: Facilitates connection of eight Ethernet links side-by-side.
- Industrial Temperature Range: Operates reliably between -40 and +85 degrees Celsius.
- Full Metal Shielding: Brass housing blocks severe electromagnetic interference.
- Durable PBT Insulator: Ensures high mechanical stability for PCB integration.
- Low Contact Resistance: Gold plating ensures conductivity below 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-8-88JX1-FSG-PG | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×4 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Stacked | |
| Latch Direction: | Up & Down | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
