Introduction:

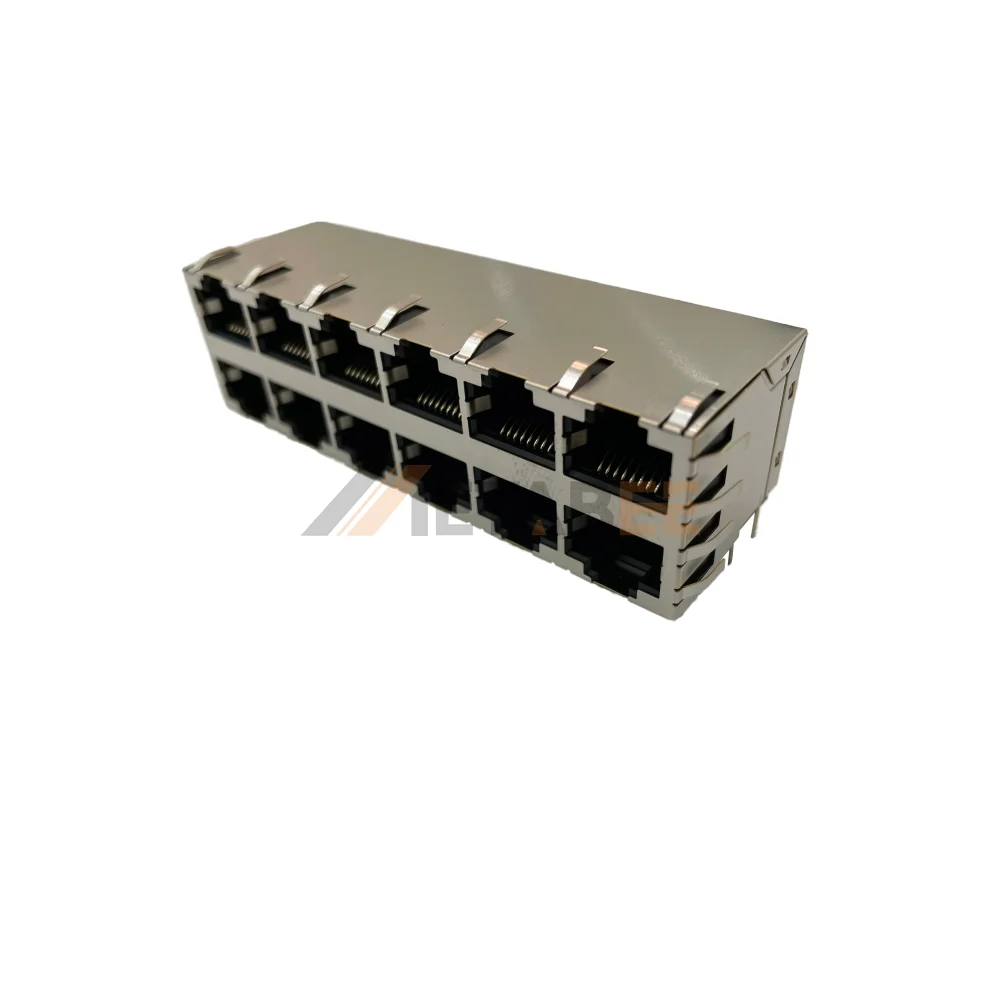

Twelve network connections are integrated into a single compact housing in this ganged 2×6 modular Ethernet network interface. High-performance data transmission is supported by every port within the industrial -40C up to +85C temperature range. A robust nickel plated copper alloy shield encloses the black PA66 insulator to block EMI effectively. Secure mechanical alignment onto the PCB depends on the right angle THT termination design. Furthermore, gold over nickel plating on phosphor bronze contacts strictly maintains electrical resistance below 20 miliohms for long-term signal clarity. This streamlined no LED profile is ideal for large-scale network switches, server clusters, and industrial communication racks.
Key Features
- Stacked 2×6 Design: Connects twelve network devices in one module.
- Industrial Temperature Range: Operates flawlessly between -40C and +85C.
- Full Metal Shielding: Blocks severe EMI noise for signals.
- Low Contact Resistance: Gold plating ensures conductivity below 20 miliohms.
- Stable THT Mounting: Right angle termination ensure secure PCB alignment.
Main Specifications:
General Information:
| Product No.: | MTJG-12-88JX1-FSG-PG | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×6 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Stacked | |
| Latch Direction: | Up & Down | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Housing Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
