Introduction:

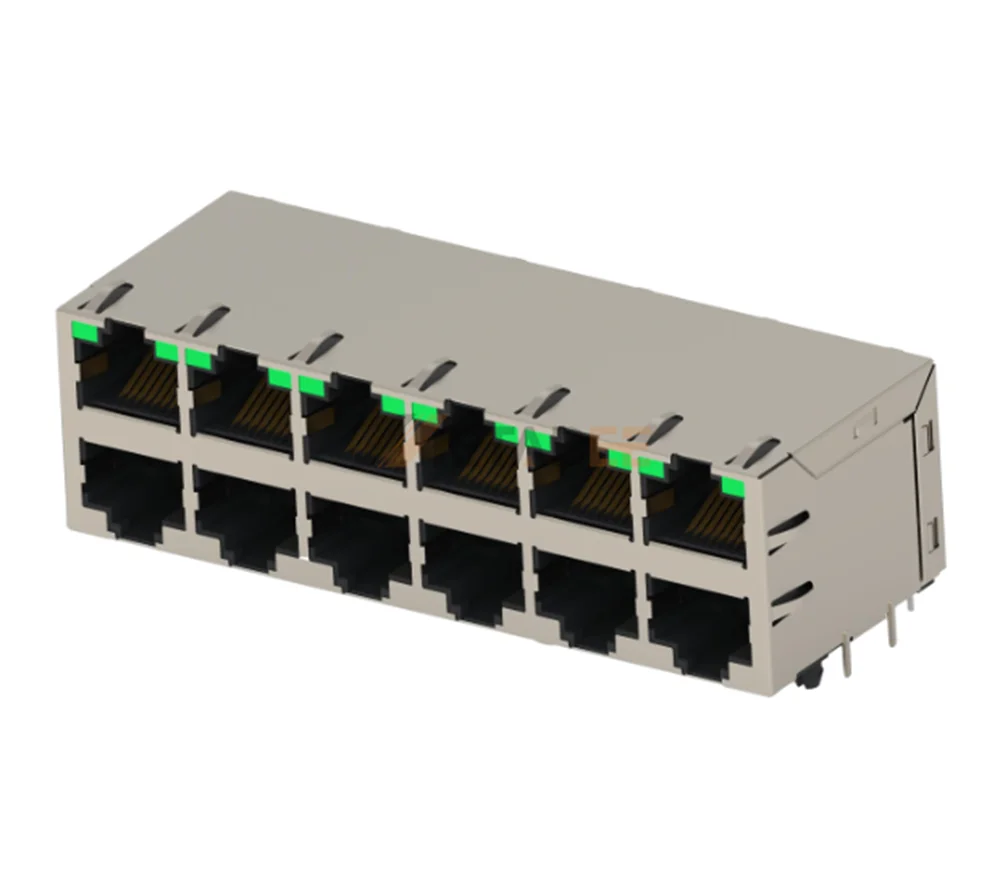

The stacked RJ45 jack is a high-density 2×6 modular interface merging twelve ports into a single vertical footprint for high-capacity networking equipment. Reliable data transmission occurs through twelve 8P8C interfaces with a 150VAC maximum voltage rating. Consistent performance is maintained throughout the industrial -40C to +85C temperature range for rugged environments. A robust nickel plated copper alloy shield encloses the Nylon 46 and PBT housing to block electromagnetic interference effectively. Precise component alignment on the PCB depends on the right angle through hole termination configuration. Visual link status relies on integrated green LED indicators positioned within the up and down profile. Furthermore, gold plated phosphor bronze contacts strictly maintain electrical resistance below 20 miliohms in this stacked RJ45 jack. These connectors are ideal for large-scale network switches, server hubs, and industrial communication racks.
Key Features
- Stacked 2×6 Design: Connects twelve network devices using a single module.
- Industrial Temperature Range: Operates reliably between -40C and +85C.
- Full Metal Shielding: Blocks severe electromagnetic interference for signals.
- Integrated Green LEDs: Built-in indicators track precise link activity.
- Low Resistance Contacts: Gold plating ensures conductivity below 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-12-88JX1-FSH-PG-LD-Y | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×6 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Stacked | |
| Latch Direction: | Up & Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1500 Vrms for 1 minute |
Materials and Plating:
| Housing Material: | Botton: Nylon46 Top : PBT, Glass reinforced | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
