Introduction:
The multiport rj45 is a high-density 2×2 stacked network interface designed for advanced industrial Ethernet systems. Reliable data transmission is maintained through four separate 8P8C ports to ensure consistent connectivity. Exceptional industrial resilience is sustained throughout the wide -40C ~ +85C temperature range for severe environments. A robust nickel plated brass shield encloses the black PBT insulator to reject electromagnetic interference effectively. Visual link tracking relies on built-in green-yellow and green LED indicators positioned within the stacked profile. Furthermore, gold over nickel plating on phosphor bronze contacts strictly maintains electrical resistance below 20 miliohms. Secure board integration relies on the right angle through hole termination design. Networking switches, server hubs, and industrial automation controllers frequently utilize this multiport rj45 to optimize board space.
Key Features
- 2×2 Stacked Design: Facilitates connection of four network devices side-by-side.
- Industrial Temperature Range: Operates reliably between -40C and +85C environment.
- Full Brass Shielding: Blocks severe electromagnetic interference for clear signals.
- Integrated Status LEDs: Dual-color indicators track precise link and activity.
- Low Resistance Contacts: Gold plating ensures conductivity below 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-4-88JX1-FS-PG-LV | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×2 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Stacked | |
| Latch Direction: | Up & Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow/Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

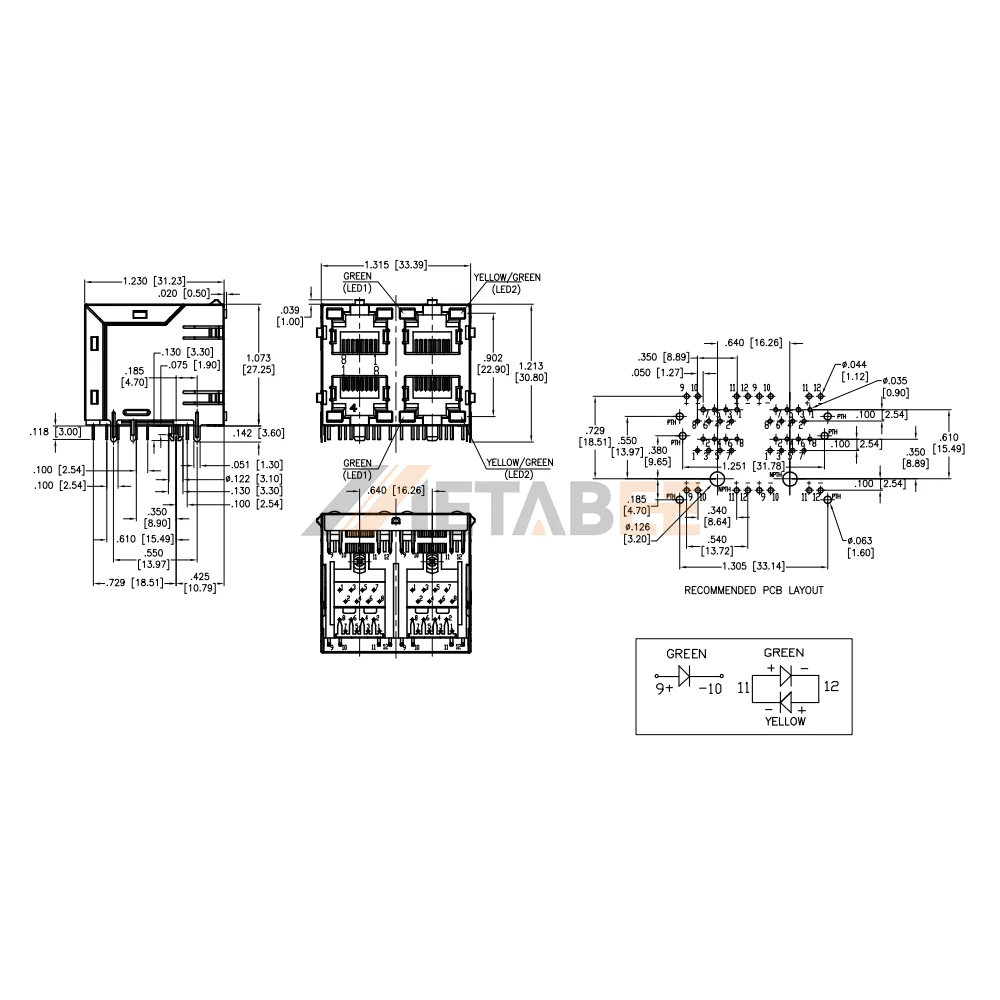

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
