Introduction:
This product is a high-density 2×4 stacked network interface designed for high-capacity Ethernet communication systems. Eight individual 8P8C ports provide reliable side-by-side connectivity in a compact ganged configuration. Reliable operation is maintained across a wide industrial temperature range from -40C up to +85C to suit severe environments. A robust nickel plated brass shield encloses the black PBT housing to reject electromagnetic interference effectively. Visual link monitoring relies on built-in yellow and green LED indicators positioned in the tab-up and down profile. Furthermore, gold over nickel plating on phosphor bronze contacts strictly maintains electrical resistance below 20 miliohms. Secure mechanical alignment onto the PCB depends on the right angle through hole termination. Modern server hubs, networking switches, and industrial routers frequently utilize these multiple panel RJ45 sockets.
Key Features
- Stacked 2×4 Design: Facilitates eight side-by-side network connections vertically.
- Industrial Temperature Range: Operates reliably between -40C and 85C environment.
- Full Brass Shielding: Blocks severe electromagnetic interference for clear signals.
- Low Resistance Contacts: Gold plating ensures conductivity below 20 miliohms.
- Secure THT Mounting: Ensures precise and stable mechanical board retention.
Main Specifications:
General Information:
| Product No.: | MTJG-8-88JX1-FST-PG-LG | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×4 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Stacked | |
| Latch Direction: | Up & Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 125VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

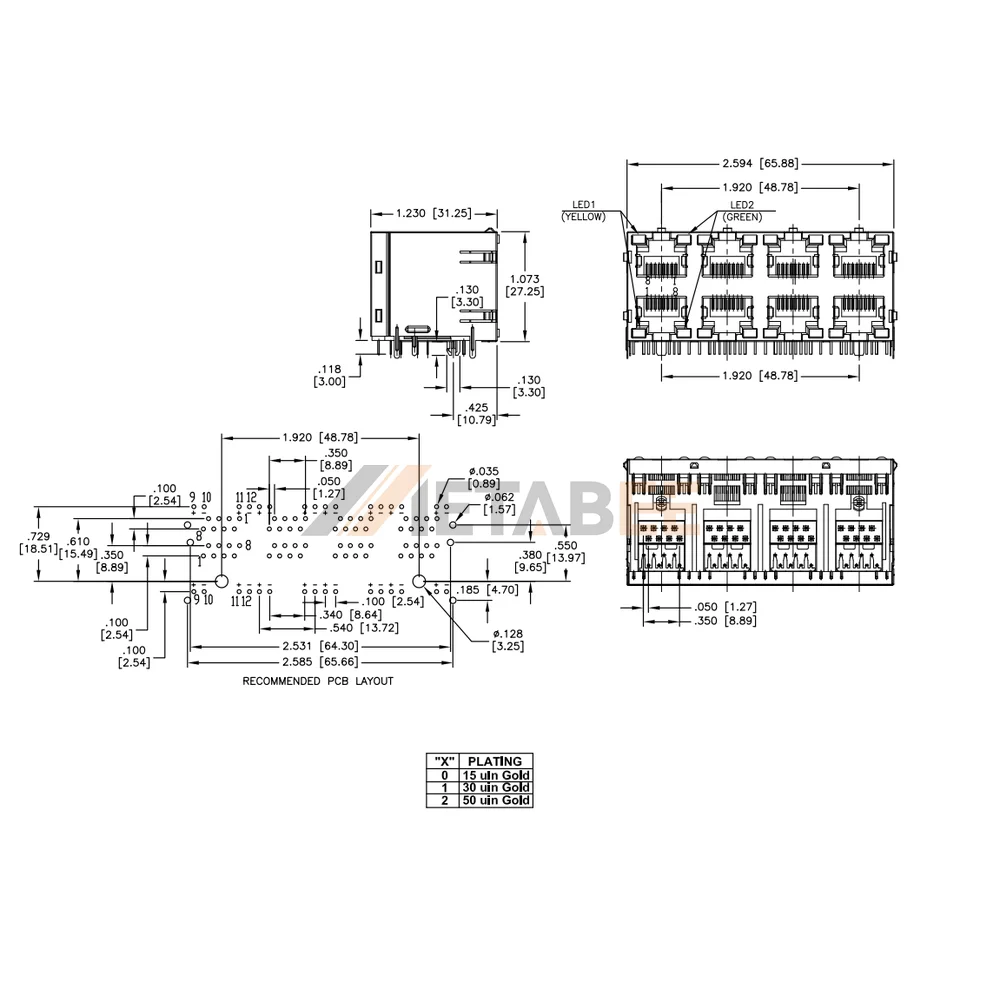

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
