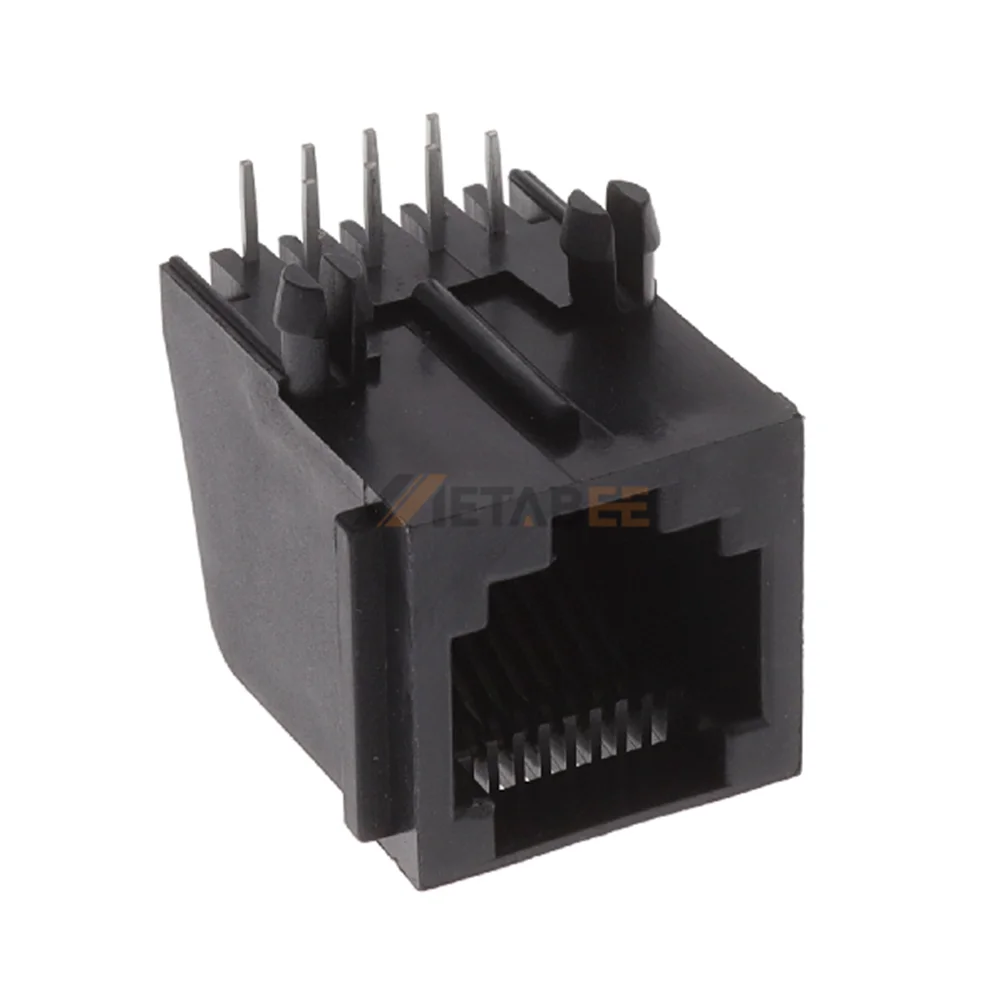

UTP One Port RJ45 Modular Jack Connector, 8P8C, Unshielded, Tab-Down, Through Hole, R/A, No LED
Introduction:
This is an unshielded one port RJ45 modular jack connector built for reliable through hole mounting on printed circuit boards. It features a durable black PBT housing that maintains a high insulation resistance of 1000MΩ across a wide temperature range of -40°C to +85°C. The Phosphor Bronze contacts are finished with Gold over Nickel plating to ensure excellent conductivity and a 1.5A current rating. By using a Tab-Down right angle orientation, this component optimizes vertical clearance while providing a stable mechanical attachment. The jack effectively withstands 1000 VDC peak voltage to ensure safe electrical operation in standard networking environments. Technicians utilize this modular interface for steady data transmission in telecommunication hardware and office networking equipment.
Key Features
- 8P8C RJ45 Interface: Provides standard modular connectivity for networking systems.
- Gold Plated Contacts: Delivers superior conductivity and lasting oxidation resistance.
- Tab-Down Configuration: Optimizes vertical space for compact PCB layouts.
- PBT Housing Material: Ensures stable performance within -40°C to +85°C.
- High Insulation Resistance: Maintains 1000MΩ for enhanced electrical safety.
Main Specifications:
General Information:
| Product No.: | MTJ-881X1 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Housing Material: | PBT | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
