Introduction:
This magnetic charging cable is a 500mm flat wire assembly designed for efficient 5V power links. It features a 2 pin rounded rectangular magnetic head that enables automatic self-alignment for effortless connectivity. The brass contacts are finished with 3u” Gold plating over nickel to maintain a low contact resistance of 20 mohms. With a 0.8mm working stroke and a tested lifespan of 10,000 cycles, it ensures reliable daily performance. This assembly functions as a secure charging interface for smart wearables and compact handheld devices requiring a quick-release magnetic port.
Key Features
- Magnetic Connection: Magnetic head enables automatic self-aligning charging links.
- Flat Cable: Flexible 500mm flat wire prevents tangling during use.
- Durable Plating: 3u” Gold plating prevents brass contact oxidation.
- Reliable Life: Tested for 10,000 cycles ensuring long mechanical durability.
- Stable Power: Supports 1A current for efficient 5V device charging.
Main Specifications:
General Information:

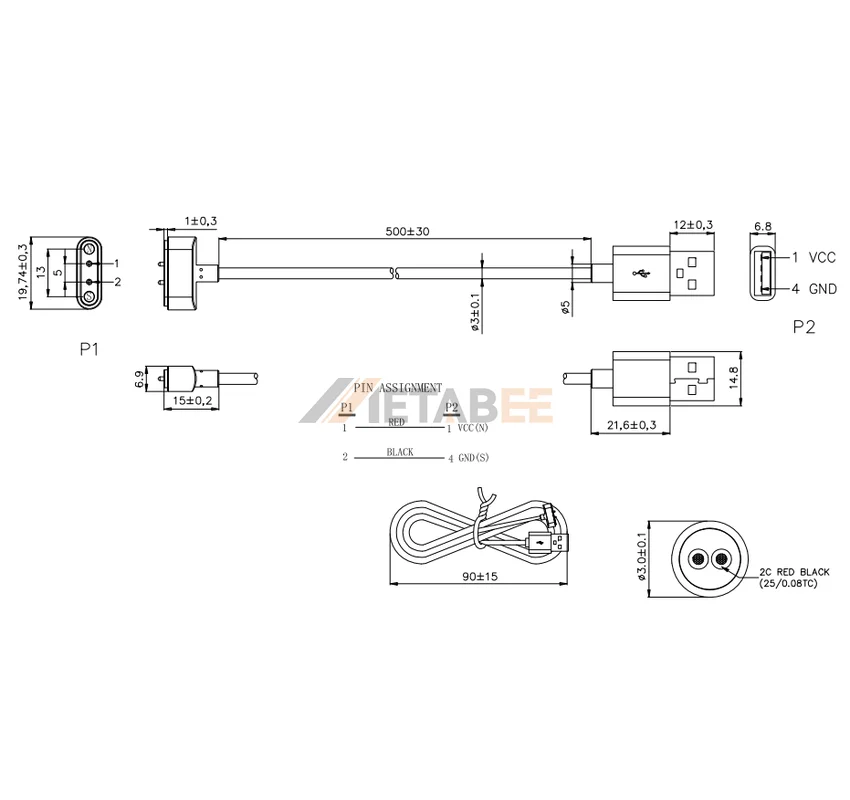

| Product No.: | CA-ST2-PH1-566-M | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 2 | |
| Connector 2-Shape: | Rounded Rectangular | |
| Connector 2-Orientation: | Straight | |
| Contact Material: | Brass | |
| Contact Plating: | 3u” Gold plated over Nickel | |
| Cable Type: | Flat Cable | |
| Wire Gauge: | 25/0.08TS | |
| Cable Length: | 500±30 mm | |
| Jacket Material & Color: | PVC, Black |
Electrical:
| Rated Current: | 1A Max | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | 20 mohms max | |
| Insulation Resistance: | 10MΩ min | |
| Dielectric Withstanding Voltage: | N/A |
Mechanical:
| Contact Force: | 70gf max | |
| Working Stroke: | 0.8mm | |
| Full Stroke: | N/A | |
| Durability: | 10,000 cycles |
Environmental:
| Operating Temperature: | -30°C to +80°C | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
