Introduction:
This straight 6-pin female magnetic pogo pin connector provides a reliable, self-locating interface for 5V DC power and signal transmission up to 2A. Featuring a wide 6.00 mm pitch and a rounded rectangular profile, it ensures ample electrical clearance between pins to prevent short circuits. The precision brass contacts feature 3u” gold plating over nickel for low contact resistance and long-term corrosion resistance, while the high-grade PA46 insulator withstands operating temperatures from -30°C to +85°C. Built with N35 zinc-plated magnets for automatic polarized alignment, it delivers effortless blind mating and clean detachment for charging docks, test fixtures, and smart handheld terminals.
Key Features
- N35 Magnetic Alignment: Built-in N35 magnets ensure quick and precise self-mating.
- 2A / 5V DC Rating: Supports reliable low-voltage power supply and signal transfer.
- 6.00mm Wide Pitch: Wide pin spacing reduces electrical interference and shorting.
- Gold-Plated Brass Contacts: 3u” gold plating provides superior conductivity and durability.
- Robust PA46 Housing: High-grade polymer withstands temperatures from -30°C to +85°C.
Main Specifications:
General Information:
| Product No.: | PH2-C670-06-FVP-7094 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 6 Pin | |
| Connector Gender: | Female | |
| Connector Shape: | Rounded Rectangular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | 6.0mm | |
| Working Stroke (mm): | N/A | |
| Life Test: | N/A |
Electrical:
| Rated Current: | 2A max | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | N/A |
Materials and Plating:
| Insulator Material: | PA46 | |
| Insulator Color: | Black | |
| Contact Material: | Brass | |
| contact plating: | N/A | |
| Spring Material: | N/A | |
| Magnet: | N35, Zinc plated |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

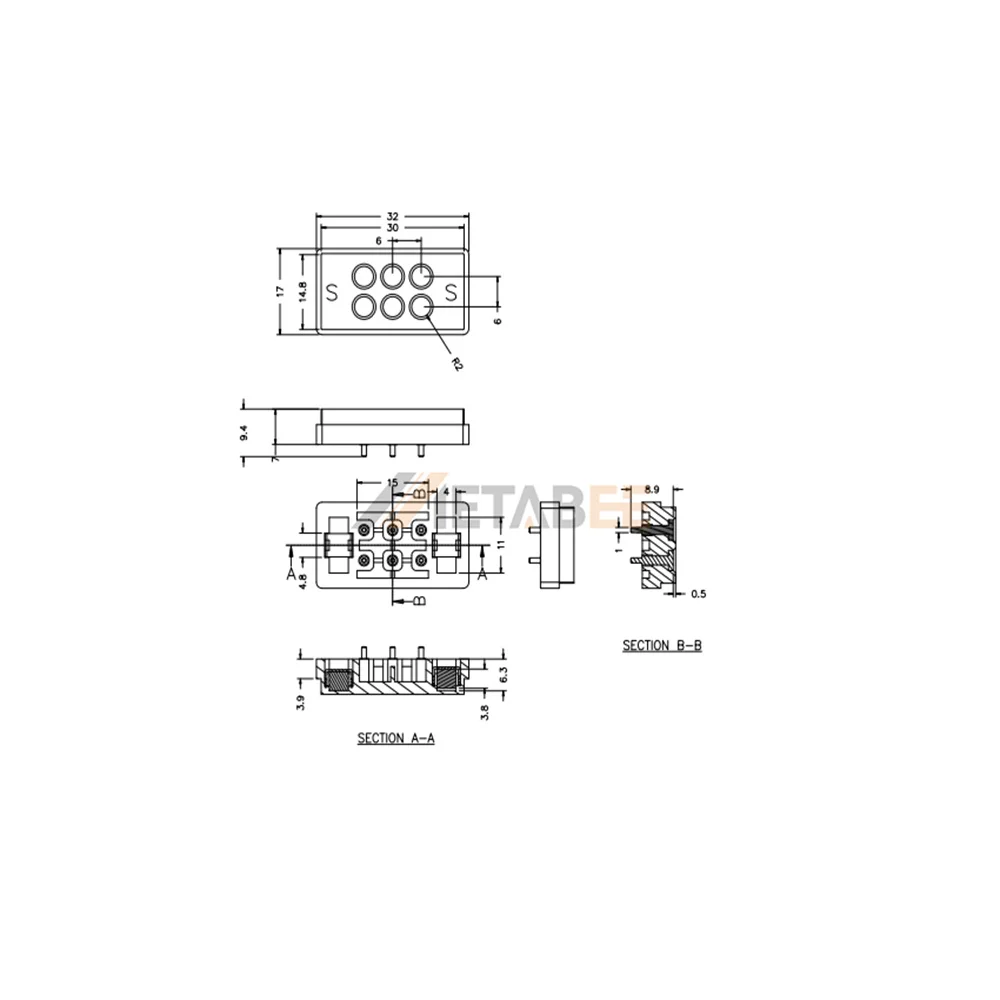

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
