Introduction:
This pogo pin charger cable is a high-performance power solution for modern smart devices. It features a magnetic 4-pin interface with 5u” Gold plating to ensure stable electrical conductivity. The right angle connector utilizes a rounded rectangular shape to save space in compact housings. Supporting a 2A maximum current and 5V DC rating, the 1000mm TPE cable provides efficient charging. It offers exceptional mechanical durability with a tested lifespan of 10,000 cycles. This assembly serves as a convenient charging link for wearables and handheld hardware.
Key Features
- Magnetic Connection: Magnetic connection enables easy automatic self-aligning charging.
- Fast Charging: Supports 2A high current for efficient power delivery.
- Gold Plated: Premium 5u” Gold contacts prevent oxidation and corrosion.
- Space Saving: Right angle design optimizes tight device charging layouts.
- Durability: Tested for 10,000 cycles ensuring long-term mechanical life.

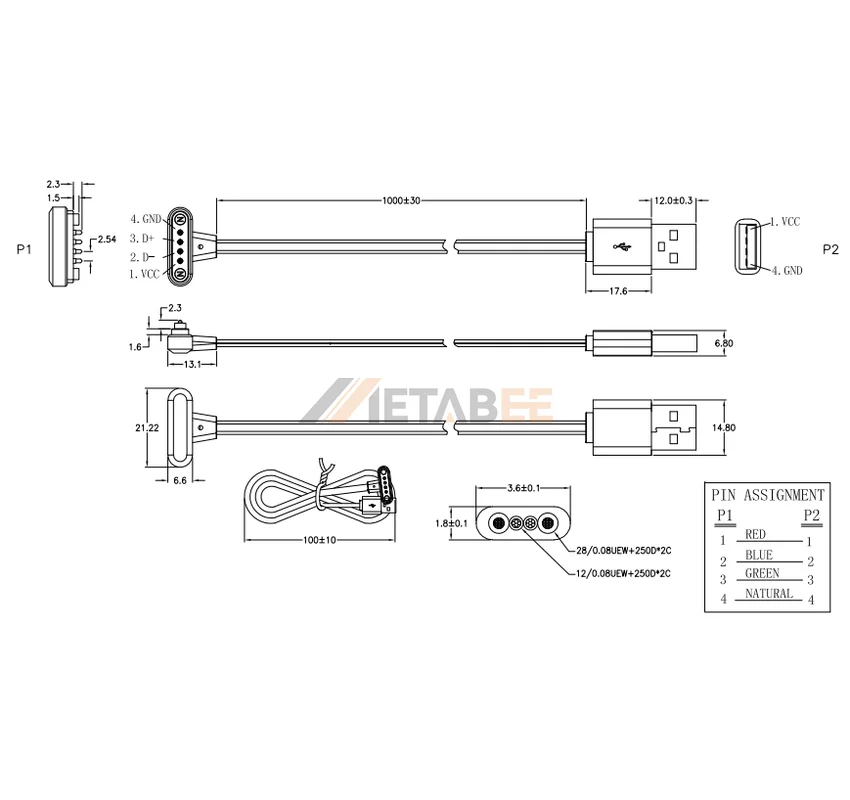

Main Specifications:
General Information:
| Product No.: | CA-RA4-PH1-365-M2 | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 4 | |
| Connector 2-Shape: | Rounded Rectangular | |
| Connector 2-Orientation: | Right Angle | |
| Contact Material: | N/A | |
| Contact Plating: | Gold flash plated | |
| Cable Type: | Round Cable | |
| Wire Gauge: | 26AWG+30AWG | |
| Cable Length: | 1000±30 mm | |
| Jacket Material & Color: | 65A TPE, Black |
Electrical:
| Rated Current: | 2A Max | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | 2 Ω max | |
| Insulation Resistance: | 10 Mohms min | |
| Dielectric Withstanding Voltage: | N/A |
Mechanical:
| Contact Force: | 60gf max | |
| Working Stroke: | 0.6mm | |
| Full Stroke: | N/A | |
| Durability: | 10,000 cycles min |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
