Introduction:
This is a 5 pin female pogo magnetic connector designed for efficient right angle attachment in compact electronic systems. It features a 2.5mm pitch and is constructed with a high-temperature LCP insulator that effectively withstands up to 265°C during assembly. The Brass contacts utilize a 3u” Gold plating over Nickel finish to provide low resistance and lasting conductivity across a temperature range of -30°C to +85°C. With a 3A current rating at 12V DC, this rectangular component ensures high-performance power delivery for various docking applications. Technicians utilize this modular interface for smart handheld devices and portable medical hardware requiring reliable self-mating connectivity.
Key Features
- 3A High Current: Supports fast charging and reliable power delivery.
- Magnetic Alignment: Ensures easy and secure self-mating connections.
- 2.5mm Pitch: Features a standard five-pin layout for compact boards.
- Right Angle Mounting: Optimizes vertical space for slim hardware designs.
- LCP Housing: Withstands high temperatures during industrial soldering processes.
Main Specifications:
General Information:
| Product No.: | PH1-C2535-05-FHP-52 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 5 Pin | |
| Connector Gender: | Female | |
| Connector Shape: | Rectangular | |
| Mounting Orientation: | Right Angle | |
| Pitch(mm): | 2.5mm | |
| Working Stroke (mm): | N/A | |
| Life Test: | N/A |
Electrical:
| Rated Current: | 3A max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | N/A |
Materials and Plating:
| Insulator Material: | LCP 265°max | |
| Insulator Color: | N/A | |
| Contact Material: | Brass | |
| contact plating: | 3u” Gold plated over Nickel | |
| Spring Material: | SUS | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

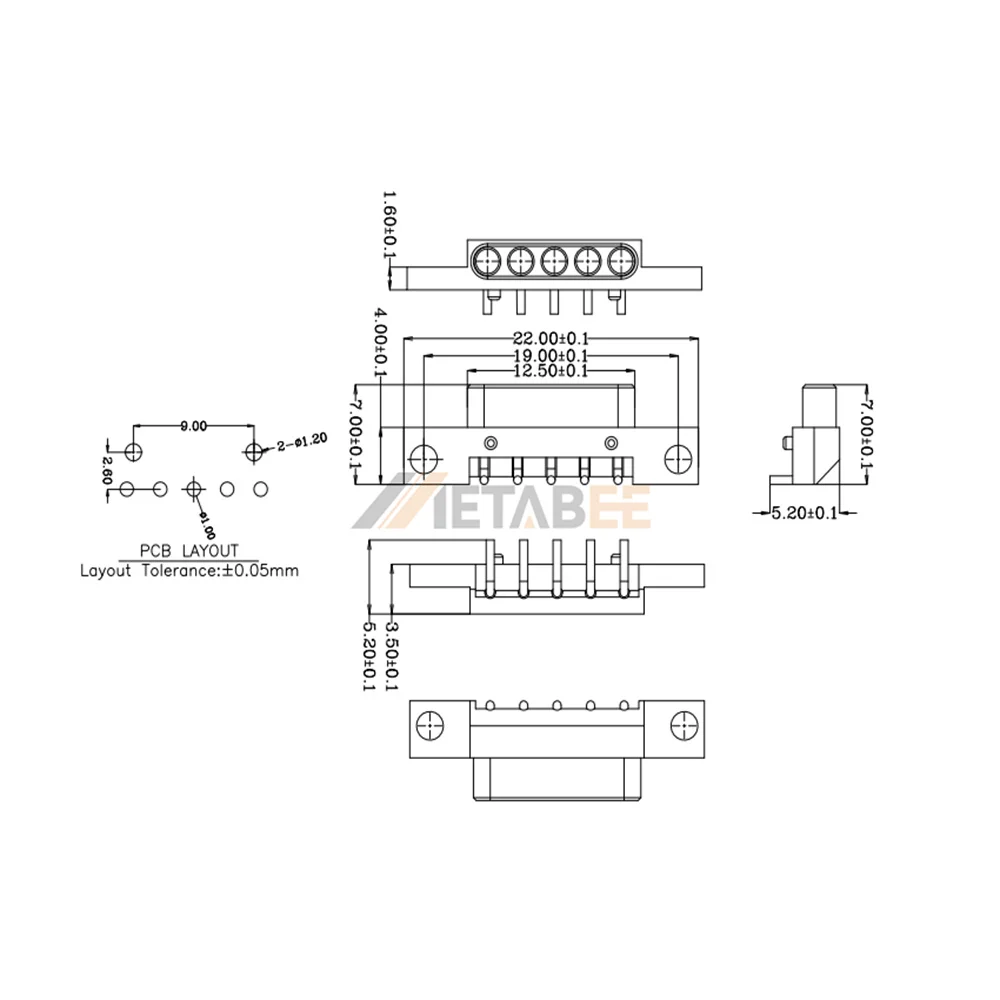

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
